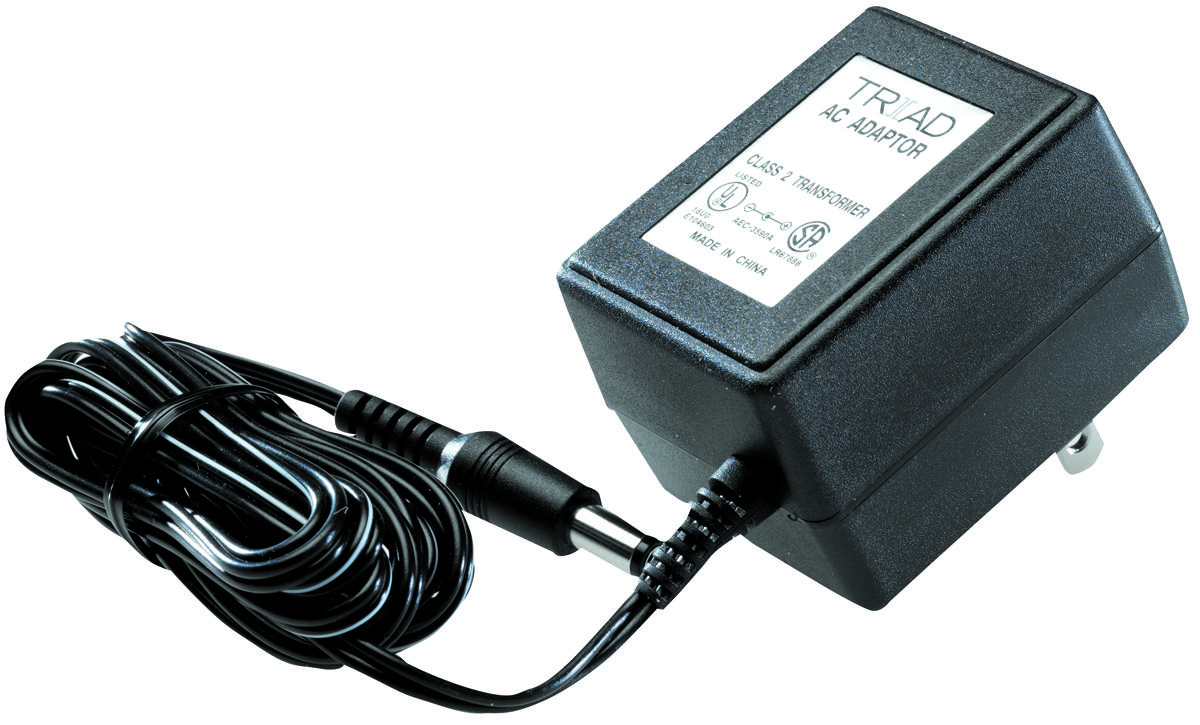

TRIAD MAGNETICS WDU151000 Power Supply
The WDU15-1000 is a reliable 15V DC power supply delivering 24W of power through a compact thermoplastic enclosure. Designed for easy integration, it features a fully enclosed case that minimizes noise, size, and weight while effectively dissipating heat from sensitive circuits. Suitable for applications requiring safe, stable power, it operates in temperatures from -10°C to 40°C. It includes a 24 AWG output cord, Class-B protection with double insulation, and dielectric isolation of 4kVDC for one minute, ensuring compliance and safety for diverse electronic device needs.
TRIAD MAGNETICS WDU151000 Power Supply Specifications:
- Input: 120VAC, 60Hz
- Output Voltage: 15VDC ±5%
- Output Power: 24W
- Output Current: 1000mA
- Ripple Voltage: 1000mV max
- Operating Temperature Range: -10°C to +40°C
- Enclosure Material: Thermoplastic molded
- Output Cord: 24 AWG, 6 ft. long minimum
- Protection: Class B, double insulation, dielectric isolation 4kVDC for 1 min
- Agency Certifications: UL/CUL File E245587, UL 1310
- Temperature Rise: 75°C max at rated load
- Dimensions: Not specified
Buy the Triad Series Power Supply: WDU15-1000
Enhance your electronic projects with the reliable power supplied by the Power Supply WDU15-1000. This compact device features a robust thermoplastic enclosure, ensuring safety and durability while providing a stable 15V DC output at 24W. Its design minimizes noise, size, and heat dissipation issues, making it ideal for various applications. It supports operating temperatures from -10°C to 40°C, includes a 24 AWG output cord, and meets agency safety standards like UL and CUL certifications. Purchase online today for dependable power management in your devices.
Order your Triad Series WDU15-1000 power supply today and ensure your electronic projects run smoothly with reliable, safe power conversion.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WDU151000?
You can click on the BUY or RFQ button to purchase WDU151000 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WDU151000?
You can download the WDU151000 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WDU151000?
TRIAD MAGNETICS
