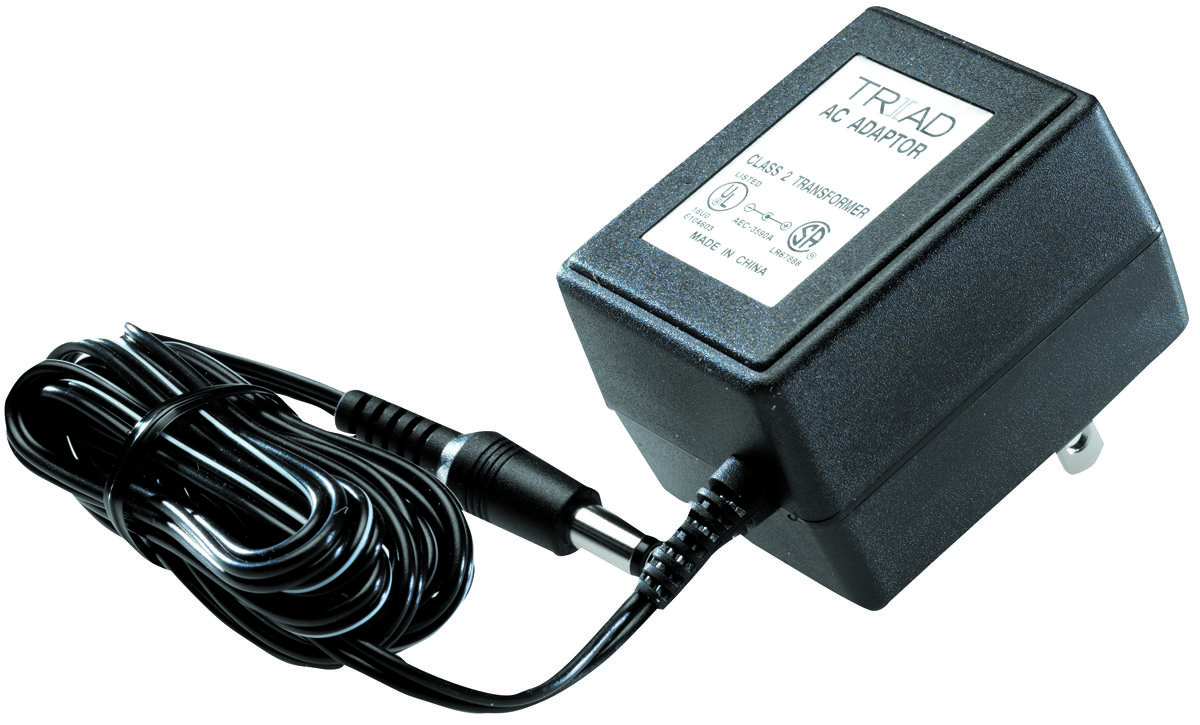

TRIAD MAGNETICS WDU91000 Power Supply Module
The WDU9-1000 is a compact 9V DC, 15.5W wall plug-in power supply designed for reliable power delivery in various electronic devices. Featuring a thermoplastic molded enclosure, it operates safely within -10°C to 40°C, offering double insulation and Class B protection for increased safety. It includes a 6-foot, 24 AWG output cord, utilizes unregulated AC/DC conversion at 60Hz, and meets agency standards such as UL and CUL. Ideal for power management applications, this power supply minimizes heat and noise with its efficient design, providing dielectric isolation of 4kV for one minute, ensuring dependable performance.
TRIAD MAGNETICS WDU91000 Power Supply Module Specifications:
- Input Voltage: 120VAC 60Hz, 15.5W
- Output Voltage: 9VDC ±5%
- Output Current: 1000mA
- Output Ripple Voltage: 900mV Max
- Operating Temperature Range: -10°C to +40°C
- Power Supply Dimensions: Not specified in mm, housed in thermoplastic molded enclosure
- Output Cord: 24 AWG, 6 ft. long
- Insulation: Double insulation, dielectric isolation of 4kV for 1 minute
- Protection: Class B, RoHS compliant
- Agency Certifications: UL, CUL (File E245587, UL 1310)
Buy the Buy Triad Power Supply Part Number WDU9-1000 Online
Enhance your electronic projects with the Triad WDU9-1000 power supply. This 9V, 15.5W power source offers a compact, safe, and highly reliable power solution. Featuring double insulation, UL and CUL certifications, a six-foot output cord, and operation within -10 to 40°C, it is perfect for various power management needs. Its robust design minimizes noise and heat, ensuring consistent performance. Order online now and give your devices a dependable and certified power source for optimal operation and safety.
Order your Triad Series WDU9-1000 power supply today and ensure your electronic devices operate reliably with high-quality power protection.
