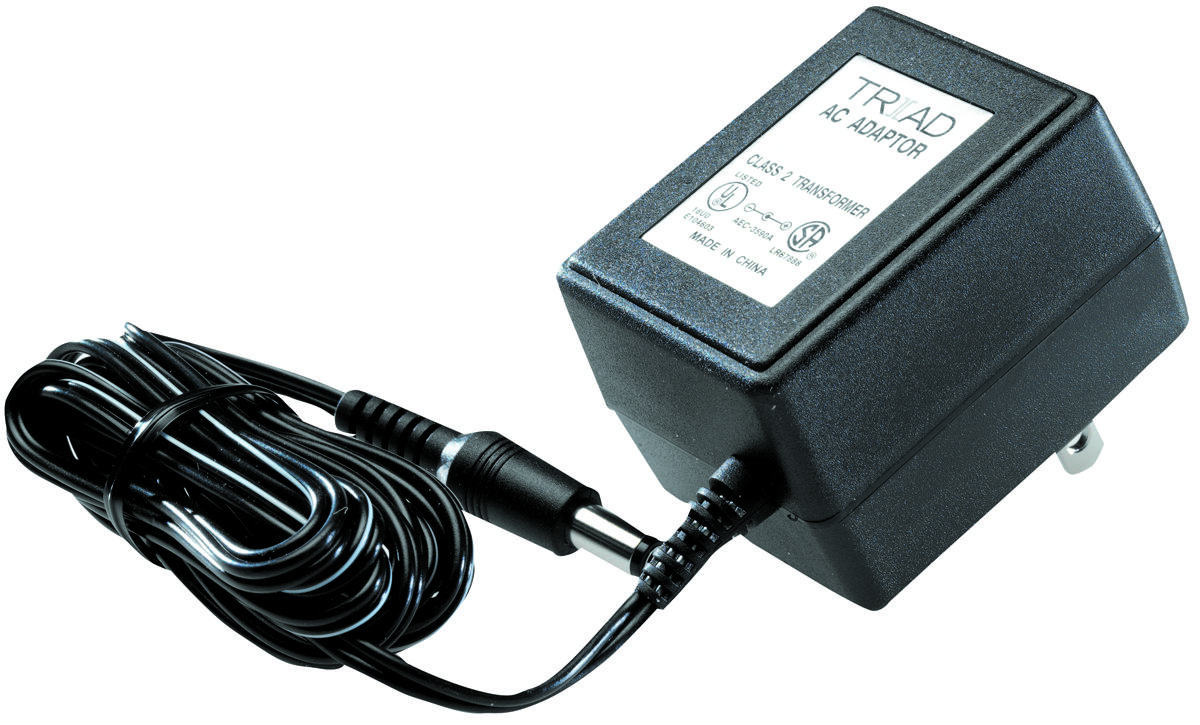

TRIAD MAGNETICS WDU91200 Power Supply
The WDU9-1200 is an AC/DC unregulated wall plug-in power supply with a fixed output, designed for reliable power management in various applications. Its compact thermoplastic enclosure minimizes size, weight, and noise by eliminating internal cooling components. The fully enclosed design enhances safety by preventing tampering and ensures compliance with agency standards. It features a maximum output ripple voltage of 1150mV, provides a lower output voltage for sensitive circuits, and effectively dissipates heat. Suitable for applications requiring stable power supply and regulatory approval, it offers durable, safe performance.
TRIAD MAGNETICS WDU91200 Power Supply Specifications:
- Input Voltage: 120VAC 50/60Hz
- Output Voltage: 9VDC ±5%
- Output Current: 1200mADC
- Power Consumption: 18.5W
- Ripple Voltage: 1150mV Max
- Operating Temperature Range: -10°C to +40°C
- Case Type: Thermoplastic molded enclosure
- Output Cord: 24 AWG, minimum 6 ft long
- Temperature Rise: 75°C Max at rated load
- Enclosure Surface Temperature: Max 50°C
- Agency Certification: UL/CUL File E245587, UL 1310
- RoHS Compliant: Yes, as of February 2005
- Protection: Fully enclosed, tamper-resistant design
Buy the Triad 1200 Wall Plug – Reliable Power Supply for Industrial Applications
Purchase the Triad WDU9-1200 power supply online today and enjoy reliable, high-quality power management solution for your industrial or electronic projects. Compact and fully enclosed, it provides a safe, stable output with minimal noise and efficient heat dissipation. Suitable for powering sensitive circuits with a ripple voltage of only 1150mV, ensuring consistent performance. Easy to install and compliant with UL and RoHS standards, this supply is ideal for maintaining safety and durability in demanding environments. Order now for quick delivery and superior performance.
Order your Triad Series WDU9-1200 power supply today and ensure dependable power delivery for your electronic projects and industrial systems.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WDU91200?
You can click on the BUY or RFQ button to purchase WDU91200 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WDU91200?
You can download the WDU91200 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WDU91200?
TRIAD MAGNETICS
