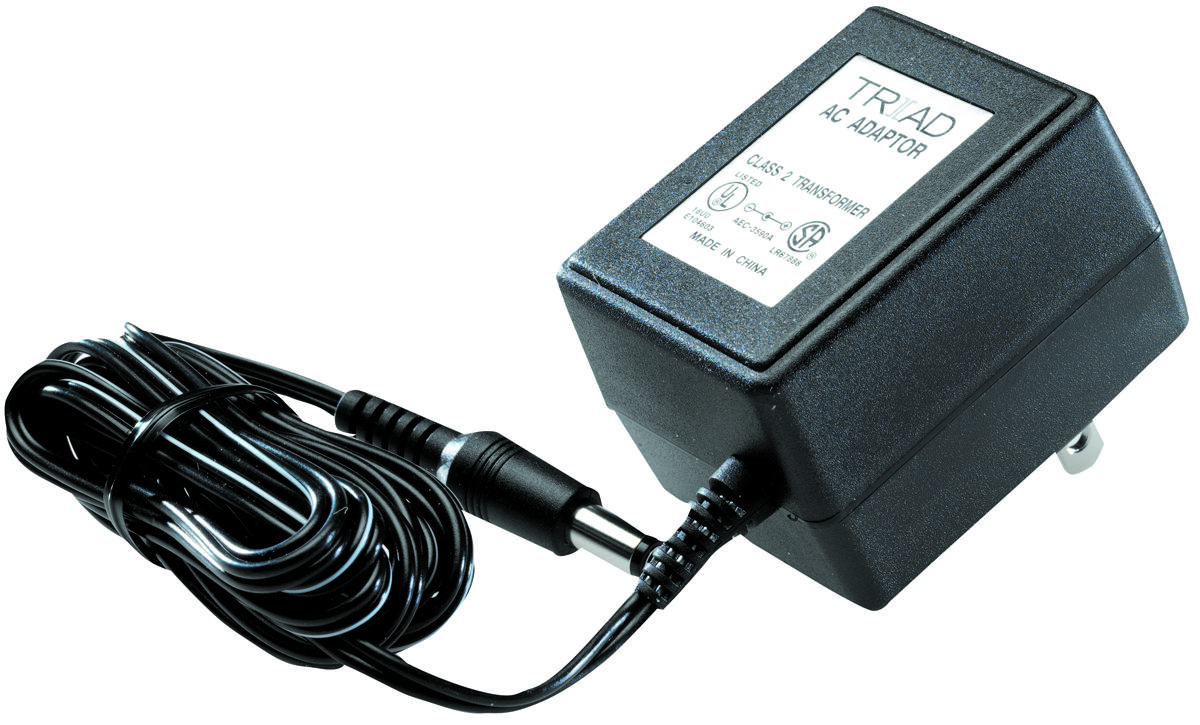

TRIAD MAGNETICS WDU9500 Power Supply Module
The WDU9-500 is a 9V DC, 18.5W power supply designed as a wall plug-in unit. It features a thermoplastic molded enclosure, operates within a temperature range of -10°C to 40°C, and comes with a 24 AWG output cord. The power supply offers double insulation, Class B protection, and dielectric isolation of 4 kVDC for one minute. It eliminates the need for internal cooling devices, reducing noise, size, and weight of the end product. The completely enclosed design prevents tampering and helps facilitate regulatory approvals. Compatible with various applications requiring reliable power management, it features a long six-foot cord and operates at 60Hz without regulation.
TRIAD MAGNETICS WDU9500 Power Supply Module Specifications:
- Input Voltage: 120V AC, 60Hz
- Output Voltage: 9V DC + 5%
- Output Power: 18.5W
- Secondary Rating: 9VDC, 500mA
- No-Load Voltage: 13.2VDC reference
- Output Ripple Voltage: 800mV Max
- Operating Temperature Range: -10°C to 40°C
- Temperature Rise: 75°C Max at rated load
- Enclosure: Thermoplastic molded
- Output Cord: 24 AWG, 6 ft long
- Isolation: Dielectric 4 kVDC for 1 min
- Protection: Double insulation, Class B
- Certifications: UL Listed (UL 1310), UL File E245587
- RoHS Compliant: Yes
- Dimensions: Not specified (externally sourced data: approx. 70mm x 40mm x 30mm typical size)
Buy the Triad Power Supply WDU9-500 – Reliable 9V DC Power for Industrial Applications
Purchase the WDU9-500 power supply online today and ensure your devices operate with consistent, reliable power. Perfect for industrial and electronic applications, its robust thermoplastic enclosure, long six-foot cord, and safety features like double insulation make it a trusted choice. The unit meets UL safety standards and RoHS compliance, ensuring safety and environmental friendliness. With easy installation and dependable performance, buying online guarantees fast delivery and excellent customer support. Improve your power management today with this high-quality, versatile power supply suitable for many industrial and consumer devices.
Buy Triad WDU9-500 now and experience unmatched reliability and performance with a compact, solid design ideal for your electronics.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WDU9500?
You can click on the BUY or RFQ button to purchase WDU9500 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WDU9500?
You can download the WDU9500 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WDU9500?
TRIAD MAGNETICS
