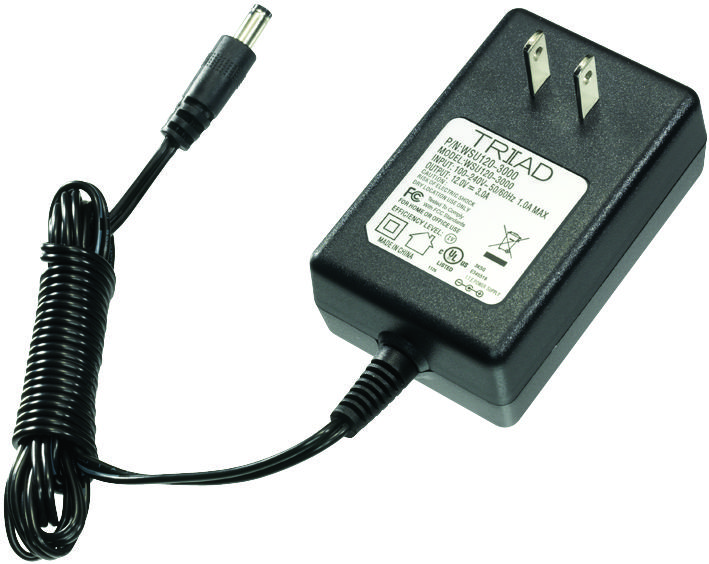

TRIAD MAGNETICS WSU120300013 Power Supply Module
The WSU120-3000-13 by Triad Magnetics is a compact, wall plug-in switch mode power supply designed for versatile applications. It accepts an input voltage range of 100V to 240V AC at 50Hz or 60Hz and provides a regulated 12VDC output with a maximum current of 3A, delivering up to 36W of power. The power supply features a thermoplastic molded enclosure, is fully enclosed for tamper resistance, and conforms to safety standards including UL 60950-1 and CSA C22.2 No. 60950-1. It offers high efficiency levels (Level IV and V), with an average efficiency of over 87.4%, and meets the EIAS 2007 energy efficiency requirements. The enclosure keeps heat away from sensitive circuits, reducing noise, size, and weight of the end product. The unit includes an 18 AWG, 5-foot output cord, and features a 2.5mm x 5.5mm x 11mm output plug. It is suitable for power management and industrial applications, operates within a temperature range of 0°C to 40°C, and has dielectric strength of 4kVDC for 60 seconds.
TRIAD MAGNETICS WSU120300013 Power Supply Module Specifications:
- Input Voltage Range: 100-240VAC, 50-60Hz
- Output Voltage: 12VDC
- Output Current: 3A
- Power Output: 36W
- Efficiency: 87.4%
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to 60°C
- Input Current: <1.3A at 115VAC
- Ripple & Noise: 150mVpk-pk Max
- Enclosure: Thermoplastic molded case
- Output Cord: 18 AWG, 6 Ft. long
- Output Plug: 2.5mm x 5.5mm x 11mm
- Dielectric Strength: 4242VDC for 3 seconds
- Environmental Compliance: RoHS, Level VI energy efficiency
- Safety Certification: UL 60950-1, CSA C22.2 No. 60950-1
- Overvoltage & Short Circuit Protection: Yes
Buy the Buy Triad Power Supply Part Number WSU120300013 Online
Purchase the Triad WSU120-3000-13 power supply online today to enjoy a reliable, high-efficiency power solution for industrial and management applications. This compact module provides a regulated 12VDC output with 3A current capacity, ensuring consistent performance. Designed with a thermoplastic enclosure, it offers robust safety features including UL and CSA certifications. With an efficiency of over 87.4%, it meets latest energy standards and features a 6-foot output cord with a secure 2.5mm x 5.5mm output plug. Ideal for various power management needs, it supports temperatures from 0°C to 40°C and features durable dielectric strength for safety and longevity.
Buy Triad Power Supply WSU120300013 now and experience reliable performance with high efficiency and safety certifications suitable for industrial needs.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WSU120300013?
You can click on the BUY or RFQ button to purchase WSU120300013 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WSU120300013?
You can download the WSU120300013 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WSU120300013?
TRIAD MAGNETICS
