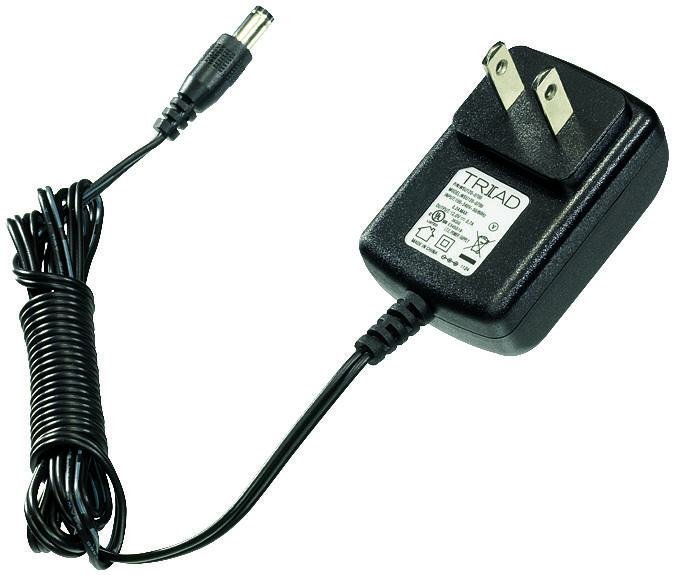

TRIAD MAGNETICS WSU0751000 Power Supply
This power supply provides reliable 7.5VDC output at 1A, with high efficiency meeting Level VI standards. Its thermoplastic enclosure ensures durability, and it supports a broad input voltage range of 100-240VAC. Designed for industrial and power management applications, it features over-voltage and short-circuit protection, low ripple noise, and compliance with UL, CSA, FCC standards. Operating within 0°C to 40°C, it offers excellent reliability with a 5-year warranty, ideal for safety-critical systems requiring stable and efficient power conversion.
TRIAD MAGNETICS WSU0751000 Power Supply Specifications:
- Input Voltage range: 90-264VAC
- Input Voltage rating: 100-240VAC, 50-60Hz
- Input current: <0.4A(RMS) @ 115VAC
- Max Inrush Current: <60A peak @ 115VAC
- Output Voltage: 7.5VDC
- Output Current: 1A
- Regulation: +5%
- Ripple & Noise: 150mVpk-pk Max
- No load power (standby): <100mW
- Efficiency: 280.26%
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to 60°C
- Humidity: 5% to 95%, Non-condensing
- Leakage Current: <0.25mA (264VAC)
- Dielectric Strength: 4242VDC/3secs.
- Warranty: 5 years
- Case Type: Thermoplastic molded enclosure
- Output Cord: 22 AWG, 6 ft.
- Certifications: UL, CSA, FCC, EISA Level VI
- RoHS Compliant: Yes
- Safety & EMI: Over voltage & short circuit protected, FCC Class B EMI compliance
Buy the Buy Triad WSU075-1000 Power Supply Part Number WSU075-1000 Online
Purchase the Triad power supply WSU075-1000 today for reliable 7.5VDC output at 1A. Its high efficiency and broad input voltage range make it ideal for industrial and power management applications. Featuring UL, CSA, and FCC certifications, it provides over-voltage and short-circuit protection, ensuring safety and durability in demanding environments. The thermoplastic enclosure guarantees robustness, and the 5-year warranty offers peace of mind for long-term operation. Shop online now for dependable, high-quality power conversion solutions designed for safety and performance.
Get Triad WSU075-1000 power supply today—built for industrial reliability, safety, and long-lasting performance.
