TRIAD MAGNETICS WSX0902500R Power Supply
This power supply is ideal for industrial and power management use, offering high efficiency and reliable performance in demanding environments. It features an output of 9.0VDC with a maximum current of 2.54A, and meets multiple safety and EMI standards including UL, FCC, CE, RoHS, and international certifications. With an operating temperature range of 0°C to +45°C, it guarantees consistent power delivery. Its thermoplastic enclosure ensures durability, and the power supply is overvoltage and short-circuit protected, backed by a 5-year warranty, making it highly dependable for professional applications.
TRIAD MAGNETICS WSX0902500R Power Supply Specifications:
- Input Voltage: 100-240VAC, 50-60Hz, range 90-264VAC
- Input Current: 0.8A RMS @ 115VAC
- Max Inrush Current: 50A @ 115VAC (Cold start)
- Output Voltage: 9.0VDC
- Output Current: 2.54A
- Regulation: +5%
- Ripple: 150mVpk-pk Max
- No load power: < 100mW
- Efficiency: 86% typical
- Operating Temperature: 0°C to +45°C at full load
- Storage Temperature: -20°C to 60°C
- Humidity: 5% to 95%, non-condensing
- Leakage Current: <0.25mA (264VAC)
- Dielectric Strength: 4242VDC/3secs., 5mA Max
- Enclosure: Thermoplastic molded case
- Output Cord: 18 AWG, 6 ft long
- Safety Standards: UL/ANSI 60950, EN 60950-1, AS/NZS 60950.1
- EMI: FCC Part 15 class B, EN 61204-3
- Protection: Over voltage and short circuit
- Warranty: 5 years

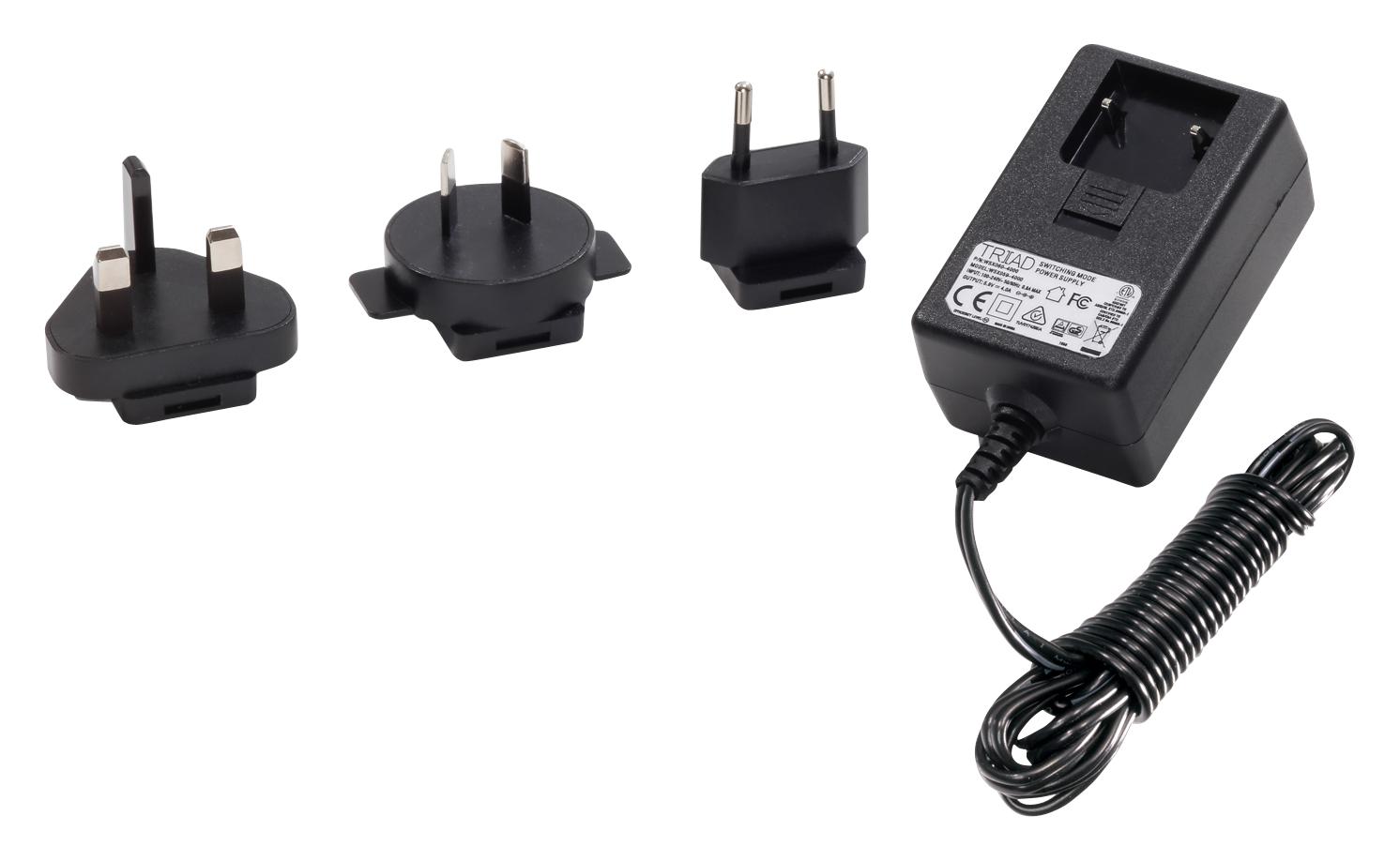

Buy the Buy Triad Power Supply Part Number WSX0902500R Online
Purchase the Triad Power Supply WSX0902500R online today and experience dependable power delivery with high efficiency, safety compliance, and a durable thermoplastic enclosure. This versatile power supply offers 9VDC output with 2.54A current capacity, suitable for industrial and power management applications. Equipped with overvoltage and short circuit protection, it guarantees safety and reliability. Backed by a 5-year warranty, it meets global safety and EMI standards including UL, CE, RoHS, FCC, and IEC certifications. Order now to enhance your project’s power stability and efficiency.
Order your Triad Power Supply WSX0902500R today and ensure reliable, efficient power for your industrial projects with built-in safety features.
