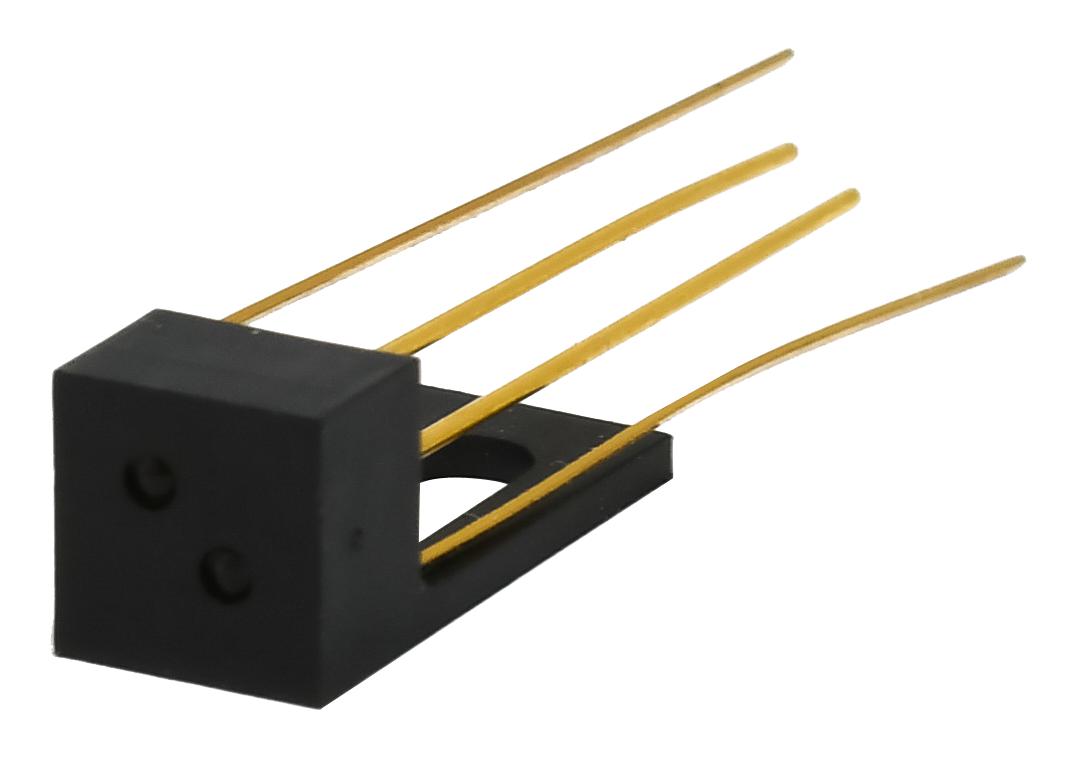

TT Electronics - Optek Technology OPB735A Reflective Object Sensor
The OPB735 series sensors combine infrared LED and a phototransistor or photodarlington in a compact plastic housing, ideal for reflective object sensing in automation. They detect reflective surfaces within a specified field of view and feature hermetically sealed metal can packages for durability and reliability. The series offers models with interconnect wires or leads, suitable for non-contact sensing applications like assembly line automation, machine safety, end-of-travel sensing, and door detection. Their low-profile design facilitates stacking and easy integration into various systems, with voltage and current ratings tailored for robust operation.
TT Electronics - Optek Technology OPB735A Reflective Object Sensor Specifications:
- Power Dissipation: 100 mW
- Collector-Emitter Voltage: 30 V (OPB735A, OPB735B, OPB735AWZ, OPB735BWZ), 15 V (OPB735C, OPB735CWZ)
- Emitter-Collector Voltage: 5 V
- Collector DC Current: 30 mA
- Operating Temperature Range: -55°C to +100°C
- Storage Temperature Range: -55°C to +125°C
- Soldering Temperature: 260°C (OPB735A, OPB735B, OPB735C), 240°C (OPB735AWZ, OPB735BWZ, OPB735CWZ) for 5 seconds
- Input Diode Forward Voltage: 1.80 V at 50 mA
- Reverse Current: 100 pA at 2 V
- Dark Current: 100 nA (phototransistor), 250 nA (photodarlington) at 10 V
- Maximum LED Forward Current: 75 mA
- Peak Reflection Wavelength: 890 nm
- Detection Distance: 0.50 inch (12.7 mm)
- Lead Wire Length: 12 inches (300 mm), #28 AWG, stripped and tinned
Buy the Buy TT Electronics OPB735A Reflective Object Sensor Part Number OPB735A Online
Purchase the TT Electronics OPB735A Reflective Object Sensor online today to enhance your automation projects with this compact, durable, and high-performance sensor. Featuring infrared LED and phototransistor or photodarlington outputs, it is designed for non-contact reflective surface detection, assembly line automation, machine safety, and end-travel sensing applications. Its hermetically sealed metal package ensures longevity, while the low-profile design allows easy stacking and integration into various systems. Order now for fast delivery and reliable operation in your automation environment.
Buy TT Electronics OPB735A now and enjoy reliable non-contact detection with high-quality reflective sensors suitable for automation and safety systems.
