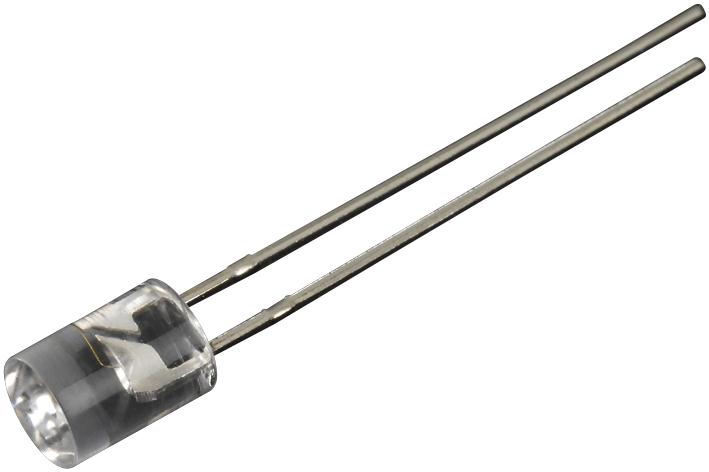

TT Electronics - Optek Technology OVLLR8C7 High-Intensity LED
The OVLLR8C7 is a cylindrical high-intensity LED with a clear lens, made of AllnGaP material. Designed for superior performance in signage and lighting applications requiring wide-angle uniform light output, this device features a high-brightness indicator within a unique flat-topped T-1 3/4 package. It offers a wide viewing angle, industry-standard lead spacing, and a flexible lens shape suitable for various applications such as channel lettering, backlighting, decorative architectural lighting, and outdoor or indoor accents. It supports a 5V reverse voltage, dissipates 120mW of power, and can operate up to a junction temperature of 125°C.
TT Electronics - Optek Technology OVLLR8C7 High-Intensity LED Specifications:
- Material: AllnGaP
- Emitted Color: Red
- Intensity Typ.: 900 mcd
- Reverse Voltage: 5V
- Power Dissipation: 120mW
- Operating Temperature Range: -40°C to +100°C
- Junction Temperature: 125°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Beam Pattern: Wide angle
- Dimensions: Length approximately 5.05 mm, diameter 5 mm
Buy the TT Electronics Series OVLL Series Red LED: OVLLR8C7
Purchase the TT Electronics OVLLR8C7 high-brightness cylindrical LED online today. Designed for signage, architectural accents, and indicators, this LED features a wide viewing angle, durable construction, and excellent light output performance. Perfect for indoor or outdoor use, it supports a maximum reverse voltage of 5V and dissipates 120mW of power, ensuring reliable operation up to 125°C junction temperature. Fast shipping and competitive pricing available now for all your lighting and signage needs.
Get TT Electronics OVLLR8C7 today—built for precision and long-lasting durability in lighting applications.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OVLLR8C7?
You can click on the BUY or RFQ button to purchase OVLLR8C7 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OVLLR8C7?
You can download the OVLLR8C7 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OVLLR8C7?
TT Electronics - Optek Technology
