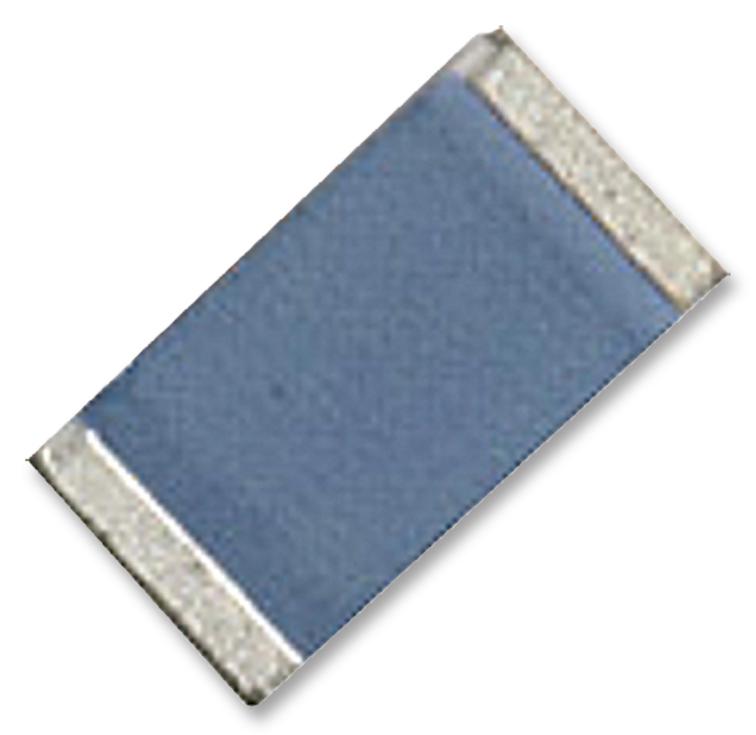

TTElectronics - Welwyn ASC0402100KFT10 Anti Sulphur Chip Resistor
The Anti Sulphur Chip Resistors from the ASC Series are specially designed to withstand sulphide growth and harsh sulphur-bearing environments. Ideal for industrial, automotive, and roadside applications, these resistors are tested to ASTM-B809 standards for resistance to sulfur fumes. Featuring RoHS compliant matt tin terminations, they are available in multiple sizes including 0402, 0603, 0805, and larger. With a resistance range of 1 ohm to 10 megaohms, they are rated for up to 1 watt and operate effectively from -55°C to +155°C. These resistors combine durability with precise resistance tolerance of 1%, suitable for demanding environments.
TTElectronics - Welwyn ASC0402100KFT10 Anti Sulphur Chip Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Power rating at 70°C: 0.068W to 1W depending on size
- Resistance range: 1Ω to 10MΩ
- Max voltage: 50V
- Temperature Coefficient: <100 ppm/°C
- Resistance tolerance: ±1%
- Operating temperature: -55°C to +155°C
- Appearance: RoHS compliant matt tin finish terminations, wrap-around solderable terminations
- Construction: Glass inner protection, epoxy outer, alumina substrate
- Marking: Size larger than 0603 marked with 4 digits, size 0603 with 3 digits, size 0402 unmarked
- Compliance: RoHS, ASTM-B809 testing for sulphide resistance, AEC-Q200 qualified
Buy the TT Electronics Series ASC Anti Sulphur Chip Resistors: ASC0402100KFT10
Order TT Electronics Series ASC Anti Sulphur Chip Resistors online today and ensure your project’s reliability in sulphur-heavy environments. These resistors are designed to withstand harsh conditions, resist sulphide growth, and operate across wide temperature ranges. Featuring RoHS compliance and precise resistance tolerance, they are perfect for industrial, automotive, and roadside uses. Available in multiple sizes with wrap-around terminations for soldering, these resistors offer excellent durability, stability, and performance. Purchase now and benefit from fast delivery and technical support.
Buy TT Electronics Series ASC Anti Sulphur Chip Resistors now and experience unmatched durability in sulphur-rich environments, ideal for industrial and automotive applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn ASC0402100KFT10?
You can click on the BUY or RFQ button to purchase ASC0402100KFT10 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part ASC0402100KFT10?
You can download the ASC0402100KFT10 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of ASC0402100KFT10?
TTElectronics - Welwyn
