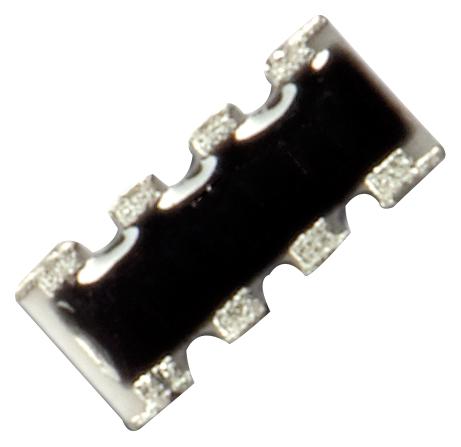

TTElectronics - Welwyn GBCN164AB1R10F7 Resistor Array
The GBCN164AB1R10F7 is a green thick film chip resistor array designed for surface-mount applications, offering high reliability and low resistance tolerance. It features four isolated resistors, each with a resistance of 1.1 ohms and a tolerance of 1%. Rated at 250 mW package power at 70°C, it can withstand voltages up to 50V limit and overload voltages of 100V. Constructed with Ruthenium Oxide on a ceramic substrate, this resistor array complies with RoHS and AEC-Q200 standards, making it suitable for automotive and industrial environments with operating temperatures from -55°C to +155°C.
TTElectronics - Welwyn GBCN164AB1R10F7 Resistor Array Specifications:
- Resistor Power Rating @70°C: 250 mW
- Limit Element Voltage: 50 V
- Maximum Overload Voltage: 100 V
- Resistance Range: 1Ω to 1MΩ
- Resistance Tolerance: 1% or 5%
- TCR: <100 ppm/°C
- Operating Temperature: -55°C to +155°C
- Dielectric Withstand Voltage: 300 V
- Construction: Ruthenium Oxide resistor on alumina substrate
- Dimensions: Length 16 mm, Width 4 mm, Thickness 0.5 mm
- Package Type: Tape and reel, 5000 units per reel
- Compliance: RoHS, AEC-Q200
Buy the TT Electronics GBCN164 U– Reliable Resistor Arrays for Industrial Applications
Order the TT Electronics resistor array GBCN164AB1R10F7 online now to benefit from advanced RoHS compliance, high power rating, and excellent temperature stability, ensuring superior performance in demanding industrial and automotive environments. This four-resistor chip array with 1.1Ω resistance at 1% tolerance is ideal for compact electronic circuits requiring high reliability. With tape and reel packaging, quick delivery, and globally trusted quality standards, purchasing online guarantees fast, secure, and convenient access to leading resistor technology for your projects.
Buy TT Electronics GBCN164AB1R10F7 now and experience unmatched reliability and performance in industrial and automotive resistor arrays.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R10F7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R10F7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R10F7?
You can download the GBCN164AB1R10F7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R10F7?
TTElectronics - Welwyn
