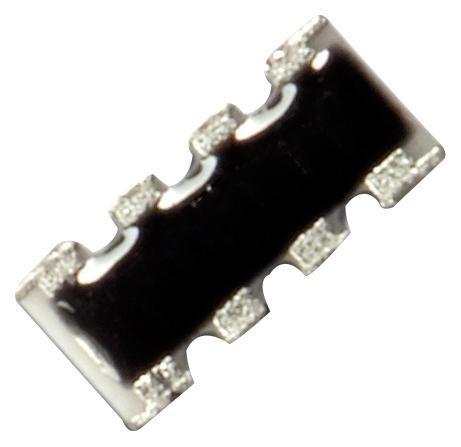

TTElectronics - Welwyn GBCN164AB1R3J7 Resistor Array
The GBCN series features RoHS-compliant, lead-free green thick film chip arrays designed for high reliability in industrial applications. These resistor arrays offer power ratings up to 250 mW at 70°C, with resistance ranges from 1Ω to 1MΩ and tolerance levels of 5% or 1%. Built with Ruthenium Oxide protection resistors on alumina substrates, they withstand voltages up to 50V (limiting) and 300V dielectric withstand. Suitable for compact electronic assemblies, these arrays support high-temperature operation (-55°C to +155°C) and are ideal for demanding industrial environments.
TTElectronics - Welwyn GBCN164AB1R3J7 Resistor Array Specifications:
- Power Rating: 250 mW @ 70°C
- Resistance Range: 1Ω to 1MΩ
- Resistance Tolerance: 5% or 1%
- Operating Temperature: -55°C to +155°C
- Voltage Rating: 50V (limiting), 100V overload
- Dielectric withstand: 300V
- Construction: Ruthenium Oxide resistor on alumina substrate
- Dimensions: Length 16mm, width 4mm, height 0.5mm
- Marking: 3 digits for 5% tolerance, 4 digits for 1% tolerance
- Pulled and taped packaging for automated assembly
- High reliability for industrial environments
- RoHS compliant, lead-free, AEC-Q200 qualified
Buy the TT Electronics GBCN164 U+2013 Reliable Resistance Arrays for Industrial Applications
Order TT Electronics GBCN resistor arrays online today and enhance your electronic systems with high-quality, RoHS-compliant resistor solutions. These arrays deliver excellent stability, thermal endurance, and precise resistance values, making them ideal for industrial applications where reliability and performance are critical. Their compact form factor and robust construction ensure long-term durability in demanding environments. Easily integrated into automated manufacturing processes, these resistor arrays are perfect for creating highly reliable electronic assemblies. Don't miss out—purchase now for superior quality and performance in your next project.
Buy TT Electronics GBCN164 resistor arrays now and experience unmatched reliability for your industrial electronic projects.
