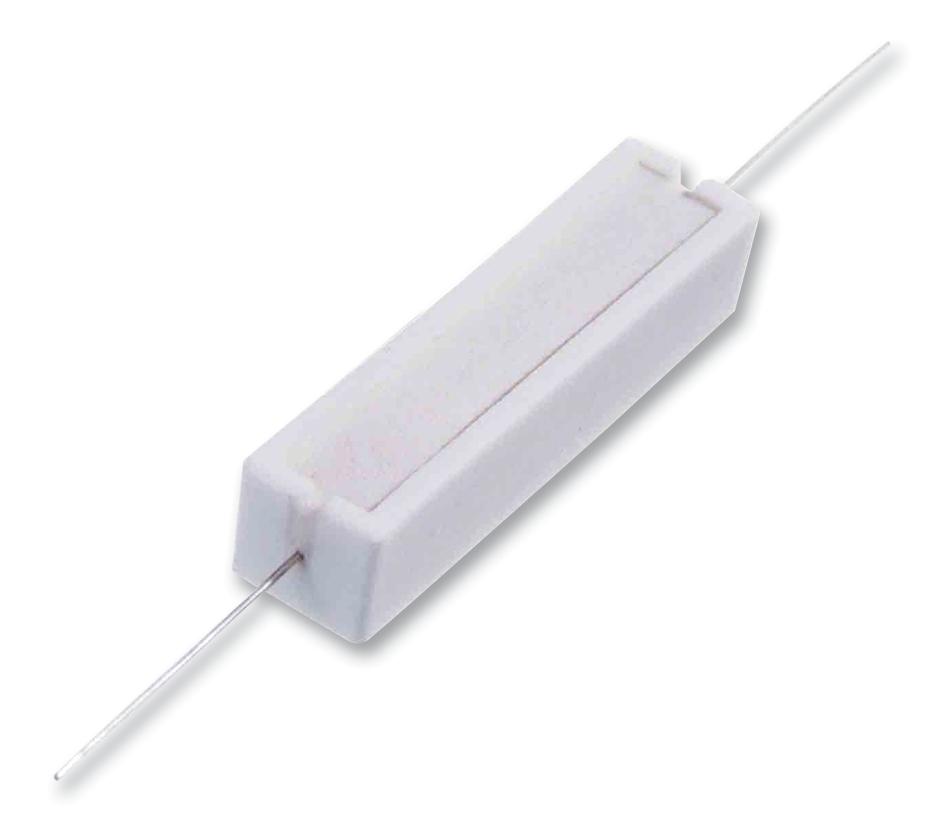

TTElectronics - Welwyn SQP7S0R1JB15 Ceramic Resistor
High-quality ceramic case resistors in the SQP / CAF / CAW series, offering power ratings from 2W to 25W, resistance ranges up to 200KΩ, and high overload capability. These RoHS-compliant resistors feature flameproof ceramic casings with inorganic potting, suitable for demanding electronic applications. They are constructed using high purity ceramic rods with either wirewound or metal oxide films, ensuring excellent thermal and electrical performance. Designed for reliability and safety, they meet industry standards for certification and solderability, making them ideal for industrial, automation, and electronic circuit protection.
TTElectronics - Welwyn SQP7S0R1JB15 Ceramic Resistor Specifications:
- Power Rating: 2W to 25W at 70°C
- Resistance Range: OR1 to 200KΩ
- Limiting Element Voltage: 250V to 750V dc or ac rms
- Resistance Tolerance: 5%, 10%
- Temperature Range: -55°C to +155°C
- Construction: High purity ceramic rod with wirewound or metal oxide film
- Termination Material: Tinned copper lead wires
- Maximum Load at Rated Power (1000hrs at 70°C): ±5%
- Damp Heat Steady State: 56 days at 40°C, 290% RH, ±2%
- Resistance to Solder Heat: ±1%
- Physical Dimensions: varies per model, approx. 19mm to 65mm in length
- Compliance: RoHS, EU Directive 2011/65/EU, RoHS3
- Standard Values: E24 preferred
- Isolation Voltage: 1000V
- Flameproof ceramic case with inorganic potting material
Buy the Buy TT Electronics Resistors Part Number SQP7S0R1JB15 Online
Order TT Electronics ceramic resistors from our online store today. Designed with high overload capacity, RoHS compliance, and durable ceramic casings, these resistors are ideal for industrial and electronic applications. They deliver excellent thermal stability, resistance to solder heat, and meet strict safety and performance standards. With various power ratings and resistance ranges, these resistors ensure reliable circuit protection and performance. Purchase now for fast delivery, competitive pricing, and quality assurance in electronic component supplies.
Get TT Electronics ceramic resistors with high overload capacity and reliable solderability today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn SQP7S0R1JB15?
You can click on the BUY or RFQ button to purchase SQP7S0R1JB15 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part SQP7S0R1JB15?
You can download the SQP7S0R1JB15 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of SQP7S0R1JB15?
TTElectronics - Welwyn
