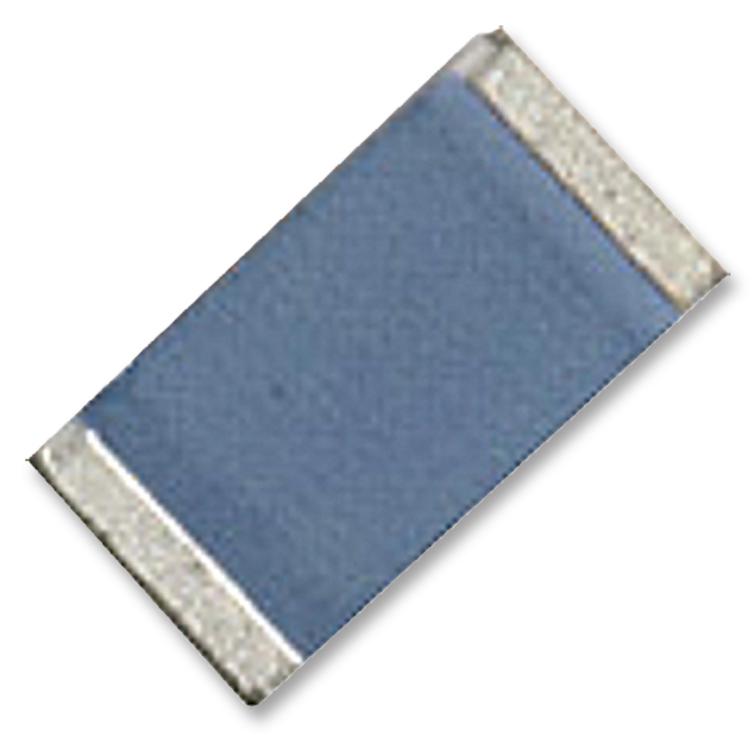

TTElectronics---Welwyn GHVC20103M3FT1 High Voltage Chip Resistor
The GHVC Series are high-quality, RoHS-compliant chip resistors designed for high-voltage applications, capable of handling continuous voltages up to 3kV and overload voltages up to 4kV. They feature thick film resistive material on alumina substrates with wrap-around tin-plated nickel barrier terminations. Suitable for reflow or wave soldering, these resistors provide excellent leach resistance and reliable electrical connections. Ideal for industrial, electronics, and high-voltage circuit applications, they operate at temperatures up to 125°C, ensuring durability and robustness in demanding environments.
TTElectronics---Welwyn GHVC20103M3FT1 High Voltage Chip Resistor Specifications:
- Power rating @70°C: 0.3W for 1206, 0.5W for 2010, 1W for 2512
- Limiting element voltage: 1000V (1206), 2000V (2010), 3000V (2512)
- Overload voltage (2s): 1500V (1206), 3000V (2010), 4000V (2512)
- Resistance range: 25K to 100M ohms
- Resistance tolerance: 1%, 2%, 5%, 10% (up to 10M ohms)
- TCR: 100 ppm/°C
- Ambient temperature range: -55°C to +125°C
- Physical dimensions: 1206 - 3.2x1.6x0.6mm, 2010 - 5.1x2.5x0.7mm, 2512 - 6.5x3.2x0.74mm
- Thermal impedance: 200°C/W (1206), 80°C/W (2010), 70°C/W (2512)
- Construction: Resistive thick film, alumina substrate, overglaze, organic protective coating
- Terminations: Lead-free wrap-around, nickel barrier, tin finish
- Maximum temperature: 125°C operating, solder joints <110°C
- Voltage proof: 500V, Voltage coefficient of resistance: -15 to -1.5 ppm/V depending on size
Buy the TT Electronics GHVC20103M3FT – Reliable High Voltage Chip Resistors for Industrial Applications
Order the TT Electronics GHVC20103M3FT high voltage chip resistor online today to ensure reliable performance in industrial and high-voltage electronics. These RoHS-compliant resistors handle voltages up to 3kV, feature robust wrap-around terminations suitable for reflow or wave soldering, and operate up to 125°C for durability. Perfect for circuits requiring high voltage handling and resistance stability, they are supplied in taped and reeled packaging for seamless automated assembly. Secure your supply now and enhance your electronic applications with quality components designed for challenging environments.
Buy TT Electronics GHVC20103M3FT now and experience unmatched reliability and high-voltage performance in demanding industrial circuits.
Frequently Asked Questions
Where can I buy TTElectronics---Welwyn GHVC20103M3FT1?
You can click on the BUY or RFQ button to purchase GHVC20103M3FT1 from an authorized TTElectronics---Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GHVC20103M3FT1?
You can download the GHVC20103M3FT1 datasheet or visit the TTElectronics---Welwyn website for support.
Who is the manufacturer of GHVC20103M3FT1?
TTElectronics---Welwyn
