TTElectronics - Welwyn SQP7S10RJB15 Ceramic Power Resistor
The SQP7S10RJB15 is a ceramic case resistor from the wirewound and metal oxide series, offering high overload capacity, RoHS compliance, and flameproof ceramic construction. Designed for reliable performance up to 70°C, it features a power rating of 7 watts, resistance range of 10 ohms with a ±5% tolerance, and maximum voltage of 750V. Its compact dimensions include a maximum height of 30mm and body diameter of 6mm, with high thermal impedance and excellent solderability. Suitable for industrial applications requiring durable, high-performance resistors with various resistance values.
TTElectronics - Welwyn SQP7S10RJB15 Ceramic Power Resistor Specifications:
- Power Rating: 7W at 70°C
- Resistance Range: 10Ω, ±5% tolerance
- Limiting Element Voltage: 750V DC or AC RMS
- Dimensions: Body diameter 6mm, height 30mm
- Construction: Flameproof ceramic case, wirewound or metal oxide film
- Terminations: Tinned copper lead wires, solderable, IEC compliant
- Thermal Impedance: High, suitable for high power dissipation
- Ambient Temperature Range: -55°C to +155°C
- Resistance Tolerance: ±5%
- RoHS Compliant: Yes
- Overload Capability: Short-term overload at 6.25xPr for 5s
- Insulation Voltage: 1000V
- Solderability: Meets IEC 115-1 Clause 4.17.3.2 standards

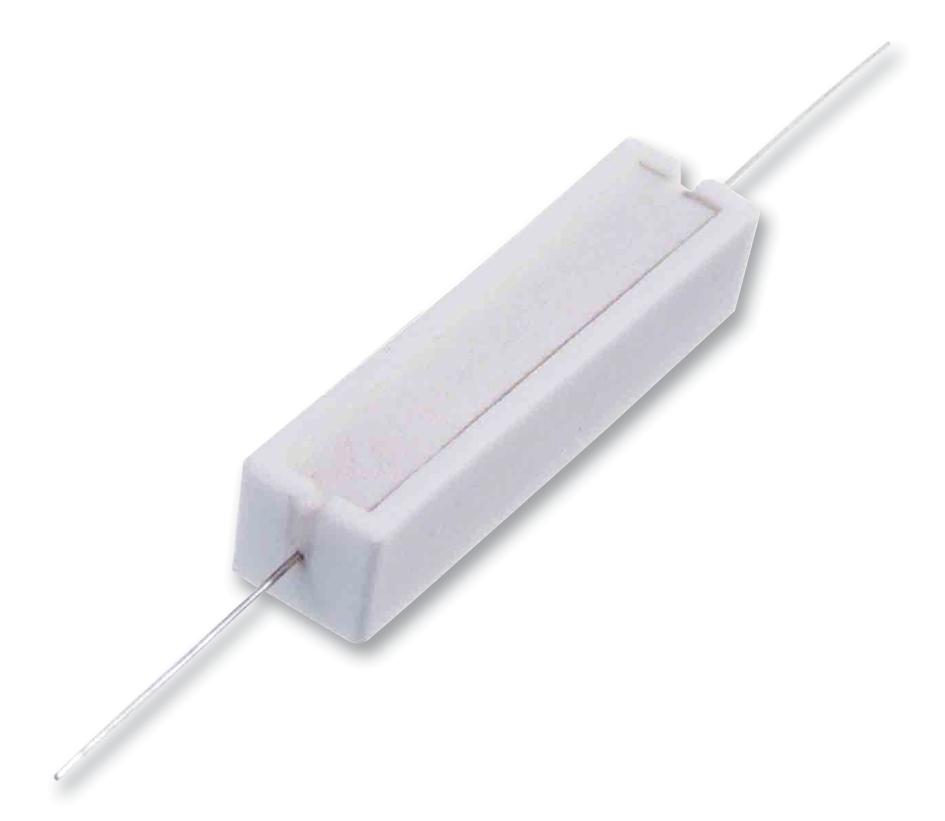

Buy the TT Electronics Series SQP Ceramic Resistor: SQP7S10RJB15
Purchase the TT Electronics ceramic power resistor from the SQP series, model SQP7S10RJB15. Designed for high overload capability, RoHS compliance, and flameproof ceramic casing, this 7-watt resistor offers excellent thermal performance and stability in demanding industrial environments. Its resistance value of 10 ohms with a ±5% tolerance ensures precision. Ideal for applications requiring durable, high-quality resistors with a maximum voltage of 750V, compact dimensions, and dependable performance. Order now online for fast delivery and trusted reliability.
Order your TT Electronics Series SQP7S10RJB15 ceramic resistor today and ensure reliable performance for your industrial power applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn SQP7S10RJB15?
You can click on the BUY or RFQ button to purchase SQP7S10RJB15 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part SQP7S10RJB15?
You can download the SQP7S10RJB15 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of SQP7S10RJB15?
TTElectronics - Welwyn
