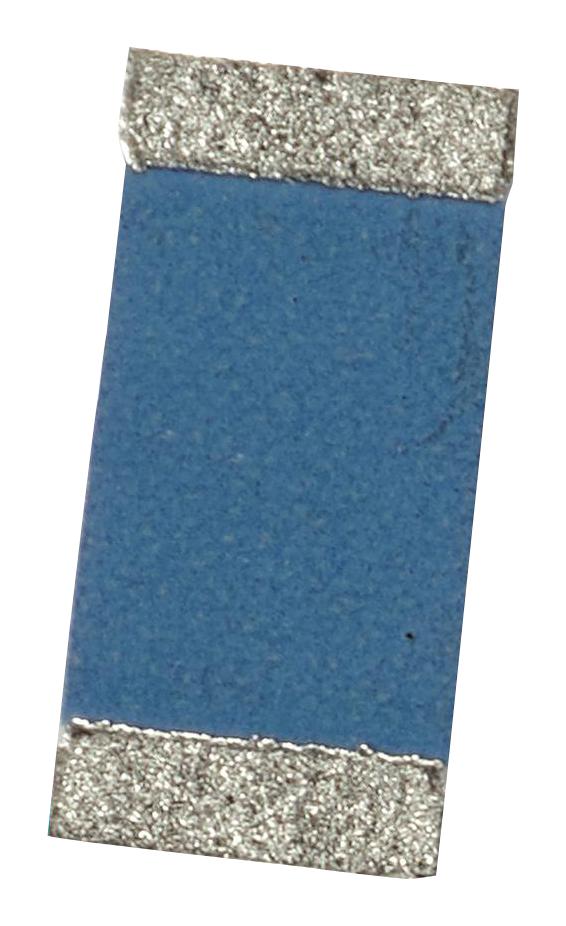

TTElectronics - Welwyn HVC1206100KFT3 High-Voltage Surface-Mount Resistor
The Welwyn HVC series resistors are high-voltage surface-mount resistors utilizing thick film technology. They come in multiple sizes including EIA 1206, 1210, and 2512, with resistance values ranging from 10kΩ to 1GΩ, covering E24 and E96 decade series. These resistors feature a resistive thick film layer, an overglaze, and organic protective coating, all printed on a 96% alumina substrate. Equipped with wrap-around, electroplated nickel barrier and tin finish terminations, they offer excellent leach resistance and solderability. Designed for easy handling by automatic placement machinery, their rectangular shape and tight dimensional tolerances facilitate assembly. They have voltage ratings of up to 3000V depending on size, with power ratings from 0.3W to 1W at 70°C. Resistance tolerances are available from ±0.5% to ±10%, and temperature coefficient options include ±50ppm/°C and ±100ppm/°C. These resistors can withstand overload voltages up to 4kV and are constructed for durability. An anti-sulphur version is also available. Please note that demand has influenced extended lead times, potentially affecting delivery schedules. This product is exempt from discounts.
TTElectronics - Welwyn HVC1206100KFT3 High-Voltage Surface-Mount Resistor Specifications:
- Sizes available: 1206, 1210, 2512
- Resistance range: 10kΩ to 1GΩ
- Resistance tolerances: ±0.5%, 1%, 2%, 5%, 10%
- Temperature coefficients: ±50ppm/°C, ±100ppm/°C
- Voltage ratings: up to 3000V depending on size
- Power ratings: 0.3W (1206), 0.5W (2010), 1W (2512) at 70°C
- Maximum overload voltage: up to 4kV
- Construction: Thick film resistive layer on 96% alumina substrate
- Terminations: Electroplated nickel barrier with tin finish, wrap-around type
- Operating temperature: -55°C to +155°C
- Resistance value options available in E24 and E96 series
- Design includes organic protective coating for environmental resistance
- Markings: Type, value, tolerance, date code recorded on reel
- Certification: RoHS compliant, lead-free versions available
Buy the TT Electronics HVC1206100K – Reliable High-Voltage Resistors for Industrial Applications
Purchase TT Electronics high-voltage surface-mount resistors online for precise electronic circuit applications. Designed for reliability, these resistors handle voltages up to 3000V, feature a robust construction, and come in a range of sizes and resistance values. With excellent solderability and environmental resistance, they are ideal for automation and industrial settings. Buy now to ensure optimal performance in high-voltage, demanding environments, backed by quality and compliance with industry standards. Order today and enjoy fast, hassle-free delivery of your high-voltage resistor needs.
Get TT Electronics HVC1206100K today—built for precision, durability, and high-voltage performance in demanding environments.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn HVC1206100KFT3?
You can click on the BUY or RFQ button to purchase HVC1206100KFT3 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part HVC1206100KFT3?
You can download the HVC1206100KFT3 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of HVC1206100KFT3?
TTElectronics - Welwyn
