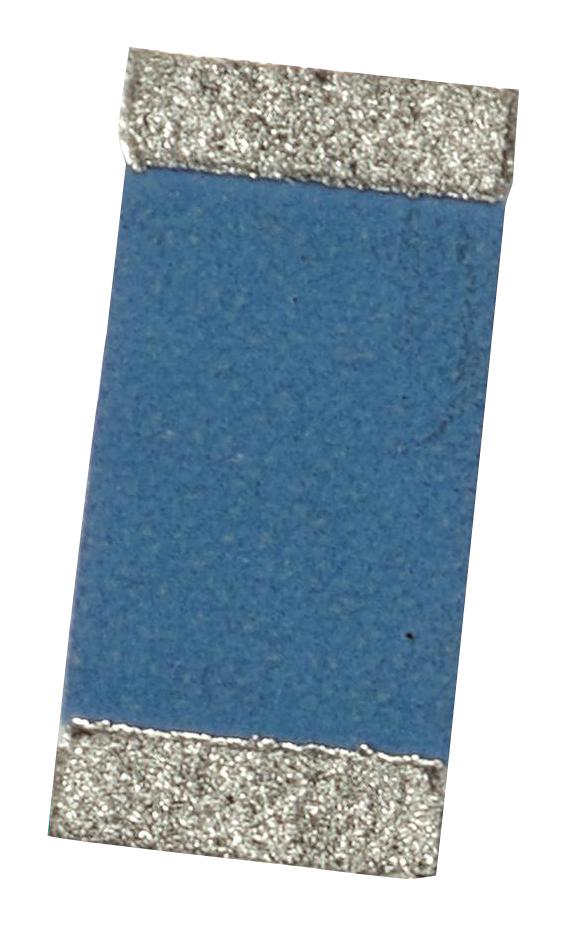

TTElectronics - Welwyn HVC201010MFT3 High-Voltage Chip Resistor
The Welwyn HVC series resistors are high-voltage surface-mount components based on thick film technology. They feature resistance values from 10kΩ to 1GΩ within the E24 and E96 series, with options in sizes 1206, 1210, and 2512. Constructed on a 96% alumina substrate with screen-printed resistive material, overglaze, and organic coatings, they offer excellent solderability via wrap-around, electroplated nickel barrier and tin terminations. Supporting limiting voltages up to 3kV and power ratings up to 1W at 70°C, these robust resistors cater to high-voltage applications with various tolerances and temperature coefficients.
TTElectronics - Welwyn HVC201010MFT3 High-Voltage Chip Resistor Specifications:
- Resistance values from 10kΩ to 1GΩ within E24 and E96 series
- Sizes available: 1206, 1210, 2512
- Construction on 96% alumina substrate with resistive thick film, overglaze, organic protection
- Wrap-around reinforcing terminations, nickel barrier with tin plating for solderability
- Limiting voltage: 1000V (1206), 2000V (2010), 3000V (2512)
- Power ratings: 0.3W (1206), 0.5W (2010), 1W (2512) at 70°C
- Resistance tolerances: ±0.5%, 1%, 2%, 5%, 10%
- Temperature coefficient options: ±50ppm/°C and ±100ppm/°C
- Maximum overload voltage: 4kV
- Operating temperature range: -55°C to +155°C
- Dimensions: 3.24mm x 1.64mm (1206), 5.14mm x 2.54mm (2010), 6.54mm x 4.0mm (2512)
Buy the Welwyn Series HVC High Voltage Chip Resistors: HVC201010MFT3
Order the Welwyn HVC201010MFT3 high-voltage resistors online today to ensure you get reliable components capable of handling voltages up to 3kV. These resistors are ideal for automatic assembly, featuring precise rectangular shapes, wrap-around terminations, and excellent solderability. With resistance values from 10kΩ to 1GΩ and power ratings up to 1W at 70°C, they provide high-performance solutions for demanding electrical projects. Purchase now for fast delivery and dependable high-voltage performance.
Buy Welwyn HVC201010MFT3 high-voltage chip resistor now and experience unmatched reliability and performance in high-voltage applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn HVC201010MFT3?
You can click on the BUY or RFQ button to purchase HVC201010MFT3 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part HVC201010MFT3?
You can download the HVC201010MFT3 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of HVC201010MFT3?
TTElectronics - Welwyn
