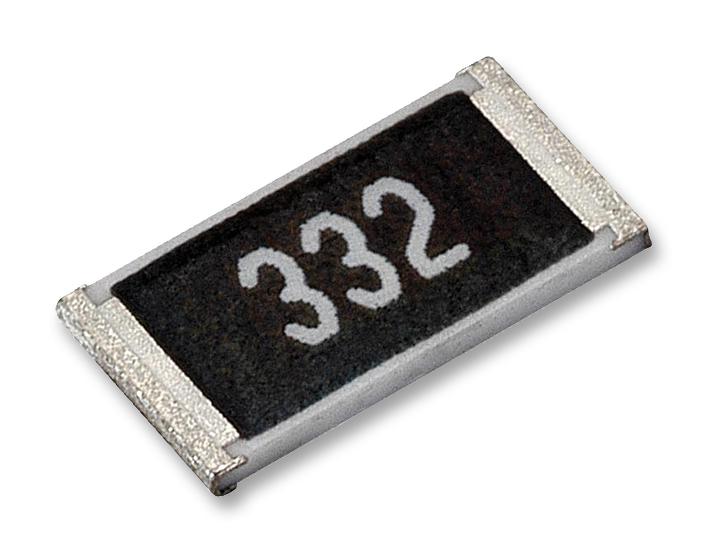

TTElectronics - Welwyn LR1206R033FW Low Value Flat Chip Resistor
The Low Value Flat Chip Resistor from the LR Series is available in standard 2512, 2010, and 1206 sizes, with resistance values down to 0.003 ohms, suitable for sensitive electronic applications. It features leach-resistant solder-plated copper wrap-around terminations, ensuring enhanced durability and stability. This resistor is AEC-Q200 qualified, RoHS compliant, and available in SnPb variants, making it ideal for high-reliability automotive and industrial environments. Its compact form factors make it suitable for dense circuit boards and precision circuitry requiring low resistance and high performance.
TTElectronics - Welwyn LR1206R033FW Low Value Flat Chip Resistor Specifications:
- Resistance range: R003 to 1RO
- Resistance tolerance: <RO1:5%, 2RO1:1%, 2.5%
- Dielectric withstand volts: 200V
- Ambient temperature: -55°C to +150°C
- Resistance values: down to 0.003 ohms
- Size options: LR1206 (3.2 x 0.305 mm), LR2010 (5.2 x 0.38 mm), LR2512 (6.5 x 0.38 mm)
- Solder plating: Nickel barrier layer with copper wrap-around termination
- Operating temperature rise at rated power: 40°C-90°C
- Maximum dimensions: LR1206 (3.2 mm L, 0.305 mm W), LR2010 (5.2 mm L, 0.38 mm W), LR2512 (6.5 mm L, 0.38 mm W)
- Certification: AEC-Q200 qualified, RoHS compliant
- Solder pad dimensions vary by size, e.g., LR1206: 2.0 mm x 1.25 mm, LR2010: 3.0 mm x 1.5 mm, LR2512: 3.7 mm x 7.75 mm
- Terminal: Copper wrap-around with nickel barrier.
Buy the TT Electronics Series LR Low Value Flat Chip Resistor: LR1206R033FW
Purchase the TT Electronics Low Value Flat Chip Resistor from the LR Series online now. Featuring resistance values down to 0.003 ohms and copper wrap-around termination, it offers high reliability, excellent durability, and compatibility with automated assembly processes. Ideal for dense circuit boards, automotive, and industrial applications, this resistor is AEC-Q200 qualified and RoHS compliant. Enjoy fast delivery, secure ordering, and superior technical support when you choose this precision resistor for your demanding electronic projects.
Get TT Electronics LR1206R033FW resistor today—built for precision and long-lasting durability in sensitive electronic applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LR1206R033FW?
You can click on the BUY or RFQ button to purchase LR1206R033FW from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LR1206R033FW?
You can download the LR1206R033FW datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LR1206R033FW?
TTElectronics - Welwyn
