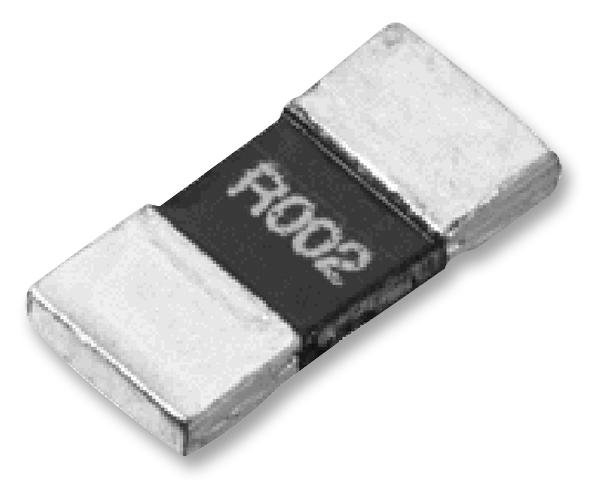

TTElectronics - Welwyn LRMAN0815R005FT4 Low Resistance Resistor
The Low Resistance Metal Alloy Resistor series offers high precision, low thermal EMF, and high-temperature operation up to 170°C. Designed for current sensing in power electronics, these resistors are RoHS compliant, halogen-free, and qualified under AEC-Q200. Available in various sizes such as 0805, 1206, 2512, and 0612, they feature resistance ranges from 0.5 milliohms to 500 milliohms with tolerance levels of 0.5% or 1%. Suitable for both wave and reflow soldering, these resistors provide reliable performance in demanding environments.
TTElectronics - Welwyn LRMAN0815R005FT4 Low Resistance Resistor Specifications:
- Resistance range: 0.5mΩ to 500mΩ
- Power rating @70°C: 1W to 3W depending on size and type
- Tolerance: 0.5% or 1%
- Temperature coefficient: ±50 ppm/°C
- Temperature range: -55°C to +170°C
- Resistance values: Ranges from 0.5mΩ to 500mΩ with standard values listed
- Material: Copper electrode with nickel then tin plating, resistance alloy plate
- Size options: 0805, 1206, 2512, 0612, 2010, 1225
- Dimensions vary per size, e.g., 0805 length 2.0mm, width 1.25mm, height 0.55mm
- RoHS compliant and halogen-free
- Suitable for wave and reflow soldering, with specific profile parameters
- Marking: Ohmic value marked as 'ROO2' for 2mΩ, 'R010' for 10mΩ, etc.
- Insulation resistance >100MΩ, resistant to industrial solvents
- Operating temperature: -55°C to +170°C
- Storage conditions: 5°C to 35°C, 40-75% RH, shelf life 2 years
Buy the TT Electronics Series LRMA Low Resistance Resistor: LRMAN0815R005FT4
Order TT Electronics LRMA series low resistance alloy resistors online today for exceptional current sensing in power electronics. These resistors are RoHS compliant, halogen-free, and qualified under AEC-Q200, ensuring high reliability. Suitable for demanding environments, they feature resistance ranges from 0.5mΩ to 500mΩ, with low thermal EMF, high-temperature operation up to 170°C, and various sizes to fit your application. Easy to integrate with precise resistance values, these resistors deliver performance and durability for industrial and automotive electronics needs.
Get TT Electronics LRMA0815R005FT4 resistors today—designed for high-precision current sensing and reliable power electronics performance.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRMAN0815R005FT4?
You can click on the BUY or RFQ button to purchase LRMAN0815R005FT4 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAN0815R005FT4?
You can download the LRMAN0815R005FT4 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRMAN0815R005FT4?
TTElectronics - Welwyn
