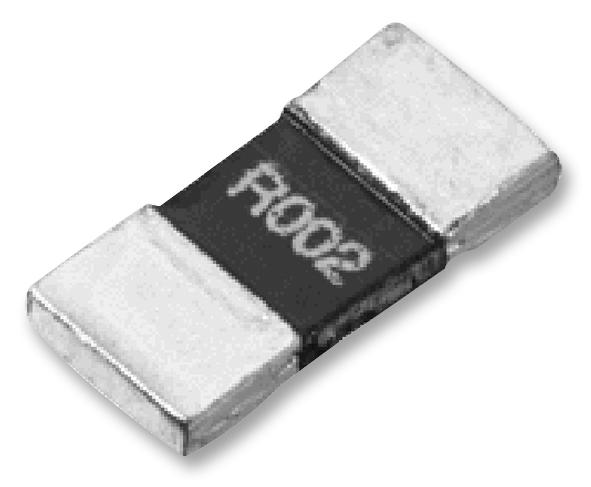

TTElectronics - Welwyn LRMAP2512R009FT4 Low Resistance Resistor
The low resistance metal alloy resistor series offers precise, high-temperature operation with resistance values ranging from 0.5mQ to 500mQ. Ideal for current sensing in power electronics, these resistors are RoHS compliant, halogen-free, and suitable for extensive industrial applications. With models available in various sizes like 2010, 2512, and 1206, they feature high power ratings, low thermal EMF, and excellent stability at temperatures up to 170°C. Their construction includes copper electrodes with nickel and tin plating, ensuring durability and solvent resistance for reliable performance. These resistors are perfect for high-precision, high-current circuit designs requiring stable, low resistance components.
TTElectronics - Welwyn LRMAP2512R009FT4 Low Resistance Resistor Specifications:
- Resistance range: 0.5mQ to 500mQ
- Temperature Rating: -55°C to 170°C
- Power rating @70°C: up to 3W depending on size and model
- Resistance tolerance: ±0.5%, ±1.0%, or ±5%
- TCR (25°C to 125°C): typically ±50 to ±275 ppm/°C
- Size options: 0805, 1206, 2010, 2512, 1225
- Material: Copper electrode with nickel and tin plating
- Insulation Resistance: >100 MΩ
- Soldering: Suitable for wave and IR reflow, peak temperature 255°C to 260°C
- Sizing dimensions vary per model, e.g., 2.0 x 0.6mm for 0805, 3.2 x 1.6mm for 1206
- Wattage: Ranges from 1W to 3W depending on model
- RoHS compliant and halogen free
- Marking: Ohmic value printed with code, e.g., R002 = 2mQ
- Environmental conditions: Storage 5°C-35°C, 40%-75%RH
- Shelf life: 2 years from manufacturing date
Buy the TT Electronics LRMAP2512U–Reliable Low Resistance for Industrial Applications
Purchase the TT Electronics LRMAP2512 low resistance resistor online today for high-precision current sensing and power electronics applications. Featuring resistance values from 0.5mQ to 500mQ, these RoHS compliant and halogen-free resistors are built for high temperature operation up to 170°C. Various sizes such as 2010, 2512, and 1206 are available, offering high power ratings, low thermal EMF, and excellent stability. Ideal for industrial, automotive, and high-current electronic projects requiring reliable, durable resistors that meet strict environmental and safety standards. Shop now to ensure your circuit designs perform optimally with industry-leading components.
Order your TT Electronics SeriesLRMAP2512 resistor today and enhance your power electronics with dependable, high-precision low resistance components.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRMAP2512R009FT4?
You can click on the BUY or RFQ button to purchase LRMAP2512R009FT4 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAP2512R009FT4?
You can download the LRMAP2512R009FT4 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRMAP2512R009FT4?
TTElectronics - Welwyn
