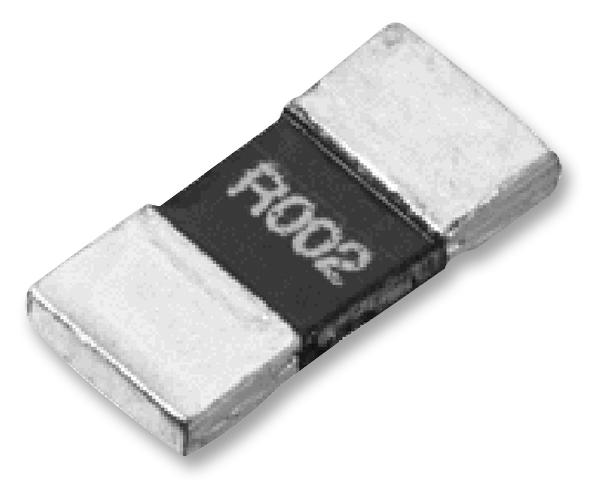

TTElectronics - Welwyn LRMAP2512R13FT4 Low Resistance Alloy Resistor
The LRMAP2512 resistor is a high-precision low resistance metal alloy resistor designed for demanding electronic applications. Offering resistance from 0.5mΩ to 500mΩ, it features high temperature operation up to 170°C, low thermal EMF version, and high power ratings suitable for current sensing in power electronics. RoHS compliant and halogen free, this resistor is available in various sizes including 2512, with dimensions optimized for reliable mounting and performance. It’s suitable for industrial, automation, and electronic circuitry requiring precise resistance and thermal stability.
TTElectronics - Welwyn LRMAP2512R13FT4 Low Resistance Alloy Resistor Specifications:
- Resistance range: 0.5mΩ to 500mΩ
- Resistance tolerance: ±0.5%, ±1%
- Resistance values: standard values include 5, 6, 10, 15, 20, 25, 30, 33, 39, 40, 50, 100, 200, 250, 300, 330, 390, 400, 500 mΩ
- Size: 2512 mm
- Power rating @70°C: 1W (standard), 2W (power version)
- Temperature operation: -55°C to 170°C
- TCR (25°C to 125°C): ±50 to ±2100 ppm/°C depending on model
- RoHS compliant & halogen free
- Construction: Copper electrode with nickel and tin plating, low TCR alloy resistance plate
- Insulation resistance: >100 MΩ
- Soldering: Suitable for wave and IR reflow, preheat at 150-180°C for 60-120s, reflow at 230°C for 20-40s, peak at 255-260°C for 5s
- Marking: Ohmic value marked e.g., R010 for 10mΩ
- Packaging: Tape & reel, 4000/ reel for 2512 sizes
Buy the TT Electronics LRMAP2512 U–Reliable Low Resistance Alloy Resistors for Industrial Applications
Enhance your electronic designs with TT Electronics LRMAP2512 low resistance alloy resistors, offering precise resistance from 0.5mΩ to 500mΩ, high temperature operation up to 170°C, and RoHS compliance. Perfect for current sensing in power electronics and industrial applications, these resistors are available in 2512 sizes with various power ratings. Manufactured to meet strict standards, they ensure durability, thermal stability, and reliable performance in demanding environments. Order now to benefit from optimal resistance accuracy and robust construction for your projects.
Buy TT Electronics LRMAP2512 resistor now and experience unmatched reliability, precise resistance, and high thermal stability for demanding electronic circuits.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRMAP2512R13FT4?
You can click on the BUY or RFQ button to purchase LRMAP2512R13FT4 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAP2512R13FT4?
You can download the LRMAP2512R13FT4 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRMAP2512R13FT4?
TTElectronics - Welwyn
