TTElectronics - Welwyn MFC0603R005FT5 Ceramic Chip Resistors
The metal foil on ceramic chip resistors in the MFC series offer small sizes, high power density, and excellent stability for power electronics and current sensing applications. They are available in three sizes: 0603, 2817, and 4320, with ratings up to 25W at 70°C. These resistors feature tight resistance tolerances, low TCR down to +30ppm/°C, and resistance range options for varied industrial uses. Compliant with RoHS3, they are suitable for applications demanding reliable and durable high-performance resistors. Their construction involves metal foil bonded onto alumina substrates with protected wrap-around terminations ensuring solvent resistance and durability.
TTElectronics - Welwyn MFC0603R005FT5 Ceramic Chip Resistors Specifications:
- Size: 0603, 2817, 4320
- Power rating @70°C: 5W for 0603, 5W for 2817, 25W for 4320
- Resistance range: 5mΩ to 50Ω
- Tolerance: ±1%
- TCR: down to +30ppm/°C
- Operating temperature: -55°C to +155°C
- Maximum overload: 5x rated power for 5 seconds
- Moisture resistance: 1000 hours @85°C, 85% RH
- Solder resistance: 260°C for 10 seconds
- Insulation resistance: >100MΩ at 100V DC
- Physical dimensions vary by size, with specific lengths, widths, heights, and pad sizes listed for each
- Construction: Metal foil bonded onto alumina with wrap-around soldered terminations
- Compliance: RoHS3, Pb-free

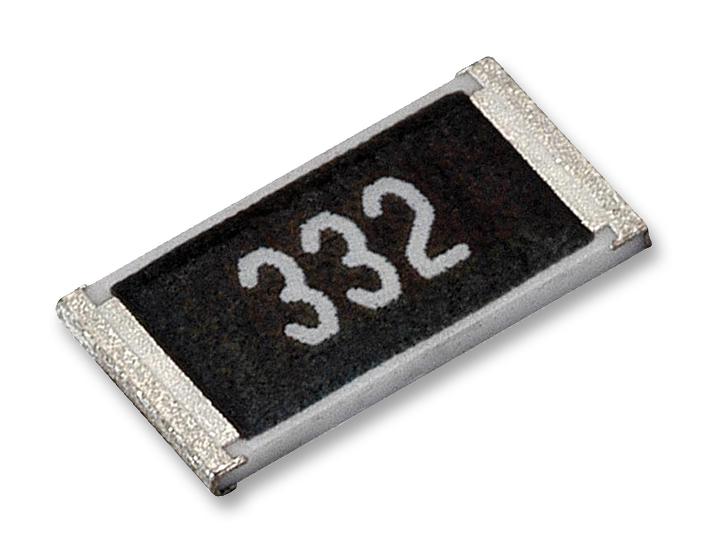

Buy the TT Electronics MFC0603 – Reliable Ceramic Chip Resistors for Industrial Applications
Enhance your electronic project or industrial system with TT Electronics ceramic chip resistors. The MFC series offers compact size, high power density, and precise resistance with low TCR, ideal for power electronics, current sensing, and precision applications. These resistors are RoHS3 compliant, Pb-free, and built for durability with solvent-resistant constructions. Available in sizes 0603, 2817, and 4320, they provide excellent thermal stability and overload capacity. Purchase online today for reliable, high-performance resistor solutions tailored to demanding industrial environments.
Buy TT Electronics MFC0603 resistors now and experience unmatched reliability and performance in power electronics and sensing systems.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn MFC0603R005FT5?
You can click on the BUY or RFQ button to purchase MFC0603R005FT5 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part MFC0603R005FT5?
You can download the MFC0603R005FT5 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of MFC0603R005FT5?
TTElectronics - Welwyn
