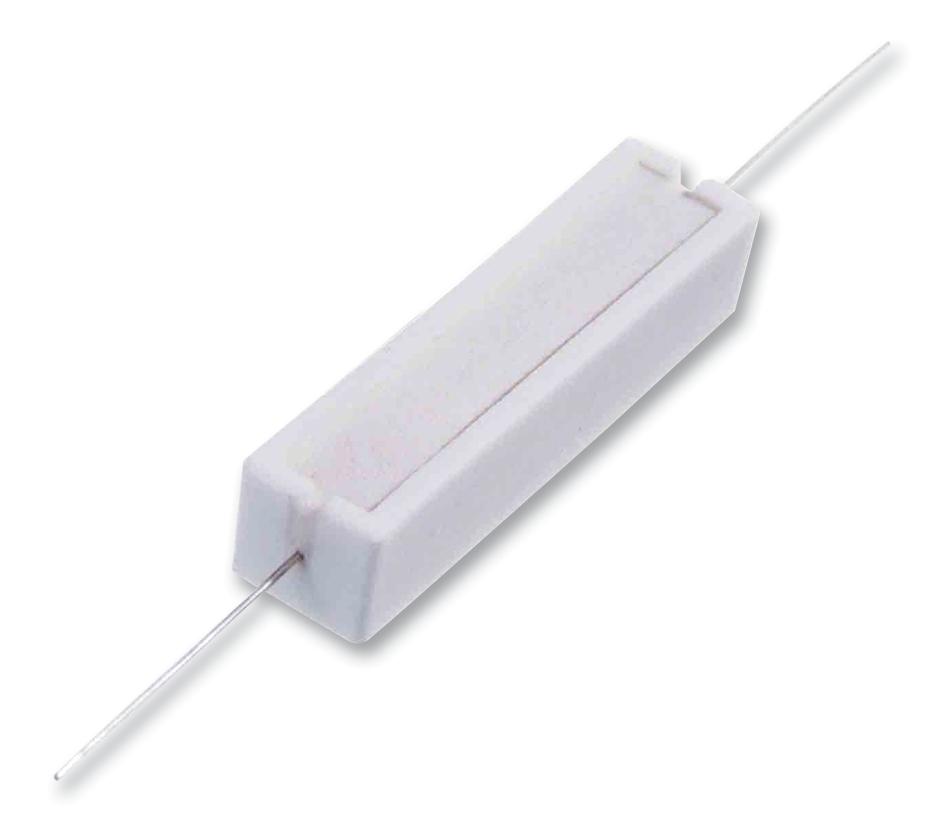

TTElectronics - Welwyn SQP7S15RJB15 Ceramic Power Resistor
The ceramic case resistors from the SQP / CAF / CAW Series are high-power, RoHS compliant wirewound and metal oxide resistors suitable for various electrical applications. With power ratings up to 25 watts and resistance ranges from OR1 to 200K ohms, these resistors feature flameproof ceramic cases, inorganic potting, and high overload capabilities. They are designed to operate at ambient temperatures from -55°C to +155°C, with reliable soldered terminals, high thermal impedance, and outstanding performance in damp heat, rapid temperature changes, and short-term overload conditions. Ideal for precision, durability, and safety-critical environments.
TTElectronics - Welwyn SQP7S15RJB15 Ceramic Power Resistor Specifications:
- Power rating at 70°C: 2W to 25W
- Resistance range: OR1 to 200K ohms
- Voltage rating: 250V to 750V DC or AC RMS
- Ambient temperature range: -55°C to +155°C
- Ceramic case with inorganic potting
- Termination: Tinned copper lead wires
- Resistance tolerance: ±5%, ±10%
- High overload capability with short-term overload up to 6.25x Pr for 5 seconds
- Maximum operating voltage: 250V to 750V
- Physical dimensions vary by type, with typical sizes up to 61mm in length
- Isolation voltage: 1000V
- Flameproof and RoHS compliant design
- Thermal impedance: Variable, designed for high thermal performance
- Tested for damp heat, rapid temperature changes, and solder heat resistance
- Marking: Resistance value and tolerance marked on the upper surface
- Constructed with high purity ceramic and wirewound or metal oxide film elements
Buy the TT Electronics Series SQP Resistance: SQP7S15RJB15
Purchase the TT Electronics Series SQP7S15RJB15 ceramic power resistor online today for high overload capacity, flameproof ceramic case, and resistance up to 200K ohms. Designed for demanding electrical environments, this resistor offers excellent thermal performance, RoHS compliance, and robust soldered terminations. Ideal for industrial, automation, and safety-critical applications, its compact size and high reliability ensure durability in various temperature ranges from -55°C to +155°C. Secure your supply of high-quality resistors with our fast online ordering today and enhance your project’s dependability and safety.
Order your TT Electronics Series SQP7S15RJB15 high-power ceramic resistor today and ensure reliable, safe performance for your industrial projects.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn SQP7S15RJB15?
You can click on the BUY or RFQ button to purchase SQP7S15RJB15 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part SQP7S15RJB15?
You can download the SQP7S15RJB15 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of SQP7S15RJB15?
TTElectronics - Welwyn
