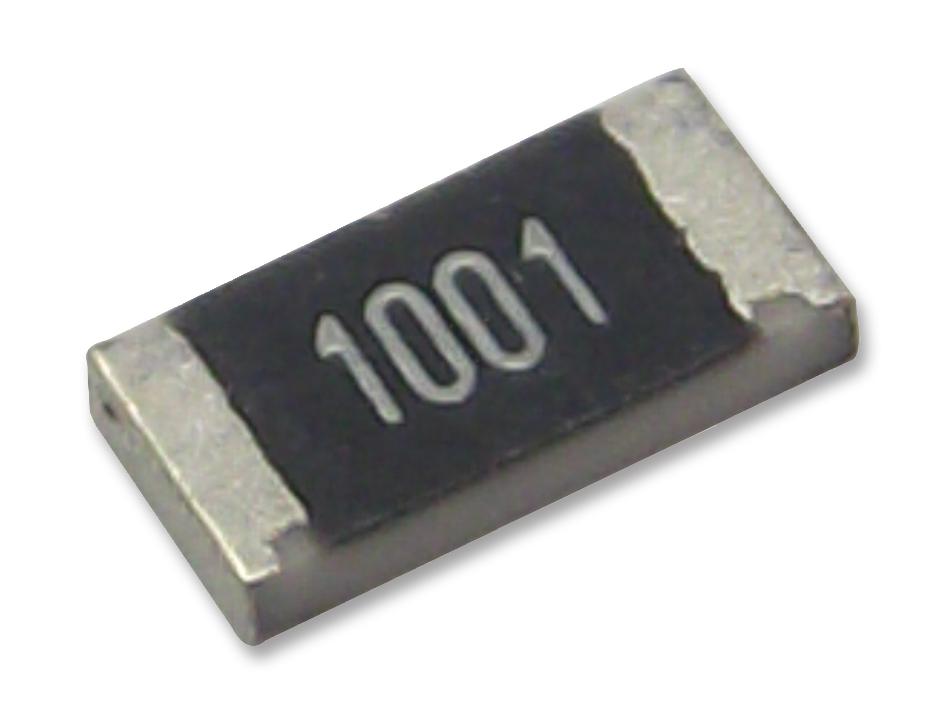

TTElectronics - Welwyn WCR1206150KFI Surface-Mounted Resistor
The WCR Series general-purpose surface-mounted resistors offer high reliability, wide size and ohmic value range, and wrap-around terminations suitable for various electronic applications. Constructed with a high alumina substrate, ruthenium oxide resistance element, and plated terminations, these Pb-free resistors comply with RoHS3 and EU directives. They feature a resistance range from 10 ohms to 1 megaohm, with TCR values varying based on resistance. Available in multiple sizes including 0201, 0402, 0603, up to 2512, these resistors are ideal for high-density surface-mount designs requiring stable electrical performance.
TTElectronics - Welwyn WCR1206150KFI Surface-Mounted Resistor Specifications:
- Resistance Range: 10R to 1MO
- Resistance Tolerance: ±1%
- Resistance Coefficient (TCR): -400 to +600ppm/°C for 1R-10R, +200ppm/°C for 11R-100R, +300ppm/°C for 3M3-10M
- Sizes Available: 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Resistance Values: 10 ohms to 1 megaohm
- Maximum Working Voltage: 50V (0201), 100V (0402), 200V (0603), 400V (1206, 1210, 2010), 500V (2512)
- Operating Temperature Range: -55°C to +155°C
- Construction: Alumina substrate, ruthenium oxide element, plated terminations, protected by epoxy lacquer
- Reliability: Meets IEC standards for solderability and mechanical strength, RoHS compliant
- Marking: 3-digit code for resistance, small resistors are unmarked, shielded with epoxy coating
- Packaging: Tape mounted, reels up to 250mm, suitable for automated pick-and-place assembly.
Buy the TT Electronics Series WCR Resistive: WCR1206-150KFI
Order the TT Electronics WCR Series surface-mounted resistors online today to ensure your electronic projects benefit from high quality, wide resistance range, and reliable performance. These resistors are ideal for compact designs, offering precise tolerances and durability. Available in multiple sizes including 1206, 1210, and 2512, they are perfect for high-density applications requiring stable electrical characteristics. Take advantage of quick delivery and excellent customer support when you purchase these RoHS-compliant resistors online today.
Buy TT Electronics WCR1206-150KFI resistors now and experience unmatched reliability and performance for your surface-mount applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WCR1206150KFI?
You can click on the BUY or RFQ button to purchase WCR1206150KFI from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WCR1206150KFI?
You can download the WCR1206150KFI datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WCR1206150KFI?
TTElectronics - Welwyn
