TTElectronics - Welwyn WDBR147RKT Power Resistor
The Welwyn WDBR1 Series are ultra-low profile thick film power resistors designed for high-power applications such as dynamic braking, inrush limiting, and snubber circuits. These resistors feature a single fixing heat sink mount, with terminal options including solder pads, flying leads, and push-on connectors. They offer low inductance and high isolation, maintaining performance even after failsafe overload fusing. Resistance values range from 12 to 150 ohms, with rated powers from 500W up to 7kW, and a pulse power rating of 1.5kW. The power rating on heat sinks is 180W, with an operating temperature of 365°C and a temperature coefficient (TCR) range from +500 to +600 ppm/°C. The resistors are available in 10% tolerance versions, offering high power handling suitable for demanding electrical environments.
TTElectronics - Welwyn WDBR147RKT Power Resistor Specifications:
- Resistance range: 12, 15, 20, 22, 25, 47, 50, 100, 150 ohms
- Power rating on heatsink: 180W
- Peak power: 500W to 7kW
- Pulse power rating: 1.5kW
- Maximum element temperature: 365°C
- Ambient temperature range: -55°C to +200°C
- Resistance tolerance: 10%
- Construction: Thick-film on stainless steel substrate
- Terminations: Solder pad, flying leads, push-on connectors
- Operating voltage and dielectric withstand: 1.5kV DC/peak
- Inductance: Low inductance design
- RoHS compliant, non-flammable construction
- Mechanical dimensions: Variable dimensions; fixing hole center distance is 16.68mm for most models
- TCR: +500 to +600 ppm/°C

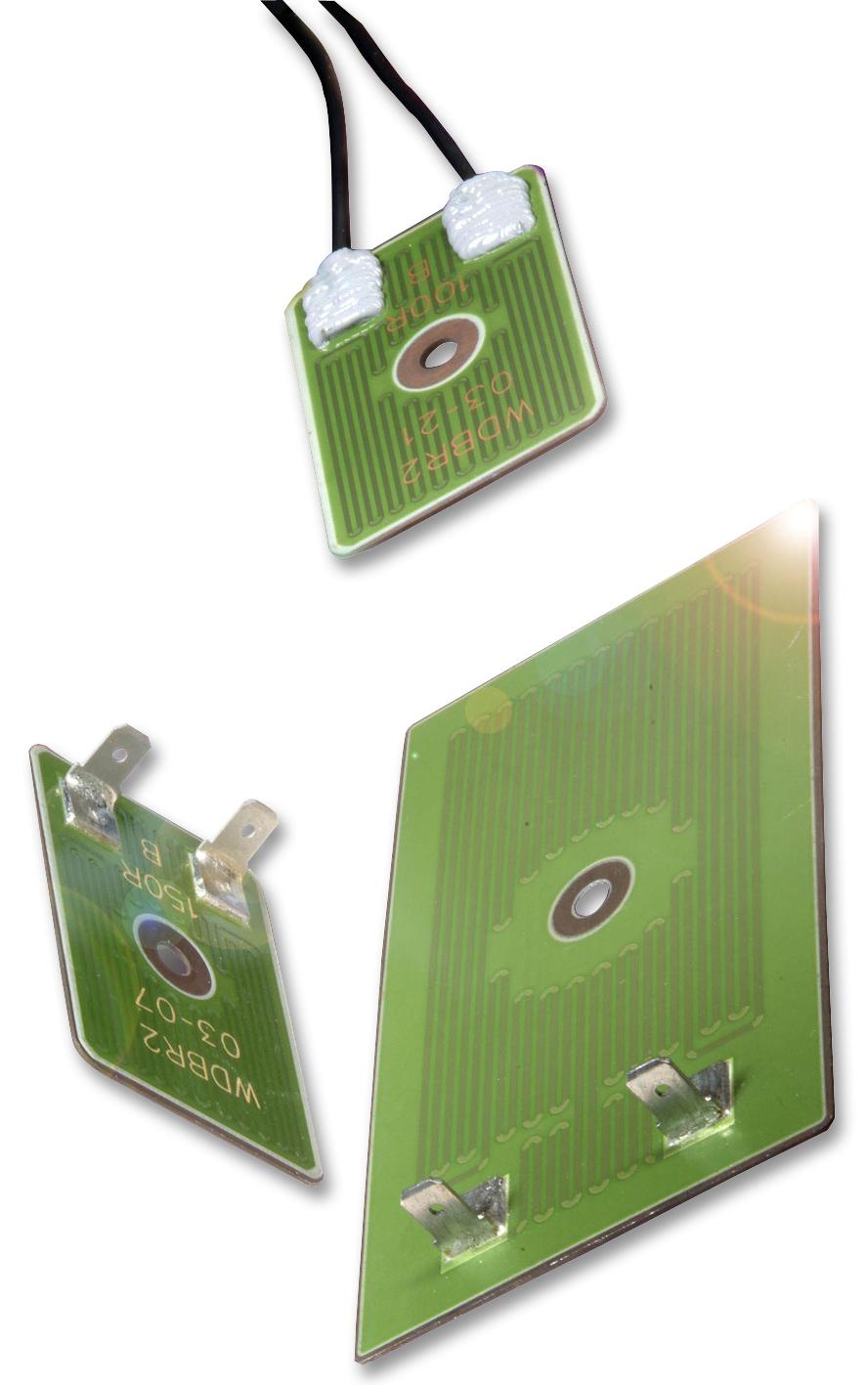

Buy the TT Electronics WDBR147RKT – Reliable Power Resistor for Industrial Applications
Discover the high-performance WDBR147RKT ultra-low profile power resistor from TT Electronics. Designed for demanding electrical environments, it provides high power handling, excellent thermal stability, and multiple termination options. Perfect for dynamic braking, inrush limiting, and snubber circuits, this resistor guarantees durability, low inductance, and high isolation. With RoHS compliance and rugged construction, it is ideal for applications where space efficiency and reliability are critical, ensuring your electrical systems operate smoothly and safely at peak performance. Purchase today for reliable, industrial-grade power resistance.
Order your TT Electronics Series WDBR147RKT high-power resistor today and ensure your industrial projects benefit from dependable, high thermal performance.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WDBR147RKT?
You can click on the BUY or RFQ button to purchase WDBR147RKT from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WDBR147RKT?
You can download the WDBR147RKT datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WDBR147RKT?
TTElectronics - Welwyn
