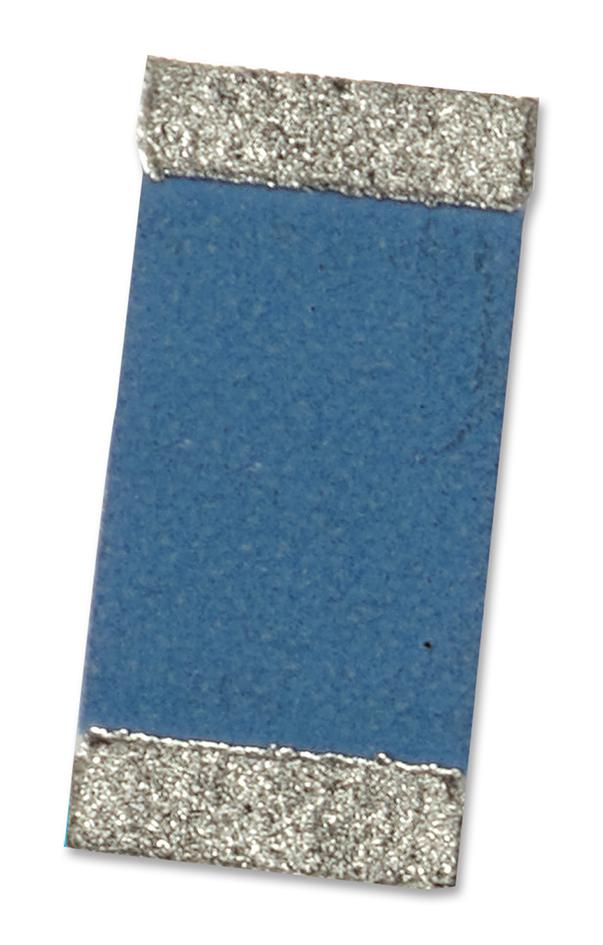

TTElectronics - Welwyn WINT0805LF111000A precision thin film resistor
Water Insoluble Nitride Thin Film Precision Chip Resistors from the WIN Series offer excellent moisture resistance, high stability in humid environments, and superior passivation. Ideal for demanding applications, these resistors feature low TCR values, tight tolerance, and anti-sulfur terminations. They are suitable for automated screening and meet industry standards such as MIL-PRF-55342 and AEC-Q200. Designed with alumina substrate construction, electroplated terminations, and rated up to 0.33W, these devices ensure reliable performance in harsh conditions, making them perfect for precision electronic circuits.
TTElectronics - Welwyn WINT0805LF111000A precision thin film resistor Specifications:
- Resistance Range: 5R to 1MΩ
- Power Rating at 70°C: 0.1W to 0.33W
- Resistance Tolerance: ±0.05% to ±0.5%
- TCR: ±10ppm/°C to ±450ppm/°C
- Dimensions (mm): L 1.58, W 0.68, T 0.18 (inch: L 0.062, W 0.027, T 0.007)
- Construction: Alumina substrate with thin film resistive element
- Termination Finish: Nickel barrier with 100% matt tin or 60/40 SnPb
- Temperature Range: -65°C to +150°C
- Compliance: RoHS3, Pb-free
- Stability: <0.1% after 2000 hours at 85°C, 85% RH
Buy the Buy TT Electronics WIN Series Resistors Part Number WINT0805LF111000A Online
Purchase the TT Electronics WIN Series precision thin film resistor WINT0805LF111000A online today. Designed for excellent moisture resistance and stability, these resistors feature tight tolerance of ±0.05%, TCR as low as ±10ppm/°C, and are suitable for demanding environments. With alumina substrate construction, electroplated nickel barrier, and Pb-free finish, they meet industry standards and are ideal for high-reliability applications. Order now to enhance your electronic designs with proven performance and durability.
Buy TT Electronics WIN Series WINT0805LF111000A resistors now and ensure high stability and moisture resistance for your precision electronic projects.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WINT0805LF111000A?
You can click on the BUY or RFQ button to purchase WINT0805LF111000A from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WINT0805LF111000A?
You can download the WINT0805LF111000A datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WINT0805LF111000A?
TTElectronics - Welwyn
