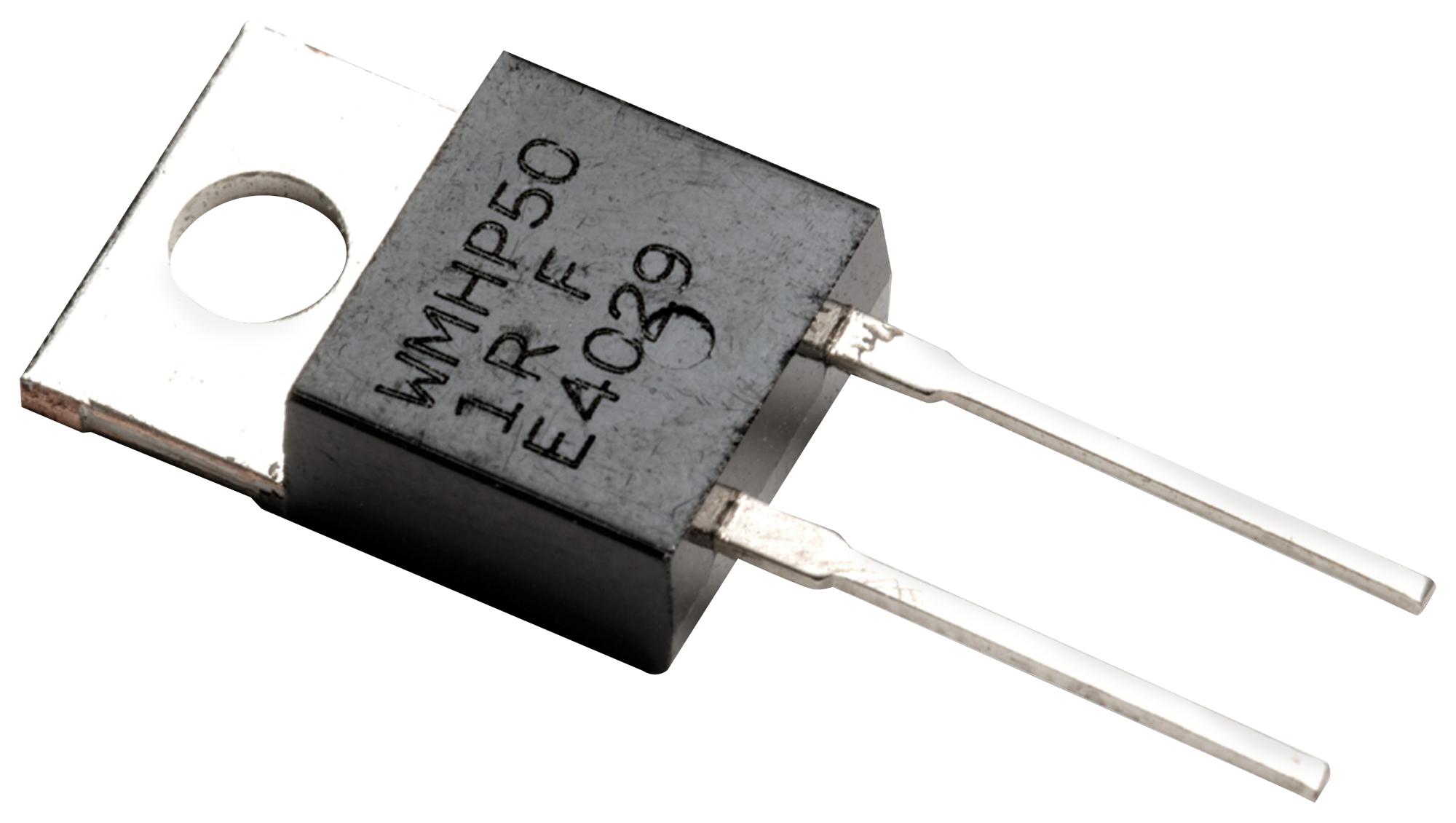

TTElectronics - Welwyn WMHP3547RF High Power Resistor
The Welwyn WMHP series consists of high-power, through-hole mount resistors designed for high-temperature and high-power applications. These resistors are available in various case styles, including WMHP20, WMHP35, WMHP50 (TO-220), and WMHP100 (TO-247). They offer resistance values from 0.05 ohms to 10 kΩ, covering E24 decade values. Power ratings range from 20W (without heatsink) to 100W (with heatsink). They feature tolerance levels of ±1% or ±5%, with operating temperatures spanning from -65°C to 175°C. The temperature coefficient of resistance varies up to ±1000ppm/°C. Key electrical specifications include a dielectric strength of 1800V, insulation resistance over 10 GΩ, limiting element voltages of 350V for the smaller models and 700V for the largest. These resistors are suitable for demanding high-power applications requiring reliable performance and thermal stability.
TTElectronics - Welwyn WMHP3547RF High Power Resistor Specifications:
- Power ratings: 20W (without heatsink), 35W, 50W, 100W (with heatsink)
- Package styles: TO-220, TO-247
- Resistance range: 0.05 ohms to 10K ohms (E24 values)
- Tolerance: ±1% or ±5%
- Temperature range: -65°C to 175°C
- Temperature coefficient: up to ±1000ppm/°C
- Dielectric strength: 1800V AC RMS for 60s
- Insulation resistance: >10 GΩ
- Limiting element voltage: 350V to 700V
- Physical dimensions: TO-220 and TO-247 sizes as per datasheet
- Features: Non-inductive thick film technology, very low thermal resistance, high frequency, fast pulse suitability
- RoHS compliant, lead-free
Buy the Welwyn WMHP Series High Power Resistors – Reliable Thermal Management for Industrial Applications
Order Welwyn WMHP series high power resistors online today to ensure reliable thermal management and high stability in your industrial applications. These resistors are available in various power ratings from 20W to 100W with case styles like TO-220 and TO-247. Featuring low thermal resistance, wide temperature ranges, and high dielectric strength, they are ideal for demanding high-power electronic designs. Easy to mount and RoHS compliant, these resistors guarantee long-lasting, stable performance in high-frequency and pulse applications. Purchase now and enhance your system’s thermal efficiency and reliability with just a few clicks!
Get Welwyn WMHP series resistors today—built for high power and thermal stability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WMHP3547RF?
You can click on the BUY or RFQ button to purchase WMHP3547RF from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WMHP3547RF?
You can download the WMHP3547RF datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WMHP3547RF?
TTElectronics - Welwyn
