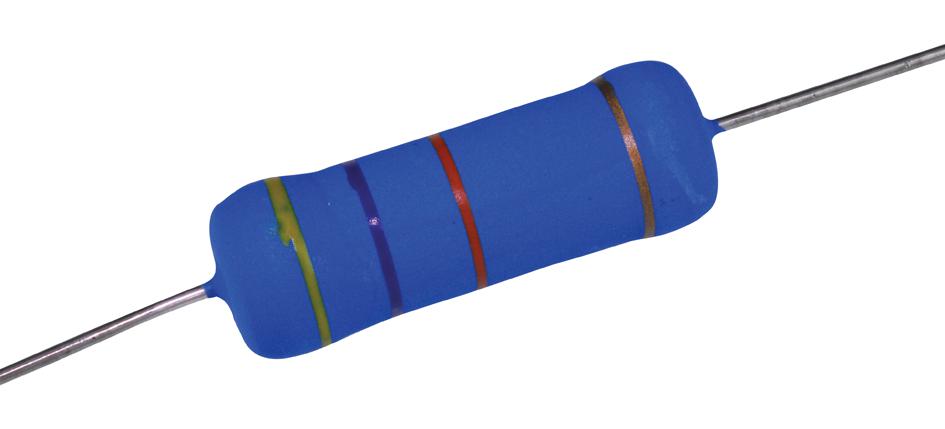

TTElectronics - Welwyn WMO5S47KJA05 Metal Oxide Resistor
The WMO5S-47KJA05 is a compact, flameproof metal oxide resistor rated at 5W with a resistance value of 47kΩ. Constructed with a resistive film on a high-purity ceramic rod, it features force-fitted end caps welded to termination wires, and a cement coating for protection. The resistor's color-coded IEC62 markings indicate precision and tolerance. Its design ensures resistance to industrial solvents, with a coating that resists combustion even under overload. It offers excellent pulse handling, small size, and high power dissipation, ideal for industrial and electronic applications requiring reliable performance under demanding conditions.
TTElectronics - Welwyn WMO5S47KJA05 Metal Oxide Resistor Specifications:
- Power Rating: 5W
- Resistance Value: 47kΩ
- Resistance Tolerance: 5%
- Construction: Resistive film on high-purity ceramic rod
- End Caps: Force fitted and welded
- Protection Coating: Cement layer
- Marking: Color coded IEC62 bands
- Resistance to Solvents: Yes
- Flameproof: Yes, coating will not burn
- Operating Temperature: -55°C to +155°C
- Dimension: Approximate size based on series, small size for power rating
- Pulse Handling: Good capability
- Overload Resistance: Short-term overload up to 5 seconds
- Derating: To be considered based on application temperature
- Certifications: RoHS compliant
Buy the Buy TT Electronics WMO5S47KJA05 Online
Purchase the TT Electronics WMO5S-47KJA05 metal oxide resistor online today for reliable, flameproof performance. With a power rating of 5W and resistance of 47kΩ, it's ideal for industrial and electronic applications. Its construction features resistive film deposited on a ceramic rod, with force-fitted end caps welded to termination wires, and a protective cement coating. The resistor is resistant to cleaning solvents, capable of handling high pulse loads, and rated to operate safely from -55°C to +155°C. Easy to incorporate into various designs, ensuring durability, safety, and consistent performance in demanding environments.
Order your TT Electronics WMO5S47KJA05 today and give your projects the dependable quality they deserve, with high power dissipation and flameproof protection.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WMO5S47KJA05?
You can click on the BUY or RFQ button to purchase WMO5S47KJA05 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WMO5S47KJA05?
You can download the WMO5S47KJA05 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WMO5S47KJA05?
TTElectronics - Welwyn
