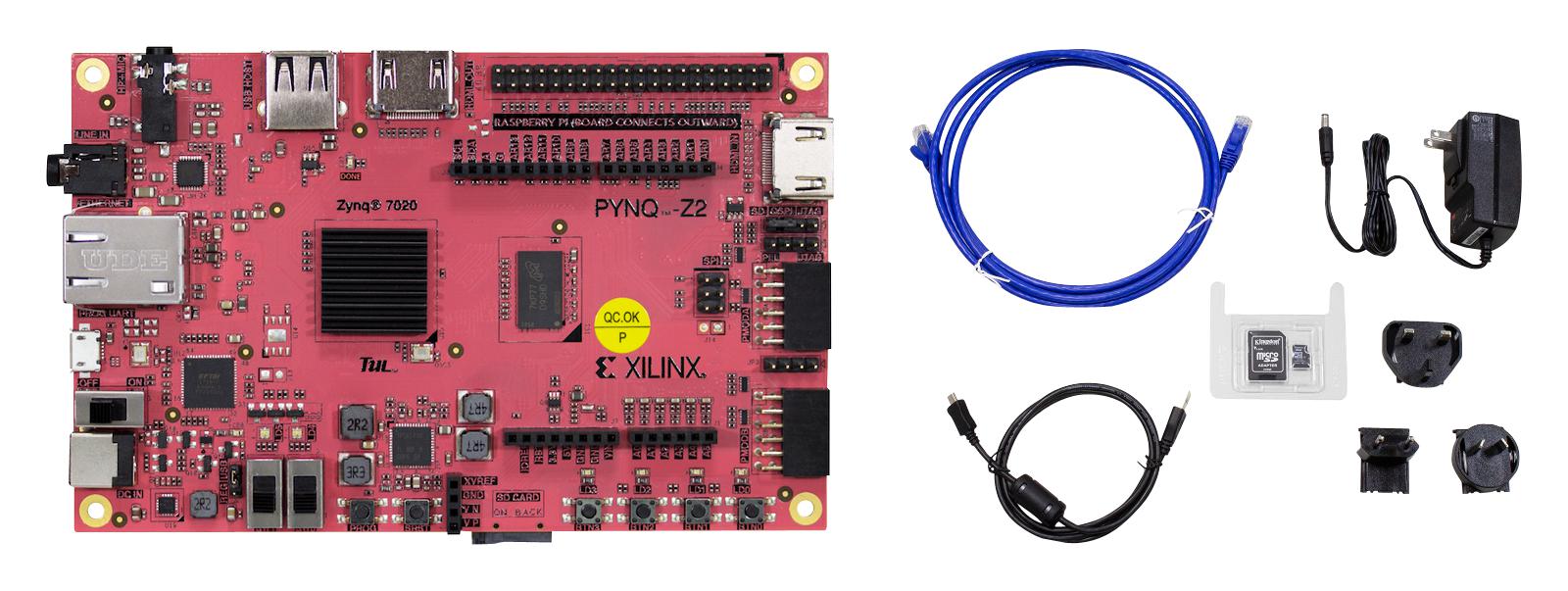

TUL CORPORATION 1M1M000127DVB PYNQ Z2 Basic Kit
The TUL PYNQ Z2 Basic Kit provides a comprehensive platform for FPGA development and experimentation. Equipped with a dual-core ARM Cortex-A9 processor and a substantial Artix-7 FPGA, this kit enables users to create custom hardware solutions. It boasts extensive connectivity, including HDMI input/output, Gigabit Ethernet, USB host functionality, and compatibility with Arduino and Raspberry Pi ecosystems. The included accessories, such as a microSD card and AC/DC adapter, facilitate immediate project commencement. This board is well-suited for applications in embedded systems, industrial automation, and custom hardware design.
TUL CORPORATION 1M1M000127DVB PYNQ Z2 Basic Kit Specifications:
- Processor: Dual-Core ARM Cortex-A9
- FPGA: 1.3M reconfigurable gates
- Memory: 512MB DDR3 / 128Mbit FLASH
- Storage: Micro SD card slot
- Video: HDMI In / HDMI Out
- Audio: HP+Mic, Line in, ADAU1761 AUDIO codec
- Network: 10/100/1000 Ethernet
- Expansion: USB Host connected to ARM PS
- Interfaces_GPIO: Arduino Header, Raspberry Pi, Pmods x2
- Other_I_O: 6x User LEDs, 4x Pushbuttons, 2x Switches
- Dimensions: 87mm x 140mm
- EAN_Code: 4713436170853
- Accessories_1: Micro SD card 8G (image preload)
- Accessories_2: AC/DC adapter
- Accessories_3: USB type-A to Micro USB Cable
- Accessories_4: Ethernet cable
Buy the 1M1-M000127DVB TUL CORPORATION PYNQ Z2 Basic Kit | myMectronic
Securely purchase the TUL PYNQ Z2 Basic Kit and accelerate your FPGA development projects.
Buy Now
Frequently Asked Questions
Where can I buy TUL CORPORATION 1M1M000127DVB?
You can click on the BUY or RFQ button to purchase 1M1M000127DVB from an authorized TUL CORPORATION distributor.
How do I troubleshoot issues or seek technical support for part 1M1M000127DVB?
You can download the 1M1M000127DVB datasheet or visit the TUL CORPORATION website for support.
Who is the manufacturer of 1M1M000127DVB?
TUL CORPORATION
