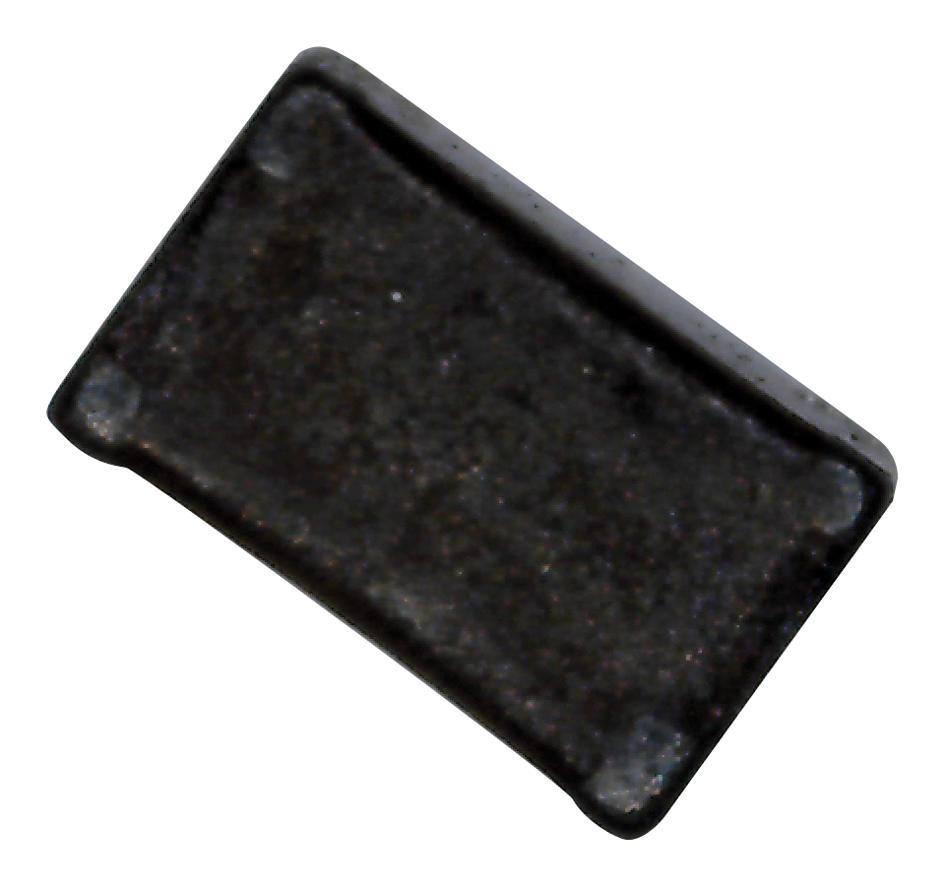

Taiyo Yuden BRC2012T1R0M Chip Power Inductor
The TAIYO YUDEN BRC2012T1R0M is a wire-wound chip power inductor specifically engineered for reliable power delivery in various electronic devices. Its robust construction and compact 2012 form factor make it ideal for space-constrained applications. With a 1.0uH inductance and a rated current of 1.4A, this inductor provides efficient performance while maintaining stability. The BRC2012T1R0M is RoHS compliant, ensuring environmental responsibility and suitability for a broad range of modern electronic designs. It is commonly used in power management circuits, DC-DC converters, and filtering applications within consumer electronics, industrial equipment, and automotive systems.
Taiyo Yuden BRC2012T1R0M Chip Power Inductor Specifications:
- Inductance: 1.0 uH ± 20 %
- Case Size (EIA/JIS): 0805/2012
- Rated Current (max): 1.4 A
- Saturation Current (max): 1.5 A (⊿L=30%)
- Temperature Rise Current (max): 1.4 A (⊿T=40℃)
- DC Resistance (max): 78 mΩ
- DC Resistance (typ): 60 mΩ
- LQ Measuring Frequency: 1 MHz
- Self Resonant Frequency (min): 490 MHz
- Operating Temp. Range: -40 to +105 ℃
- Temperature characteristic: ± 15 % (Inductance change)
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 2.0 ±0.2 mm
- Dimension W: 1.25 ±0.2 mm
- Dimension T: Max 1.4 mm
- Dimension e: 0.5 ±0.2 mm
Buy the BRC2012T1R0M TAIYO YUDEN Chip Power Inductor | myMectronic
Purchase the TAIYO YUDEN BRC2012T1R0M Chip Power Inductor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Taiyo Yuden BRC2012T1R0M?
You can click on the BUY or RFQ button to purchase BRC2012T1R0M from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part BRC2012T1R0M?
You can download the BRC2012T1R0M datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of BRC2012T1R0M?
Taiyo Yuden
