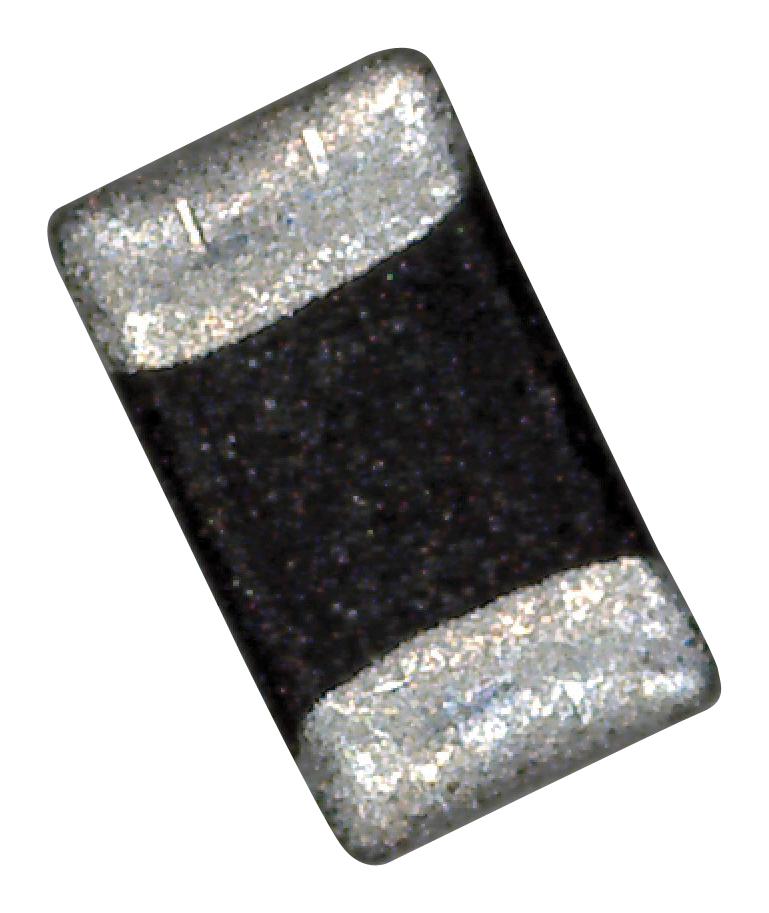

Taiyo Yuden BRL2012T101M Chip Power Inductor
The Taiyo Yuden BRL2012T101M is a wire-wound chip power inductor designed for a wide range of electronic applications, including AV equipment, OA equipment, and information communication equipment. This inductor offers a 100uH inductance, a rated current of 85mA, and a compact 2012 size. Its robust construction and reliable performance make it suitable for demanding environments. The BRL2012T101M is RoHS compliant and halogen-free, ensuring environmental responsibility. It is ideal for power management circuits and filtering applications where space is limited and high efficiency is required.
Taiyo Yuden BRL2012T101M Chip Power Inductor Specifications:
- Inductance: 100 uH ± 20 %
- Case Size (EIA/JIS): 0805/2012
- Rated Current (max): 85 mA
- Saturation Current (max): 85 mA (⊿L=30%)
- Temperature Rise Current (max): 85 mA (⊿T=40℃)
- DC Resistance (max): 10.01 Ω
- DC Resistance (typ): 7.7 Ω
- LQ Measuring Frequency: 0.796 MHz
- Self Resonant Frequency (min): 6 MHz
- Operating Temperature Range: -40 to +105 ℃
- Temperature Characteristic: ± 15 %
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 2.0 ±0.2 mm
- Dimension W: 1.25 ±0.2 mm
- Dimension T: Max 1.0 mm
- Dimension e: 0.5 ±0.2 mm
Buy the BRL2012T101M Taiyo Yuden Chip Power Inductor | myMectronic
Purchase the Taiyo Yuden BRL2012T101M securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Taiyo Yuden BRL2012T101M?
You can click on the BUY or RFQ button to purchase BRL2012T101M from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part BRL2012T101M?
You can download the BRL2012T101M datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of BRL2012T101M?
Taiyo Yuden
