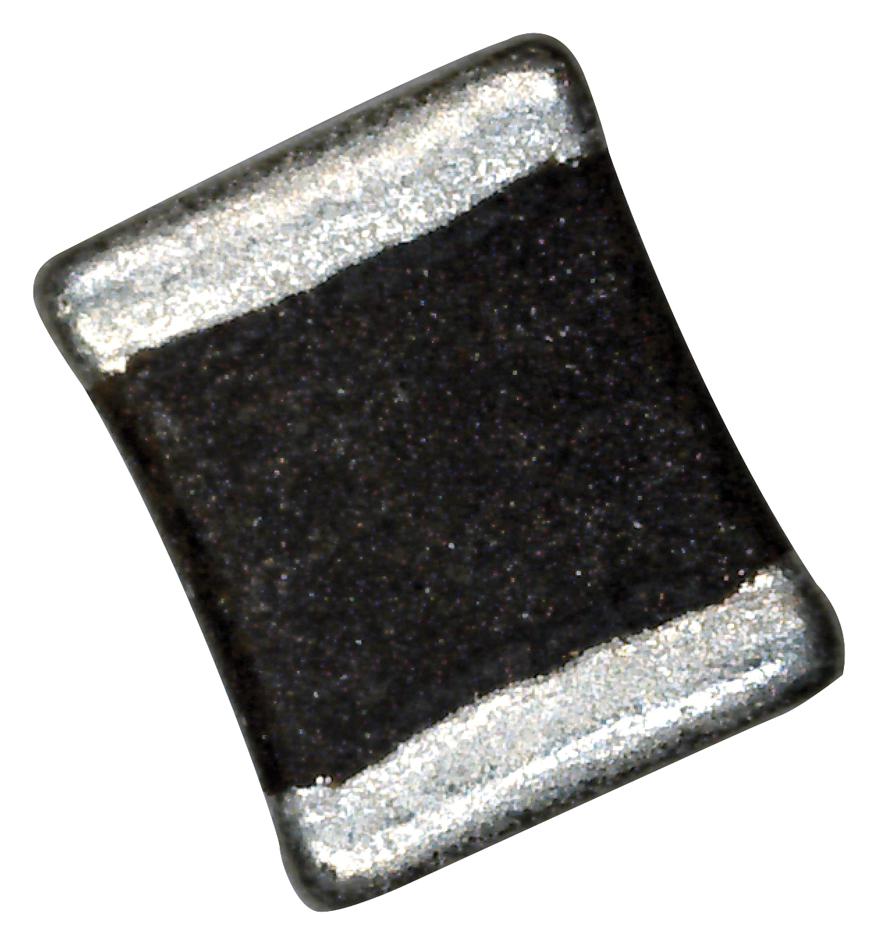

Taiyo Yuden CB2518T100K wire wound power inductor
The CB2518T100K is a wire-wound chip power inductor designed for electronic applications, featuring a 10 µH inductance with a 10% tolerance. Its compact size measures 2.5 mm in length, 1.8 mm in width, and 1.8 mm in height, suitable for surface-mount technology. This high-quality component offers a maximum DC resistance of 0.3259 ohms, a saturation current of 250 mA, and a temperature rise current of 820 mA, operating reliably from -40°C to +105°C. It complies with RoHS2 and REACH standards, is halogen-free, and ideal for power management in compact electronic devices.
Taiyo Yuden CB2518T100K wire wound power inductor Specifications:
- Inductance: 10 µH ±10%
- Dimensions: Length 2.5 mm, Width 1.8 mm, Height 1.8 mm
- Case Size (EIA/JIS): 1007/2518
- Rated Current: 0.25A
- Saturation Current: 250 mA
- Temperature Rise Current: 820 mA
- DC Resistance: Typical 0.259 ohms, Max 0.3259 ohms
- Self Resonant Frequency: 30 MHz
- Operating Temp Range: -40°C to +105°C
- RoHS2 & REACH compliant
- Halogen free, suitable for environmentally conscious applications
Buy the Buy TAIYO YUDEN Wire Wound Power Inductor Part Number CB2518T100K Online
Enhance your electronic projects with the TAIYO YUDEN CB2518T100K. This 10µH wire wound power inductor offers high current capacity, low resistance, and reliable performance across a wide temperature range. Its compact size makes it ideal for space-constrained applications, ensuring efficient power management. RoHS2 and REACH compliant, halogen free, it is suitable for a variety of electronic devices including power supplies, medical equipment, and consumer electronics. Purchase online today for quick delivery and premium quality.
Buy TAIYO YUDEN CB2518T100K now and experience unmatched reliability and power efficiency in your electronic designs.
Frequently Asked Questions
Where can I buy Taiyo Yuden CB2518T100K?
You can click on the BUY or RFQ button to purchase CB2518T100K from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part CB2518T100K?
You can download the CB2518T100K datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of CB2518T100K?
Taiyo Yuden
