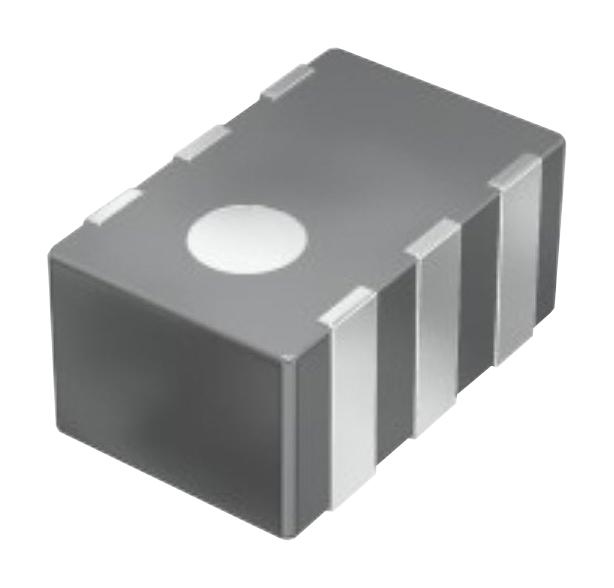

Taiyo Yuden FI168P245030T Wireless Diplexer
This multilayer ceramic diplexer is designed for Bluetooth and Wi-Fi applications, offering a compact size of 1.6x0.8x0.65mm. It features two passbands with high attenuation and low insertion loss, ensuring minimal signal interference across frequencies from 1558 to 1610 MHz and 4900 to 5950 MHz. The device supports operating temperatures from -40°C to 85°C, is RoHS and REACH compliant, halogen-free, and suitable for mass production with standard taping packaging of 4000 units. Its robust electrical characteristics make it ideal for integrated wireless communication systems, providing excellent impedance matching and signal isolation.
Taiyo Yuden FI168P245030T Wireless Diplexer Specifications:
- Dimensions: 1.6x0.8x0.65mm
- Passband Frequency Low band: 1558 to 1610 MHz
- Passband Frequency High band: 4900 to 5950 MHz
- Insertion Loss (max) at 1558-1610MHz: 0.5 dB
- Insertion Loss (max) at 4900-5950MHz: 0.8 dB
- Attenuation (min) at 4800-4900MHz: 24 dB
- Attenuation (min) at 4900-6000MHz: 26 dB
- VSWR max: 2 at defined frequencies
- Input Impedance: 50Ω
- Output Impedance: 50Ω
- Operating Temperature Range: -40°C to 85°C
- Compliance: RoHS, REACH, Halogen Free
- Soldering: Reflow
- Packaging: Taping Papered (4000 units)
Buy the Taiyo Yuden FI168P245030T – Reliable Wireless Diplexer for Industrial Applications
Enhance your wireless communication systems with this reliable low-loss diplexer designed for Bluetooth and Wi-Fi applications. The compact size of 1.6x0.8x0.65mm allows seamless integration into modern electronic devices, offering robust performance across multiple frequency bands from 1558 MHz to 5950 MHz. Featuring excellent impedance matching, high attenuation, and low insertion loss, this diplexer ensures optimal signal separation and minimal interference. It is RoHS, REACH compliant, halogen-free, and supports mass production with standard packaging, making it ideal for your manufacturing needs.
Get Taiyo Yuden FI168P245030T today—built for precision, low-loss signal routing in wireless devices and industrial communication systems.
Frequently Asked Questions
Where can I buy Taiyo Yuden FI168P245030T?
You can click on the BUY or RFQ button to purchase FI168P245030T from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part FI168P245030T?
You can download the FI168P245030T datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of FI168P245030T?
Taiyo Yuden
