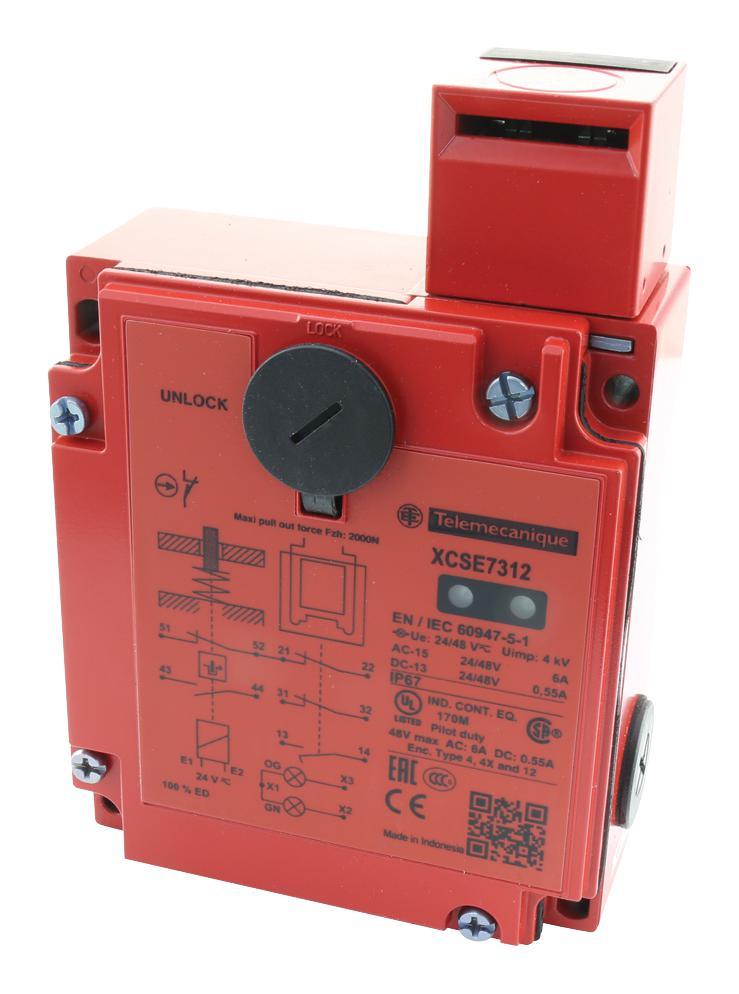

Telemecanique Sensors XCSE7312 Industrial Safety Switch
The safety switch XCSE7312 is a robust, metal-based component designed for industrial safety applications. It features a rectangular design with a key-operated turret head, 2NC+1NO slow-break contacts, and tamper-proof M20 cable entries. The device offers locking by solenoid on de-energisation and unlocking on energisation, with local signaling via green or orange LEDs indicating guard status. Suitable for integration into safety systems, it complies with EN/IEC safety standards, supports high durability of 1,000,000 cycles, and operates within -25°C to 40°C, IP67 protection, making it ideal for hazardous environments requiring reliable safety monitoring and signaling.
Telemecanique Sensors XCSE7312 Industrial Safety Switch Specifications:
- Range of product: Preventa Safety detection
- Component type: Safety switch
- Material: Metal, Zamak body and head
- Design: Rectangular with key-operated turret head
- Contacts type and composition: 2NC +1NO, slow-break, break before make, and 1 NC + 1 NO solenoid contacts
- Cable entry: 2 tapped M20 x 1.5
- Cable outer diameter: 0.28 to 0.51 inches (7 to 13 mm)
- Electrical connection: 1 x 0.5 to 2 x 1.5 mm², with or without cable end
- Number of poles: 3
- Locking: Solenoid locking on de-energisation
- Signaling: Guard open/closed with 2 LEDs (green/orange)
- Signalling circuit voltage: 24/48 V (20...52 V)
- Supply voltage: AC/DC, frequency 50/60 Hz
- Power consumption: 10 VA inrush, sealed, signaling circuit 7 mA
- Durability: 1,000,000 cycles
- Minimum actuation speed: 0.01 m/s (0.03 ft/s)
- Maximum actuation speed: 0.5 m/s (1.64 ft/s)
- Rated operational current: 0.55 A at 125 V DC-13; 0.27 A at 250 V DC-13; 3 A at 120 V AC-15; 1.5 A at 240 V AC-15
- Protection class: IP67
- Standards: EN/IEC 60947-5-1, EN/IEC 60204-1, UL 508, ISO 14119, CSA C22.2 No 14
- Environmental conditions: Operating -25°C to +40°C, vibration resistant 5 gn, shock resistant 10 gn
- Body and head material: Zamak
- Dimensions: Height 5.75 in (146 mm), Depth 1.73 in (44 mm), Width 3.86 in (98 mm)
- Weight: 2.51 lbs (1.14 kg)
- Ingress protection: IP67
- Certifications: UL, CSA
- Environmental compliance: RoHS, REACH, Mercury free
- Warranty: 18 months
Buy the Schneider Electric XCSE7312 – Reliable Safety Switch for Industrial Applications
Get the Schneider Electric XCSE7312 safety switch now to ensure safety and reliability in your industrial environment. Featuring high durability, IP67 protection, and comprehensive signaling, it is ideal for hazardous zones and demanding applications. Easy to install with tamper-proof cable entries, it offers excellent locking and signaling capabilities compliant with international safety standards. Perfect for integration into safety monitoring systems, its robust design supports continuous operation of up to one million cycles, providing peace of mind for safety-critical operations. Buy online now for quick delivery and guaranteed quality.
Order your Schneider Electric XCSE7312 safety switch today and enhance your safety system with proven durability and reliable signaling features.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XCSE7312?
You can click on the BUY or RFQ button to purchase XCSE7312 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XCSE7312?
You can download the XCSE7312 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XCSE7312?
Telemecanique Sensors
