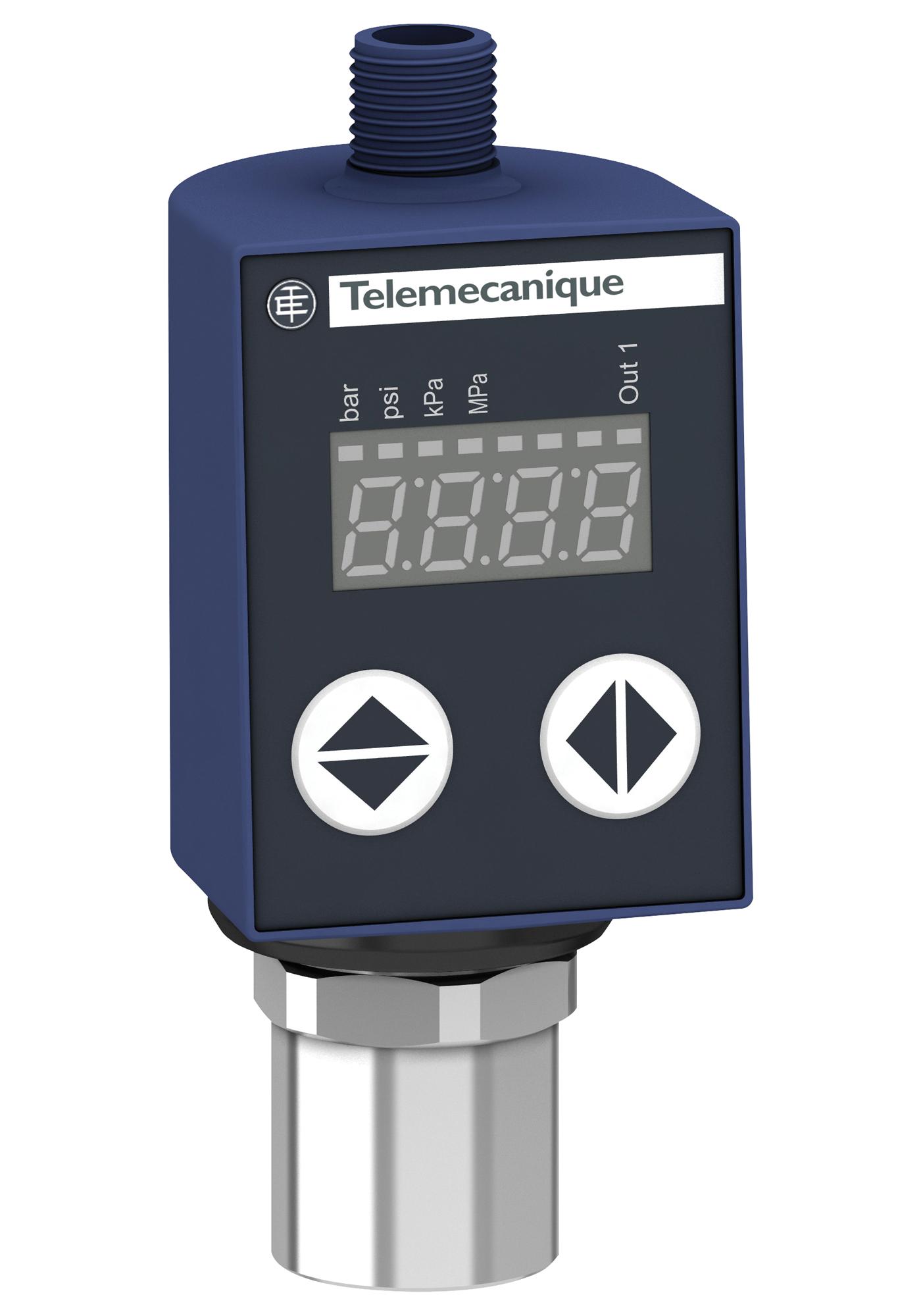

Telemecanique Sensors XMLR400M2N06 Pressure Sensor
The pressure sensor features a compact plastic body with a stainless steel 316L fluid entry and solid-state outputs. It is designed with a rotating body and flip-over display for ease of setup and maintenance. Suitable for hydraulic and pneumatic systems, it converts pressure into an electrical signal for precise measurement and control. The sensor supports a pressure range from 0 to 400 bar (0 to 5800 psi), with a maximum accidental pressure of 1200 bar and destruction pressure of 2400 bar. Operating within 17VDC to 33VDC and consuming up to 50mA, it conforms to cULus standards (UL 61010-1, CSA) and EAC. It operates from -20°C to 80°C, with an IP65/IP67 protection rating. The device offers less than 1% accuracy, a response time of under 5ms, and includes a 1/4-inch-18 NPT female fluid connection, two NPN solid-state outputs, and a 4-pin M12 male connector for electrical connection. Suitable for industrial sensing, instrumentation, and control applications.
Telemecanique Sensors XMLR400M2N06 Pressure Sensor Specifications:
- Range of product: Pressure sensors
- Pressure sensor type: Pressure transmitter
- Pressure switch type: Pressure switch with 2 switching outputs
- Sensor size: 5800 psi, 400 bar, 40 MPa
- Maximum accidental pressure: 1200 bar, 120 MPa, 17400 psi
- Destruction pressure: 240 MPa, 34800 psi, 2400 bar
- Controlled fluid: Fresh water, Air, Hydraulic oil, Refrigeration fluid
- Fluid connection: 1/4" - 18 NPT (female)
- Supply voltage: 24 V DC SELV (17-33 V)
- Current consumption: <=50mA
- Electrical connection: 4 pins M12 male connector
- Output signal: Discrete, Solid state NPN, 2 NO/NC programmable
- Maximum switching current: 250 mA
- Voltage drop: <=2V
- Response time: <= 5 ms
- Response time types: Fast 50 ms, Normal 200 ms, Slow 600 ms
- Accuracy: <= 1% of the measuring range
- Measurement accuracy: <= 0.6% of the measuring range
- Repeat accuracy: <= 0.2% of the measuring range
- Drift of sensitivity: +/- 0.03% per °C
- Drift of zero point: +/- 0.1% per °C
- Display: 4 digits 7-segment
- Material in contact: 316L stainless steel
- Housing material: Polyacrylamide
- Protection: IP65/IP67
- Operating temp: -20°C to 80°C
- Storage temp: -40°C to 80°C
- Vibration resistance: 20 gn
- Shock resistance: 50 gn
- Dimensions: Depth 42mm, Height 88mm, Width 41mm
- Weight: 0.186 kg
- Standards: IEC 61326-2-3, UL 61010-1, EN/IEC 61000-4-2/3/4/5/6
- Certifications: CE, CULus, EAC
- Waterproof rating: IP65/IP67
- Response time: Output response <= 5 ms
- Switching modes: Hysteresis, Window, Time Delay
- Environmental: Suitable for different fluids and operating conditions
Buy the Schneider Electric XMLR400M2N06 – Reliable Pressure Sensors for Industrial Applications
Purchase the Schneider Electric XMLR400M2N06 pressure sensor online today and enhance your industrial control systems with accurate, durable, and easy-to-install pressure measurement solutions. Designed for hydraulic and pneumatic applications, it offers quick response times, robust protection ratings, and high accuracy within demanding environments. With a stainless steel fluid entry and multiple output options, this sensor is ideal for instrumentation, automation, and process control. Order now to benefit from reliable performance and excellent certification support.
Buy Schneider Electric XMLR400M2N06 now and experience unmatched reliability and precision in industrial pressure measurement.
