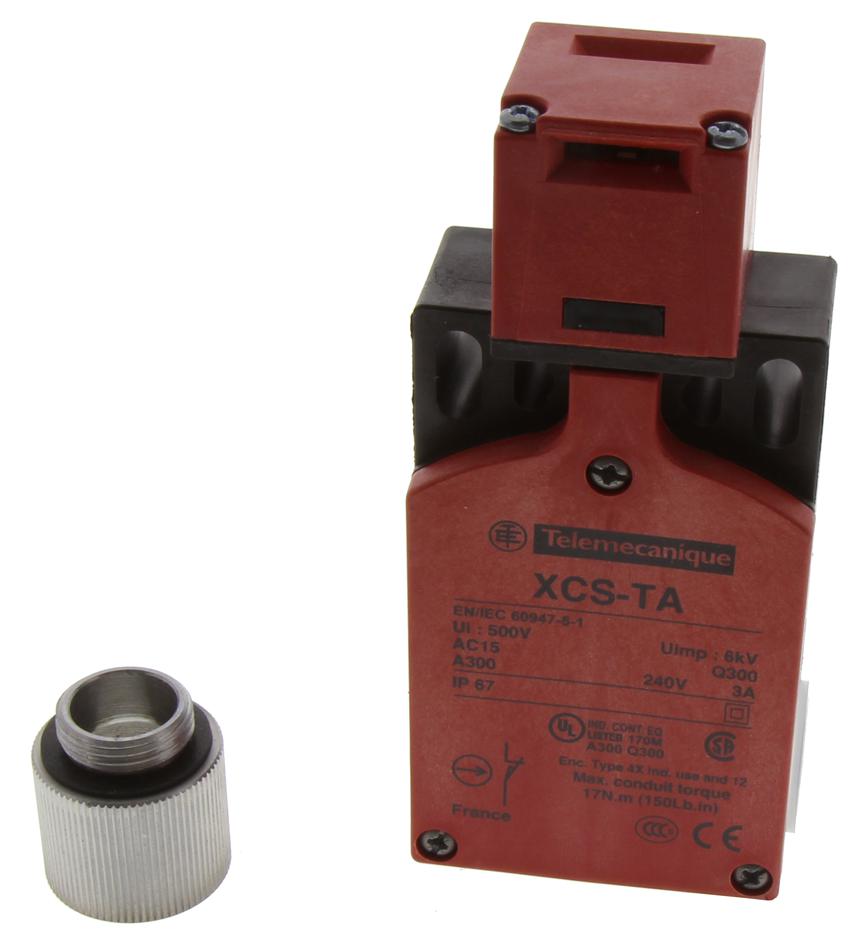

Telemecanique Sensors XCSTA793 Safety Interlock Switch
The XCSTA793 is a double-pole single-throw safety interlock switch with a polyamide body and key-operated turret head, designed for industrial and automation use. It features two normally closed contacts and one normally open contact with slow-break, break-before-make operation, ensuring reliable safety control. The switch does not lock the actuator and offers a high durability of over 1,000,000 cycles. With an IP67 rating, it withstands harsh environments. Certified under UL, CSA, and international standards, it is ideal for safety-critical applications in manufacturing, robotics, and automotive industries, combining mechanical robustness with advanced safety features.
Telemecanique Sensors XCSTA793 Safety Interlock Switch Specifications:
- Body Material: PA (polyamide)
- Head Material: PA (polyamide)
- Contacts: 2NC + 1NO with slow-break, break-before-make operation
- Electrical Connection: Terminal 0.5 to 2 x 1.5 mm² with or without cable end
- Number of Poles: 3
- Locking Options: Without locking of actuator
- Insulation: Double insulated
- Positive Opening: Yes, with NC contact
- Mechanical Durability: 1,000,000 cycles
- Rated Operational Current: 6A at 120V AC-15, 3A at 240V AC-15, 0.55A at 125V DC-13, 0.27A at 250V DC-13
- Rated Insulation Voltage: 300V UL/CSA, 500V IEC
- Rated Impulse Withstand Voltage: 6kV
- Protection Degree: IP67
- Vibration Resistance: 5 gn, 10-500 Hz
- Shock Resistance: 10 gn, 11 ms
- Operating Temperature: -13°F to 158°F (-25°C to 70°C)
- Certification: UL, CSA, EN/IEC standards
- Dimensions: Depth 1.18 in (30 mm), Height 4.53 in (115 mm), Width 2.05 in (52 mm)
- Weight: 0.35 lb (0.16 kg)
Buy the Schneider Electric XCSTA793 – Reliable Safety Interlock Switch for Industrial Applications
Order the Schneider Electric XCSTA793 safety interlock switch online today. Designed with durable polyamide construction and featuring IP67 protection, this switch ensures reliable safety control for industrial, robotics, and automotive applications. It offers over one million mechanical cycles, multiple certifications, and fast, easy installation with terminal connections. Protect your machinery and personnel with a premium-quality safety switch that meets international standards. Purchase now for efficient and dependable safety management in your automation systems.
Get Schneider Electric XCSTA793 today—built for safety and long-lasting durability in demanding industrial environments.
