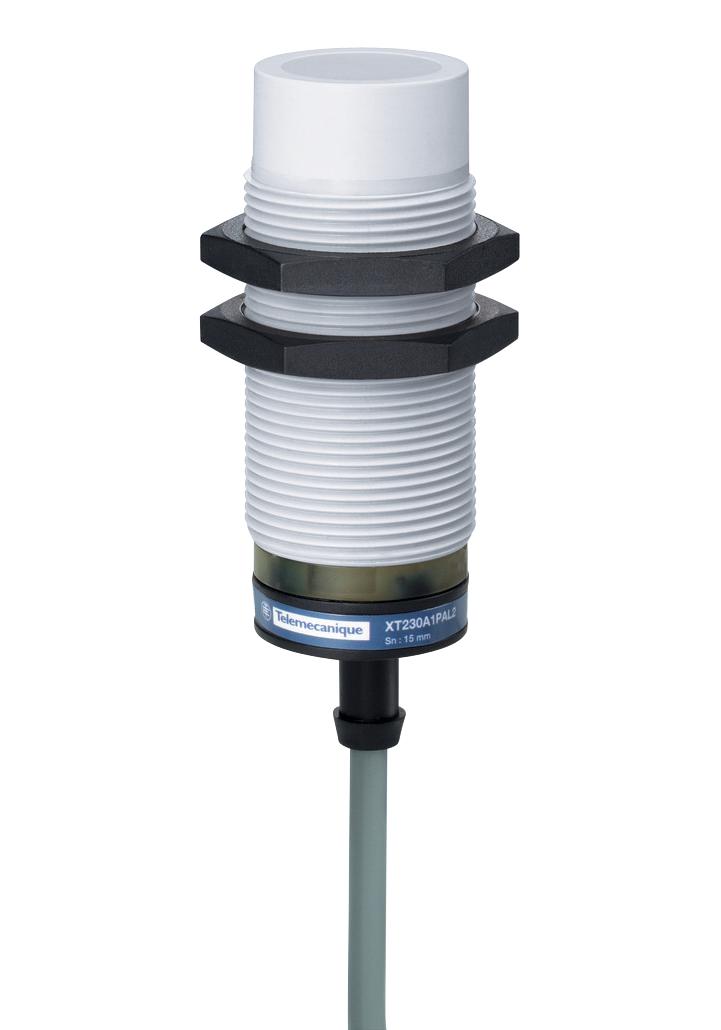

Telemecanique Sensors XT230A1FAL2 Capacitive Proximity Sensor
The capacitive proximity sensor XT230A1FAL2 features a cylindrical M30 design with a plastic body, ideal for detecting insulated or conductive materials. It operates within a sensing distance of up to 11 mm with a repeat accuracy of less than 5% Sr. The sensor supports AC output, has a rated supply voltage of 24 to 240 V AC, and provides a discrete NO signal. IP67 rated for environmental protection, it is suitable for industrial automation applications requiring reliable, quick responsiveness and easy installation with adjustable sensitivity.
Telemecanique Sensors XT230A1FAL2 Capacitive Proximity Sensor Specifications:
- Sensor Type: Capacitive proximity sensor
- Design: Cylindrical M30
- Size: 74.5 mm length, 48.5 mm threaded length
- Material: Plastic
- Enclosure: Plastic, IP67
- Output Signal: Discrete, 1 NO output
- Wiring: 2-wire, AC circuit, Cable length 6.56 ft (2 m)
- Rated Supply Voltage: 24-240 V AC, 50-60 Hz
- Maximum Delay: 30 ms
- Detection Distance: 0.00 to 0.43 in (0 to 11 mm)
- Adjustment Zone: 0.00 to 0.67 in (0 to 17 mm)
- Sensitivity Adjustment: Potentiometer
- Response Time: Up to 200 ms for switch-on, 30 ms for recovery
- Switching Frequency: Up to 25 Hz
- Current Consumption: Less than 4 mA
- Maximum Switching Current: 300 mA
- Voltage Drop: Less than 10 V
- Environmental Ratings: IP67, IEC 60947-5-2, CE, CULus
- Operating Temperature: -10°C to 60°C
- Vibration Resistance: 10 gn, 1 mm, 10-55 Hz
- Shock Resistance: 30 gn, 11 ms
- Electrostatic Discharge Resistance: 4 KV contact, 8 KV air
- Electromagnetic Field Resistance: 2.74 V/m
- Fast Transients Resistance: 2 kV
- Thread Size: M30 x 1.5
- Mounting Distances: Side by side 60 mm, face to face 45 mm
- Weight: 0.27 kg
- Certifications: CE, CULus
Buy the Schneider Electric XT230A1FAL2 – Reliable Capacitive Sensor for Industrial Applications
Enhance your industrial automation with the Schneider Electric capacitive proximity sensor XT230A1FAL2. Designed for detecting insulated or conductive materials, this cylindrical M30 sensor features a plastic body, IP67 protection, and a wide sensing zone up to 11 mm. It operates on 24 to 240 V AC, ensuring compatibility and safety in diverse environments. Easy to set up with adjustable sensitivity, robust design, and quick response times, this sensor delivers reliable performance suitable for demanding industrial applications. Purchase online now for dependable, high-quality detection in your projects.
Order your Schneider Electric XT230A1FAL2 cylindrical capacitive sensor today and enhance your automation systems with dependable detection and easy sensitivity adjustment.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XT230A1FAL2?
You can click on the BUY or RFQ button to purchase XT230A1FAL2 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XT230A1FAL2?
You can download the XT230A1FAL2 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XT230A1FAL2?
Telemecanique Sensors
