Telemecanique Sensors XCSTE5312 Safety Switch

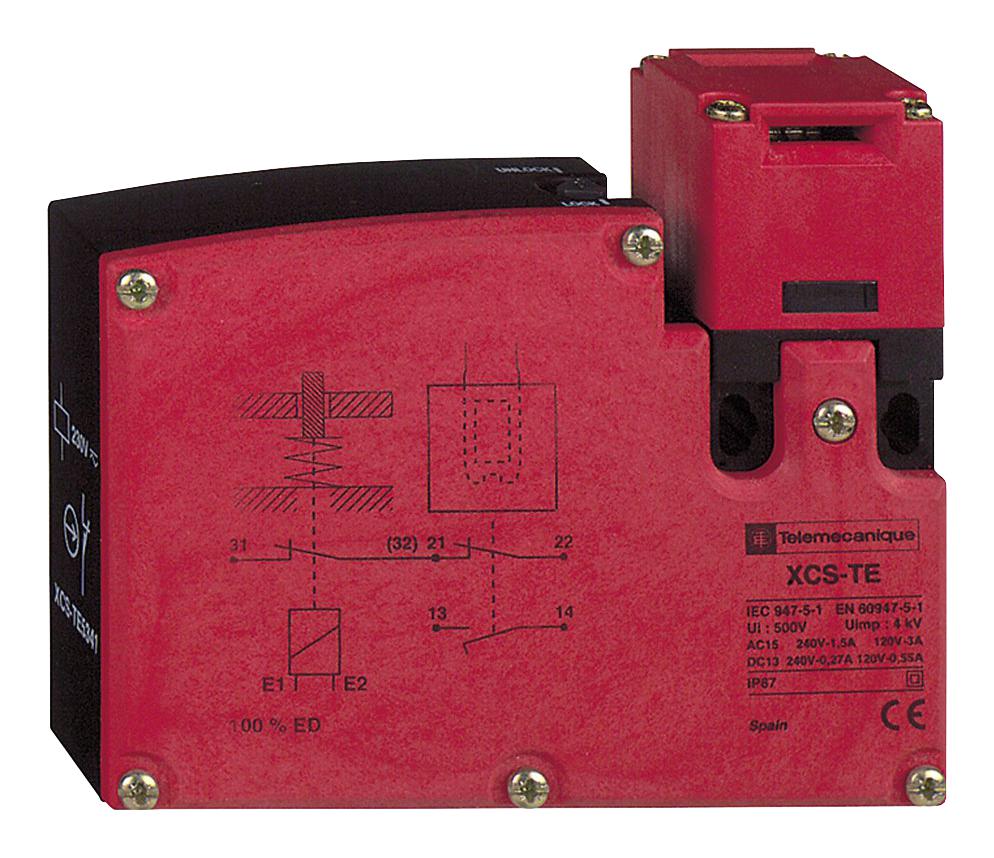

The safety switch XCSTE5312 features a plastic rectangular body with a key-operated turret head, designed for safety detection in industrial applications. It includes 1NC + 4NO contacts with slow-break operation, and a tapped M16 cable entry for easy installation. The device is double insulated, with a locking mechanism via solenoid, and rated for 24V AC/DC supply. It offers high durability with 1 million mechanical cycles, safety levels up to SIL 3 and Category 4 with proper wiring. Certified for UL, CSA, IEC standards, it performs reliably in harsh environments, with dimensions of 3.70 in height, 4.33 in maximum width, and weighs 0.79 lbs.
Telemecanique Sensors XCSTE5312 Safety Switch Specifications:
- Body Material: PA (polyamide)
- Head Material: PA (polyamide)
- Design: Rectangular
- Contacts: 1NC + 4NO, slow-break operation
- Cable Entry: M16 tapped, 1 entry
- Cable Outer Diameter: 0.28 to 0.39 in (7 to 10 mm)
- Supply Voltage: 24V AC/DC
- Electrical Connection: 1 x 0.5...2 x 1.5 mm² (with or without cable end)
- Number of Poles: 2
- Locking: Solenoid locking, interlocking with lock/unlock on de-energisation/energisation
- Insulation: Double insulated
- Rated Operational Current: 0.55 A at 125 V DC-13, 0.27 A at 250 V DC-13
- Protection Class: Class II
- IP Degree of Protection: IP67
- Environmental Resistance: Vibration 5 gn, Shock 10 gn
- Temperature Range: -25°C to +60°C (operation), -40°C to +70°C (storage)
- Safety Standards: UL 508, CSA, EN IEC 60947-5-1, ISO 13849-1, IEC 61508
- Durability: 1,000,000 cycles
- Weight: 0.79 lbs (0.36 kg)
- Dimensions: Height 3.70 in, Depth 1.30 in, Max Width 4.33 in
- Certifications: UL, CSA, Protective Treatment: TC
Buy the Buy Schneider Electric Safety Switch XCSTE5312 Online
Purchase the Schneider Electric safety switch XCSTE5312 online today. Designed for industrial safety detection, this double-insulated safety switch features a key turret head, multiple contacts, and solenoid locking for enhanced security. It is certified under UL, CSA, and IEC standards, with a robust design rated for 24V AC/DC supply. Durable for 1 million cycles, it operates reliably in harsh environments, ensuring safety. Easily install with M16 cable entry, IP67 rating, and compliance with safety standards, making it an essential component for industrial safety systems.
Get Schneider Electric XCSTE5312 today—built for safety detection with locking solenoid and high durability for industrial environments.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XCSTE5312?
You can click on the BUY or RFQ button to purchase XCSTE5312 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XCSTE5312?
You can download the XCSTE5312 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XCSTE5312?
Telemecanique Sensors
