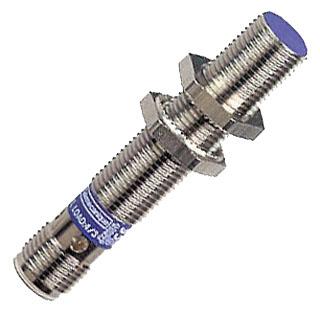

Telemecanique Sensors XS612B1MAU20 Inductive proximity sensor
The XS612B1MAU20 is a robust flush mountable inductive proximity sensor ideal for industrial sensing applications. It features a metal fixed body with a frontal detection face, and a PPS front material for durability. With a sensing range of 0.16 inches (4 mm) and an operating zone up to 0.13 inches (3.2 mm), it offers reliable detection. The sensor operates on 24-240 V AC/DC, with a discrete output function and a yellow LED indicator for output status. Its IP67/IP69K ratings ensure high environmental resistance, making it suitable for harsh conditions and automation projects.
Telemecanique Sensors XS612B1MAU20 Inductive proximity sensor Specifications:
- Sensor type: Inductive proximity sensor
- Body material: Nickel Plated Brass
- Front material: PPS
- Detection face: Frontal
- Wiring technique: 2-wire
- Output signal: Discrete, NO
- Electrical connection: Male connector 1/2"20 UNF, 3 pins
- Rated supply voltage: 24...240 V AC/DC
- Switching capacity: 5...200 mA AC/DC
- Protection rating: IP67, IP69K
- Detection range: >0.1...0.16 in (>2.5...4 mm)
- Operating zone: 0.00...0.13 in (0...3.2 mm)
- Maximum residual current: 0.8 mA (open state)
- Maximum voltage drop: <5.5 V (closed)
- Response delay: 0.5 ms
- First up delay: 20 ms
- Enclosure length: 2.40 in (61 mm)
- Thread type: M12x1
- Environmental ratings: IP67/IP69K
- Operating temperature: -25°C to 70°C (-13°F to 158°F)
- Vibration resistance: 25 gn, 10-55 Hz
- Shock resistance: 50 gn, 11 ms
- Certifications: UL, CSA
Buy the Schneider Electric Series XS Series Proximity Sensor: XS612B1MAU20
Purchase the Schneider Electric XS612B1MAU20 inductive proximity sensor online today. Designed for reliable detection with a sensing range of 4 mm, IP67/IP69K ratings for harsh environments, and a durable metal enclosure. This versatile sensor features a 2-wire wiring technique, discrete NO output, and a frontal detection face. Perfect for industrial automation, manufacturing, and machinery where durability and precision are critical. Order now to ensure seamless integration into your control systems with easy online purchasing and fast delivery.
Get Schneider Electric XS612B1MAU20 today—built for precision and long-lasting durability in industrial sensing applications.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS612B1MAU20?
You can click on the BUY or RFQ button to purchase XS612B1MAU20 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS612B1MAU20?
You can download the XS612B1MAU20 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS612B1MAU20?
Telemecanique Sensors
