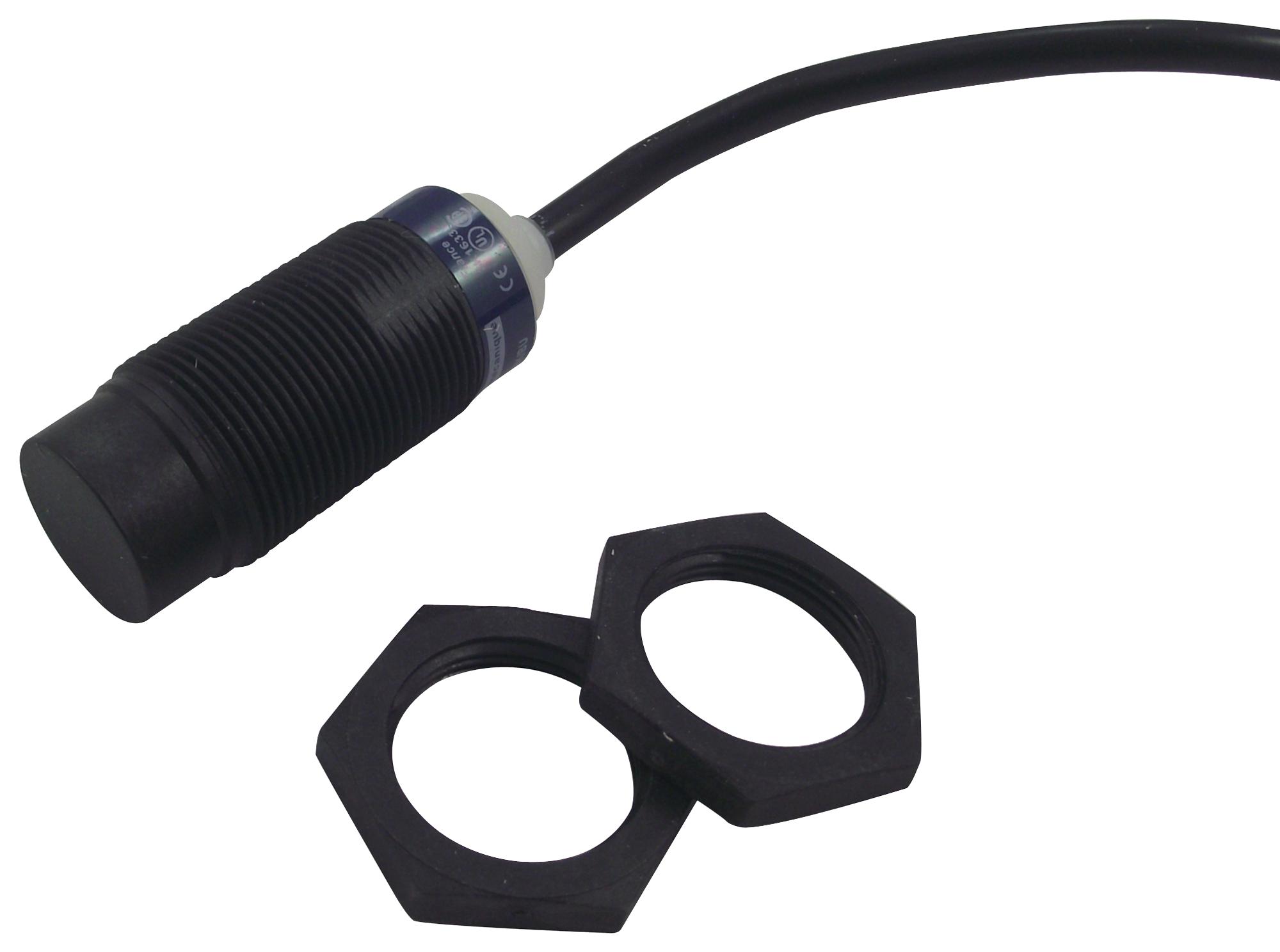

Telemecanique Sensors XS4P18AB120 Inductive proximity sensor
The XS4P18AB120 is a versatile plastic inductive proximity sensor designed with a cylindrical M18 body, featuring PBT enclosure and PPS frontal face. It provides reliable non-flush detection with an analogue output (4-20 mA) and 12-24 VDC supply. Its IP67 rating ensures durability in challenging environments, making it ideal for industrial sensing, automation, and instrumentation applications. The sensor measures 41mm in length, 18mm in diameter, with a detection range of 0.8 to 8mm, and is suitable for precise object detection with repeat accuracy within 3%. Suitable for various manufacturing and automation settings.
Telemecanique Sensors XS4P18AB120 Inductive proximity sensor Specifications:
- Sensor type: Inductive proximity sensor with analogue output (4-20 mA)
- Sensor design: Cylindrical M18, 41mm length, 18mm diameter
- Body material: PBT with PPS front face
- Detection face: Frontal, non-flush mountable
- Nominal sensing distance: 8mm (0.31 in)
- Operating zone: 0.8...8mm (0.03...0.31 in)
- Supply voltage: 12...24 VDC with limits 10...38 V DC
- Electrical connection: Cable 6.56 ft (2m)
- IP rating: IP67 IEC 60529
- Linearity error: +2mA, Repeat accuracy: <= 3% of Sr
- Switching frequency: <= 500 Hz
- Current consumption: 4mA no-load
- Maximum output current drift: 10%
- Operating temperature: -25°C to +70°C (-13°F to 158°F)
- Certifications: CSA, UL
- Dimensions: Length 41mm, threaded length 26mm, width 18mm, height 18mm
- Weight: 0.18 lbs (0.08 kg)
Buy the Buy Schneider Electric Inductive Proximity Sensor Part Number XS4P18AB120 Online
Enhance your industrial automation setup with the Schneider Electric XS4P18AB120 inductive proximity sensor, featuring a durable PBT enclosure and PPS face. This cylindrical M18 sensor delivers precise detection within 0.8 to 8mm, with an analogue 4-20 mA output and IP67 protection for rugged environments. Powered by 12-24 VDC, it offers high repeat accuracy and stable switching frequency. Easy to install with cable connection, it's ideal for manufacturing, automation, and instrumentation projects, ensuring dependable performance and long-term reliability.
Order your Schneider Electric XS4P18AB120 series inductive proximity sensor today and ensure reliable object detection with its robust IP67 rating and analogue output.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS4P18AB120?
You can click on the BUY or RFQ button to purchase XS4P18AB120 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS4P18AB120?
You can download the XS4P18AB120 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS4P18AB120?
Telemecanique Sensors
