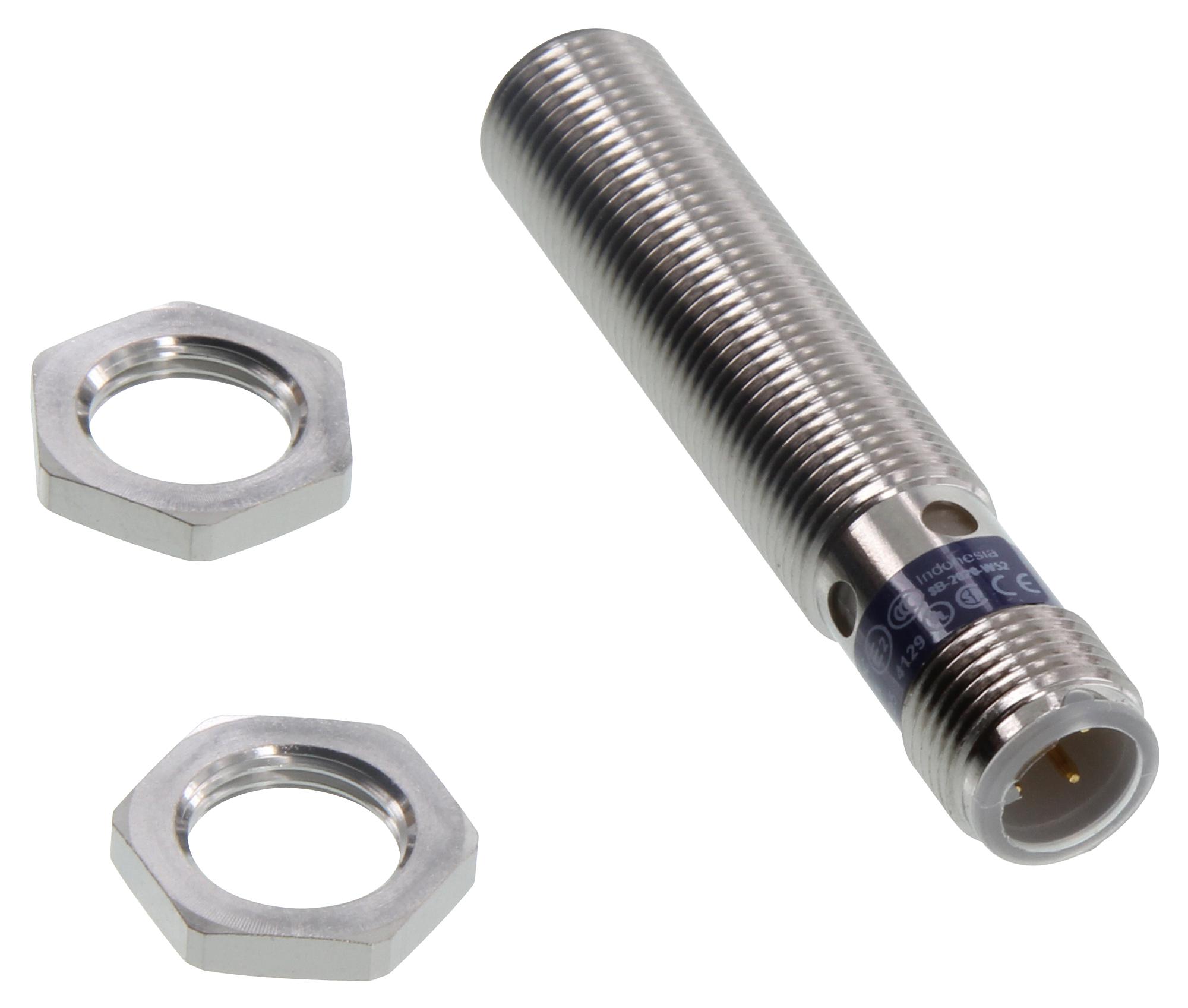

Telemecanique Sensors XS612B1PAM12 Inductive proximity sensor
The XS612B1PAM12 from Schneider is an OsiSense XS inductive proximity sensor designed for general purpose applications. It features a cylindrical, flush-mountable design with a 62mm length, suitable for non-contact detection of metal objects up to 4mm away. The sensor has a 4mm sensing distance, a PNP discrete output, and operates within 12VDC to 48VDC with reverse polarity protection. Its robust construction includes an IP69K and IP67 rating, making it ideal for industrial, robotics, automation, and electronics sectors. UL, CSA, and CE compliant, it ensures reliable performance in harsh environments.
Telemecanique Sensors XS612B1PAM12 Inductive proximity sensor Specifications:
- Sensor type: Inductive proximity sensor
- Design: Cylindrical M12, flush-mountable
- Body material: Nickel Plated Brass
- Sensing range: > 0.1 to 0.16 in (2.5 to 4 mm)
- Detection face: Frontal
- Output signal: Discrete, PNP, 1NO
- Wiring: 4-pin M12 male connector
- Operating voltage: 12 to 48 V DC with reverse polarity protection
- Switching capacity: ≤ 200 mA DC, overload, and short-circuit protected
- Protection rating: IP67 IEC 60529, IP69K DIN 40050
- Temperature range: -25°C to +70°C ambient
- Vibration resistance: 25 gn ± 2mm, 10-55 Hz
- Shock resistance: 50 gn, 11 ms
- Thread type: M12x1
- Enclosure material: Nickel Plated Brass
- Height: 62 mm (2.44 inches), Threaded length: 42 mm (1.65 inches)
- Weight: 0.02 kg (0.044 lbs)
- Certifications: UL, CSA, CE
- Maximum switching frequency: ≤ 2500 Hz
Buy the Buy Schneider XS612B1PAM12 Inductive Sensor Part Number XS612B1PAM12 Online
Purchase the Schneider XS612B1PAM12 inductive proximity sensor online to enhance your automation setup. Designed for high durability with IP69K/IP67 ratings, it ensures superior performance in harsh environments. With a 4mm sensing distance, PNP output, and robust nickel-plated brass construction, this sensor is suitable for various industrial, robotics, and electronic applications. Easy to install with M12 connector, it provides reliable detection and protection features. Order now to optimize your metal sensing tasks with proven quality and efficiency.
Buy Schneider XS612B1PAM12 now and experience unmatched reliability and performance in metal detection for industrial automation and robotics.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS612B1PAM12?
You can click on the BUY or RFQ button to purchase XS612B1PAM12 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS612B1PAM12?
You can download the XS612B1PAM12 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS612B1PAM12?
Telemecanique Sensors
