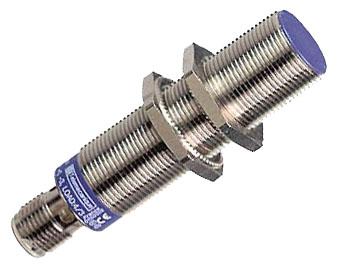

Telemecanique Sensors XS618B1PAM12 Inductive proximity sensor
The XS618B1PAM12 from Schneider Electric is an inductive proximity sensor ideal for general-purpose industrial applications. It features a cylindrical M18 metal body, measuring 74 mm in length, designed for flush mounting detection of metal objects up to 8 mm contactless distance. Operating within 12VDC to 48VDC with reverse polarity protection, it provides discrete PNP NO output via a 4-pin M12 male connector, with a switching capacity of 200mA DC. IP69K rated for harsh environments, this sensor is suitable for automation, robotics, and instrumentation in demanding settings.
Telemecanique Sensors XS618B1PAM12 Inductive proximity sensor Specifications:
- Sensor type: Inductive proximity sensor
- Body material: Nickel Plated Brass, Metal
- Size: 74 mm long, M18 cylindrical design
- Detection distance: 8 mm contactless sensing
- Output: Discrete PNP NO via 4-pin M12 connector
- Supply Voltage: 12 to 48 V DC with reverse polarity protection
- Switching capacity: ≤ 200 mA DC
- Ingress Protection: IP69K (DIN 40050), IP68 (IEC 60529)
- Environmental resistance: Vibration 25 gn +/- 2mm, Shock 50 gn 11 ms
- Maximum response time: 0.3 ms
- Operating temperature: -25°C to 70°C
- Thread type: M18 x1
- Detection face: Frontal
- Cable/Wiring: Male M12, 4 pins
- Certifications: UL, CSA
- Mechanical dimensions: Length 74mm, Threaded length 52mm
Buy the Schneider Electric XS618B1PAM12 – Reliable Inductive Proximity Sensor for Industrial Applications
Secure your automation projects with the Schneider Electric XS618B1PAM12 inductive proximity sensor, offering contactless metal detection up to 8mm. Designed for durability and harsh environments, it features a robust M18 brass body, IP69K ingress protection, and versatile 12-48VDC operation with reverse polarity protection. Its quick response time and certified safety make it ideal for automation, robotics, and instrumentation. Purchase online today and ensure your industrial systems operate with precision and reliability, backed by a 18-month warranty and worldwide certifications.
Buy Schneider Electric XS618B1PAM12 now and experience unmatched reliability and performance for your industrial automation needs.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS618B1PAM12?
You can click on the BUY or RFQ button to purchase XS618B1PAM12 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS618B1PAM12?
You can download the XS618B1PAM12 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS618B1PAM12?
Telemecanique Sensors
