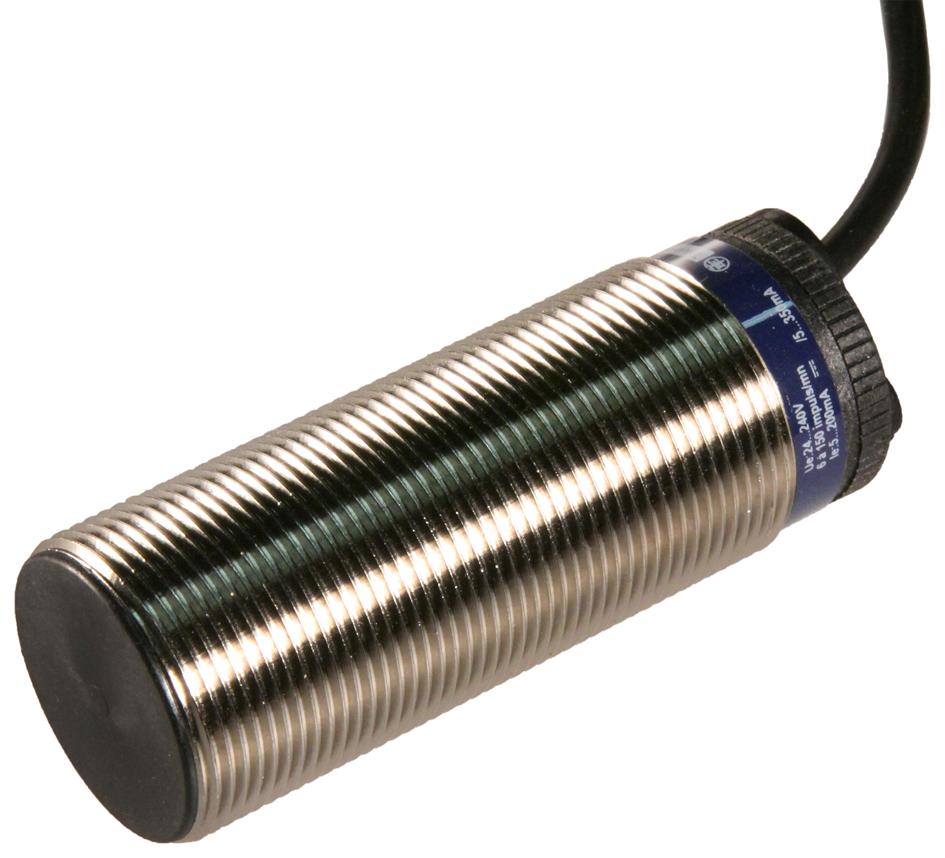

Telemecanique Sensors XSAV11801 Inductive Proximity Sensor
The XSAV11801 is a nickel-plated brass inductive proximity sensor designed for non-contact detection of metal objects within a 10mm range. It features a M30 cylindrical, flush-mountable design with an IP67 protection rating, suitable for various industrial, automotive, and sensing applications. The sensor has a threshold range of 6 to 150 pulses per minute, a 1NC discrete output function, a 9-second start-up delay, and operates using a 2-wire technique. It is rated for operating voltages from 20 V to 264 V AC/DC and is CE marked for quality assurance.
Telemecanique Sensors XSAV11801 Inductive Proximity Sensor Specifications:
- Sensor type: Inductive proximity sensor
- Material: Nickel Plated Brass
- Design: Cylindrical M30, 81mm length
- Sensing distance: 10mm
- Output signal: Discrete 1NC
- Wiring technique: 2-wire
- Rated supply voltage: 20 V to 264 V AC/DC
- Detection face: Frontal
- Enclosure protection: IP67
- Thread type: M30 x 1.5
- Operating zone: 0 to 8mm
- Switching frequency: up to 150 cyc/min
- Adjustment: Differential travel 3-15% of Sr, repeat accuracy 3%
- Output circuit: AC/DC
- Maximum residual current: 1.5 mA
- Temperature range for operation: -25°C to +70°C
- Ambient temperature for storage: -40°C to +85°C
- Certification: UL, CSA, CE, RoHS
- Environmental protection: IP67
- Cable length: 2m
- Dimensions: Diameter 30mm, length 81mm
- Start-up delay: 9 seconds
Buy the Buy Industrial Proximity Sensor Part Number XSAV11801 Online
Purchase the XSAV11801 inductive proximity sensor online today to ensure your industrial machinery operates smoothly. Its 10mm sensing range, IP67 enclosure, and M30 cylindrical design make it ideal for robust metal detection in demanding environments. With UL, CSA, and CE certifications, it guarantees safety and durability. Easy to install with 2-wire wiring, this sensor provides reliable discrete outputs and excellent performance in automation, automotive, and manufacturing applications. Order now to enhance your operational efficiency with quality sensing solutions.
Buy Schneider XSAV11801 now and experience unmatched reliability and precise metal detection with IP67 protection suitable for harsh environments.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XSAV11801?
You can click on the BUY or RFQ button to purchase XSAV11801 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XSAV11801?
You can download the XSAV11801 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XSAV11801?
Telemecanique Sensors
