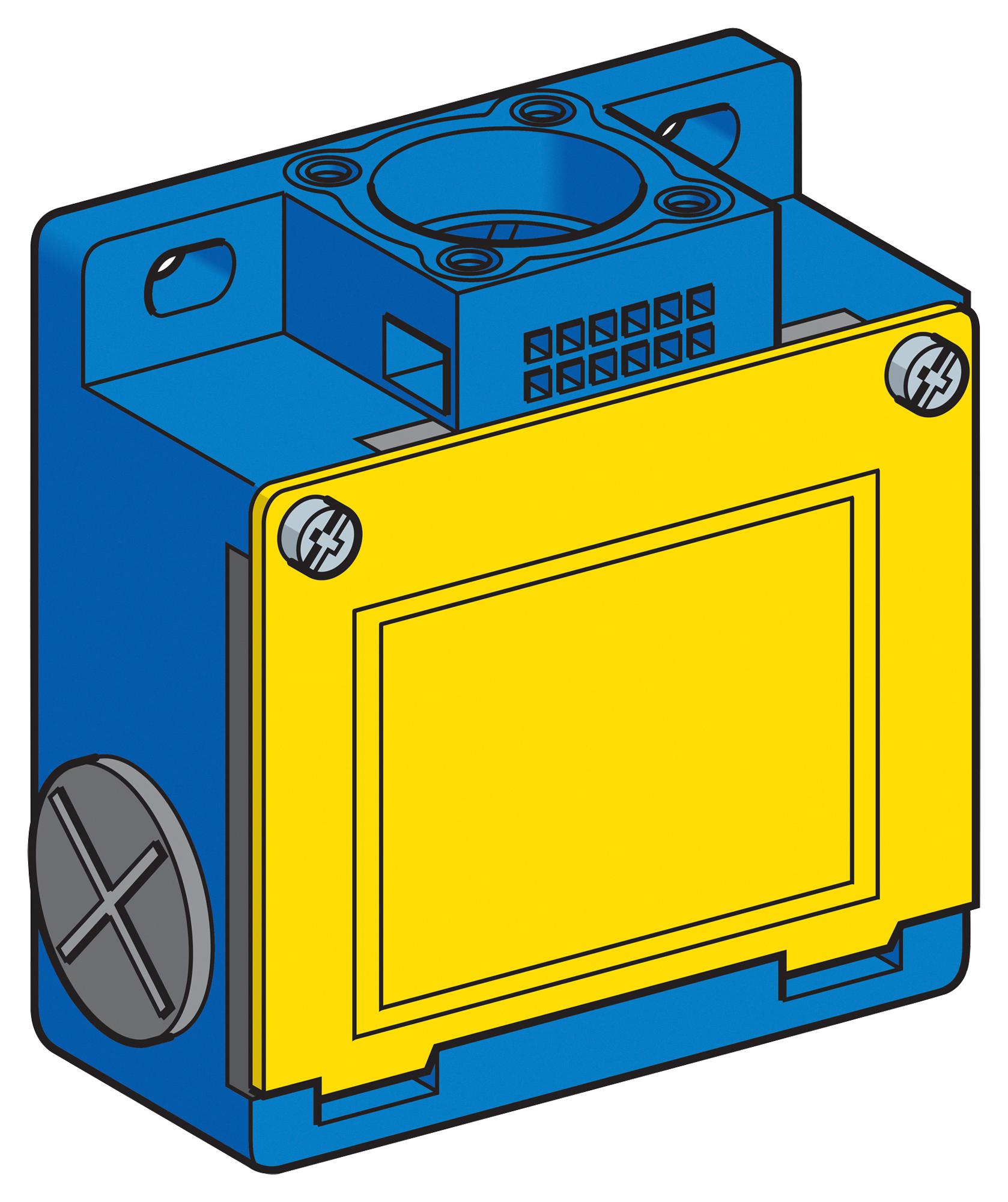

Telemecanique Sensors ZCKM9 Limit Switch Body
The limit switch body ZCKM is designed for reliable operation in industrial automation, featuring a metal body, snap action contacts, and IP66 protection. It has a 2NC contact configuration, positive opening contacts, and screw-clamp terminals compatible with 0.34 to 1.5 mm² cables. Suitable for standard environments, it supports an operating temperature range of -25°C to 70°C and a minimum actuation speed of 0.01 m/min. With a rated operational current of 3A at 240V, it ensures durability up to 5 million cycles, making it ideal for safety and control applications.
Telemecanique Sensors ZCKM9 Limit Switch Body Specifications:
- Body material: Metal
- Ingress protection: IP66
- IK protection: IK05
- Number of poles: 2
- Contacts: 2NC snap action, silver plated
- Electrical connection: Screw-clamp terminals, capacity 0.34 to 1.5 mm²
- Rated operational current: 3A at 240V AC-15
- Minimum actuation speed: 0.01 m/min
- Rated insulation voltage: 500V
- Impulse withstand voltage: 4 KV
- Maximum resistance across terminals: 0.25 mOhm
- Environmental temperature for operation: -25°C to 70°C
- Protection degree: IP66
- Dimensions: Height 64 mm, Width 64 mm, Depth 30 mm
- Net weight: 0.21 kg
Buy the Schneider Series Standard Limit Switch: ZCKM9
Purchase the Schneider Series ZCKM9 limit switch online today for dependable operation in control systems. Featuring a rugged metal body, IP66 protection, snap action contacts, and long-lasting durability with up to 5 million cycles. Its compact design, screw-clamp terminals, and rated current of 3A at 240V make it ideal for safety automation applications. Easily integrate this durable switch in harsh environments, ensuring precise control and enhanced safety for your operational needs.
Order your Schneider Series ZCKM9 limit switch today and ensure reliable performance in your industrial automation projects.
Frequently Asked Questions
Where can I buy Telemecanique Sensors ZCKM9?
You can click on the BUY or RFQ button to purchase ZCKM9 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part ZCKM9?
You can download the ZCKM9 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of ZCKM9?
Telemecanique Sensors
