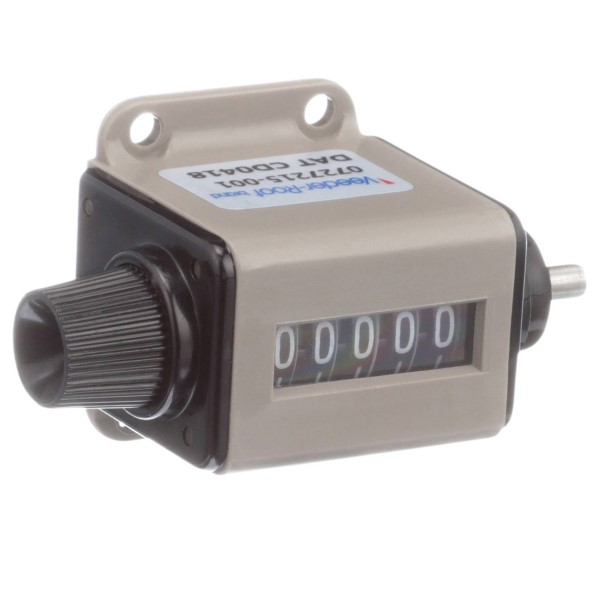

Veeder Root 0727235001 Small Mechanical Counter
The Veeder Root 7272/7287 series mechanical counters are a long-standing standard for small, flange-mount totalizers. These counters offer a combination of compact size and a large, high-contrast display, making them suitable for a wide range of industrial environments. Constructed with corrosion-resistant materials and a stainless steel drive shaft, these counters provide reliable and accurate performance. Available with ratchet or revolution drive mechanisms, they cater to diverse application needs. Customization options are available for mounting, levers, couplings, and display colors, allowing for tailored solutions. Ideal for farm punch and machinery press applications.
Veeder Root 0727235001 Small Mechanical Counter Specifications:
- Drive Ratios: Series 7272: Ratchet Drive, adds one count for shaft actuation through minimum arc of 40°; travel limited to 45°; internal lever return spring; Series 7287: Revolution Drive, adds one count for shaft revolution in either direction
- Speed: Ratchet: Harmonic – 1000 cpm; impact – at least 30 ms to advance lever 45°; Revolution: 1000 rpm
- Torque: Maximum Static: 3 oz-in. (2.12 N.m), ratchet 8 oz-in (5.65 N.m)
- Size of Figures: 0.187 in. (4.7 mm) high by 0.099 in. (2.5 mm) wide
- Color of Figures: White on black standard
- Reset: Manual knob or lock-and-key reset
- Lubrication: Not required
- Mounting: Base
- Construction: Case: Glass filled nylon; Drive Shaft: Stainless steel; Wheels, reset knob, pawls, yoke, end caps, and working parts: Acetal resin
- Net Weight: 2.4 oz. (68.0 g)
Buy the 0727235-001 Veeder Root Small Mechanical Counter | myMectronic
Securely purchase the Veeder Root 0727235-001 mechanical counter online for reliable industrial performance.
