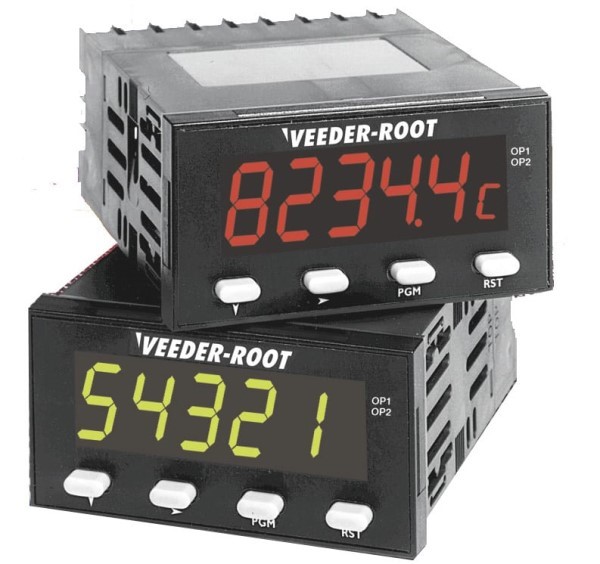

Veeder Root C62881000 Preset and Batch Counter
The Veeder Root C628 Preset & Batch Counter is a versatile 1/8 DIN instrument designed for monitoring and controlling various industrial processes. Featuring a large, high-brightness LED display with programmable color change, the C628 provides operators with instant visual alerts to changes in count, position, length, or other critical values. Available in single, dual preset, and batch models, it offers flexible configuration options for diverse applications. The batch model displays count, batch value, and background total, enhancing process visibility and control. With features like programmable help functions, dual preset tracking, and optional RS-485 communication, the C628 delivers robust performance and seamless integration into industrial automation systems.
Veeder Root C62881000 Preset and Batch Counter Specifications:
- Display_Height: 0.71" (18mm)
- Display_Secondary_Height: 0.3" (7mm)
- Display_Type: 7 segment LED
- Frequency_Max: 10 kHz
- Logic_Low_Voltage: ≤ 2.0 VDC
- Logic_High_Voltage: ≥ 3.0 VDC
- Logic_High_Voltage_Max: 30V max
- Input_Impedance: 10 K Ω (Sourcing), 4.7 K Ω (+Voltage - Sinking)
- Multiplier_Range: 0.0001 to 9.9999
- Control_Input_Impedance: 4.7 K Ω to +Voltage
- Response_Time: 25 ms
- Output_Type_1: NPN open collector
- Output_Voltage_Max: 30 VDC
- Output_Current_Max: 100 mA
- Output_Type_2: SPDT relay
- Relay_Rating: 2 amp resistive @ 110 VAC
- Latency: 75 seconds + 8 ms (relay)
- Communication_Type: Serial asynchronous, UART to UART; Open ASCII
- Baud_Rate: 9600, 4800, 2400, or 1200
- Filter_Speed: Settable for 20, 200 or 10,000 Hz
- Supply_Voltage: 90-264 VAC, 50/60 Hz or 20-50 VAC/VDC
- Accessory_Power_Supply: 9-15 (unregulated VDC), 125 mA max
- Dimensions: 48mm x 96mm, 110mm deep
- Mounting: Panel mount (bracket supplied)
- Cutout_Dimensions: 45mm x 92mm
- Connections: Screw type terminals
- Front_Panel_Rating: NEMA 4X/IEC IP65
- Case_Material: GE Lexan 940
- Weight: 0.56 lbs
- Operating_Temperature: 0° to 55° Celsius
- Storage_Temperature: -20° to 80° Celsius
- Relative_Humidity: 20% to 95% non-condensing
- Approvals: CE; UL, CUL recognized
