Veeder Root A103004 Datasheet & Stock

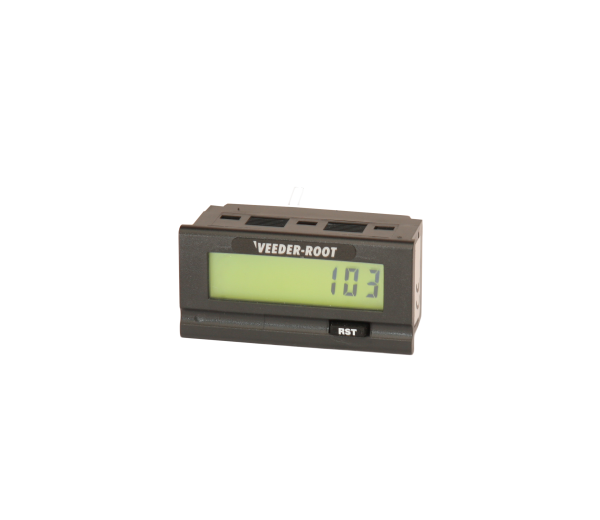

The A103-004 is a versatile panel-mounted control and indication device housed in a 36mm x 72mm DIN standard case, ideal for advanced rate measurement applications. It features an 8-digit supertwist LCD display that can be backlit with an external 10-28V DC power supply. The device incorporates an input scale factor, allowing calibration in engineering units such as gallons per minute or pieces per hour. Its plug-and-play design requires no programming, enabling quick installation. The unit supports both NPN & dry contact inputs for low-speed counting (up to 30Hz) and PNP or square wave signals for high-speed counting (up to 10kHz). Powered by one or two replaceable 3V lithium batteries, it ensures easy maintenance. With a NEMA 4X rating and high noise immunity, it is suitable for harsh industrial environments.
