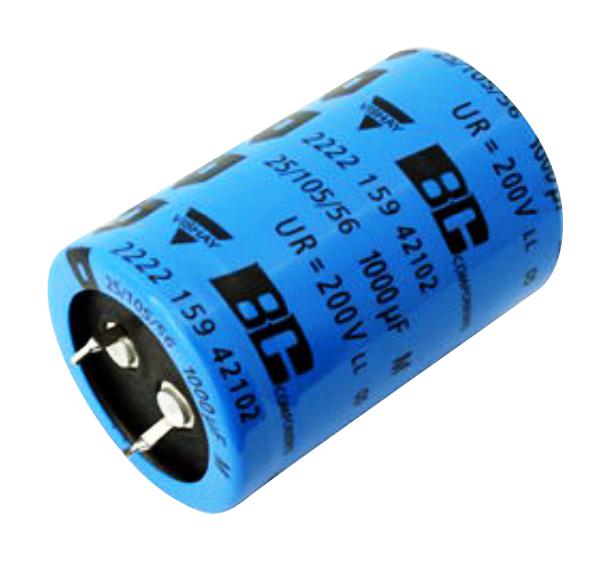

Vishay MAL225959391E3 Aluminum Electrolytic Capacitor
The Vishay BCcomponents PHM-SI series aluminum electrolytic capacitors feature a compact design with high ripple current capabilities and a useful life of 3000 hours at 105°C. Available up to 500V and RoHS compliant, these polarized capacitors are suitable for power supply filtering, motor controls, and industrial inverters. They come in two-terminal snap-in and three-terminal variants with various case sizes, dimensions, and electrical characteristics to meet diverse industrial and electronic applications, ensuring high reliability and efficient performance under demanding conditions.
Vishay MAL225959391E3 Aluminum Electrolytic Capacitor Specifications:
- Capacitance range: 39 UF to 2200 UF
- Rated voltage: 200 V to 500 V
- Temperature range: -40°C to +105°C
- Case sizes: 22 x 25 mm to 35 x 60 mm
- Material: Aluminum, non-solid electrolyte
- Long useful life: 3000 hours at 105°C
- Ripple current: Highly rated at 100 Hz, 105°C
- Endurance: 3000 hours at 105°C
- Leakage current: Max specified after 5 min at Up
- Climatic category: IEC 60068 40 / 105 / 56
- RoHS compliant, up to 500V options
- Available in snap-in mounting styles with 2 or 3 terminals
- Polarity: Keyed snap-in version, with negative terminal marked
- Additional electrical parameters: ESR, impedance at 10 kHz, specific dimensions and mass
Buy the Vishay Series PHM-SI Aluminum Electrolytic Capacitors: MAL225959391E3
Purchase the Vishay Series PHM-SI aluminum electrolytic capacitor now and enhance your power supply systems with high ripple current capacity and long life at elevated temperatures. These compact, RoHS-compliant capacitors are designed for demanding industrial environments, offering dependable filtering, smoothing, and filtering capabilities. Available in various case sizes, with both snap-in and three-terminal mounting options, they ensure versatile installation and reliable performance for power inverters, motor controllers, and power supplies. Order online now for quick delivery and optimal project performance.
Order your Vishay Series PHM-SI aluminum electrolytic capacitor today and secure reliable power filtration for industrial applications.
Frequently Asked Questions
Where can I buy Vishay MAL225959391E3?
You can click on the BUY or RFQ button to purchase MAL225959391E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL225959391E3?
You can download the MAL225959391E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL225959391E3?
Vishay
