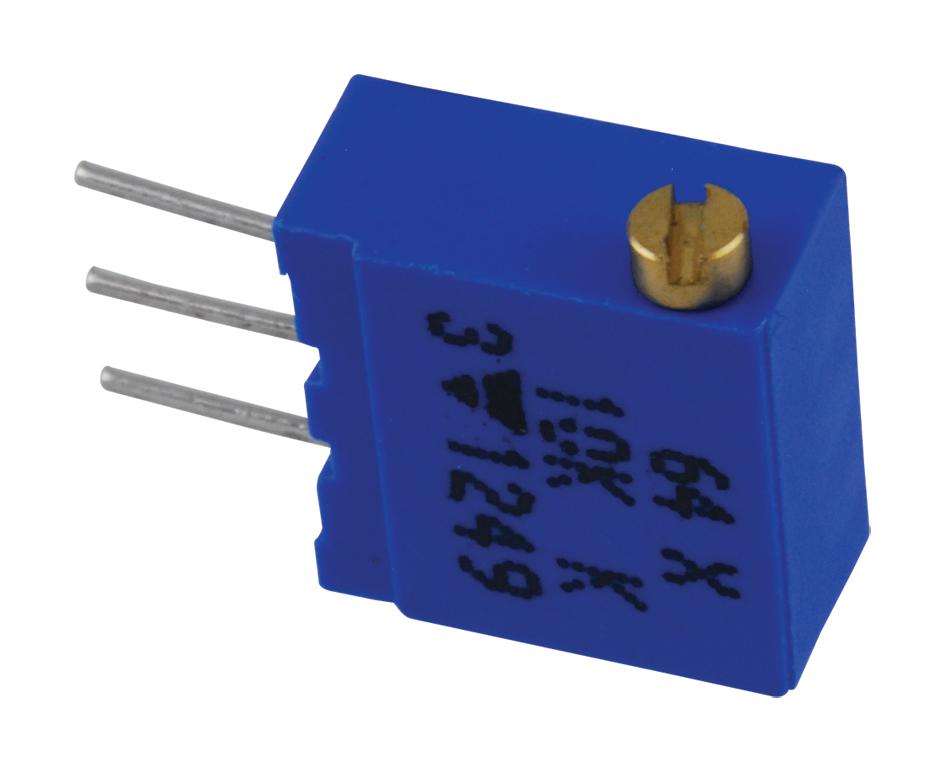

Vishay 064X103 Multi-Turn Cermet Trimmer
The Vishay Spectrol 3/8-inch Square Multi-Turn Cermet Trimmer is an industrial-grade, RoHS-compliant potentiometer designed for precise electronic adjustments on PC boards. It features a small footprint of 3/8
Vishay 064X103 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Electrical travel: 21 turns ± 2
- Resistance range: 10 Ω to 2.2 MΩ
- Tolerance: Standard 10%, on request 5%
- Power rating: 0.5 W at +70°C
- Temperature coefficient: See standard resistance element table
- Limiting element voltage: 250 V
- Contact resistance variation: < 1 %
- End resistance: Typical 12 Ω
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10^8 Ω at 500 Vdc
- Mechanical travel: 23 turns + 5
- Operating torque (max): 1.5 N·cm
- Sealing: Fully sealed IP67
- Temperature range: -55°C to +155°C
- Wiper position: Approx. 50% travel
- Terminal material: Tin-plated, pure Sn
- Dimensions: 3/8" x 3/8" x 3/16" (approx. 10 mm square footprint)
- Terminal spacing on PCB: 2.54 mm
- Weight: Approx. 0.82 g
Buy the Vishay Series 64 Multiturn Cermet Trimmer: 064X103
Order the Vishay Spectrol 3/8-inch Square Multi-Turn Cermet Trimmer online today. Perfect for precise electronic adjustments in industrial and PC board applications, it offers excellent stability with a high-quality cermet element. This fully sealed IP67 device supports a resistance range from 10 Ω to 2.2 MΩ, rated 0.5 W at +70°C. Its compact size makes it suitable for space-constrained environments, and RoHS compliance ensures environmental standards. Purchase now to improve your electronic design with reliable performance and durability.
Buy Vishay 064X103 multi-turn cermet trimmer now and ensure high stability and precise adjustment for your electronic applications.
Frequently Asked Questions
Where can I buy Vishay 064X103?
You can click on the BUY or RFQ button to purchase 064X103 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 064X103?
You can download the 064X103 datasheet or visit the Vishay website for support.
Who is the manufacturer of 064X103?
Vishay
