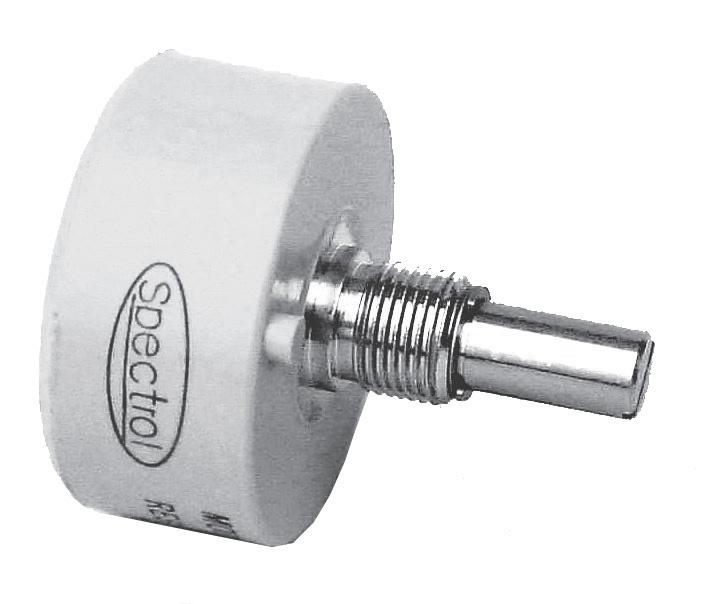

Vishay 13200202 Single Turn Wirewound Potentiometer
The Vishay Spectrol 132-0-0-202 is a robust, single-turn wirewound potentiometer designed for industrial applications. This potentiometer offers a bushing mount, continuous rotation, and a wide electrical angle, making it suitable for various control and adjustment tasks. It's constructed with a molded glass-filled thermoplastic housing, a stainless steel shaft, and brass terminals plated for solderability. The potentiometer's linearity and resistance tolerance are tailored for industrial environments, ensuring reliable performance in demanding conditions. It is ideal for applications requiring precise control and durability.
Vishay 13200202 Single Turn Wirewound Potentiometer Specifications:
- Sensor type: ROTATIONAL, single turn wirewound
- Output type: Output byturrets
- Market appliance: Industrial
- Dimensions: 15/16"(33.3 mm)
- Total Resistance Tolerance: 5 to 20 k, ± 3 % or ± 5 %
- Linearity (independent): ± 1.0 % (5 to 20), ± 0.5 % (200 and above)
- Noise: 100ENR
- Power Rating: 2.75 W at 40 °C (derated to zero at 125 °C)
- Electrical Angle: 352° ± 2° (continuous rotation)
- Insulation Resistance: 1000 M minimum at 500 VDC
- Dielectric Strength: 1000 VRMS, 60 Hz
- Absolute Minimum Resistance: 0.5 W or 1.0 % of total resistance
- Minimum Voltage: 0.5 % maximum
- Temperature Coefficient of Resistance: Refer to standard resistance element data
- Housing: Molded glass filled thermoplastic
- Shaft: Stainless steel, non-magnetic
- Terminals: Brass, plated for solderability
- Mount Hardware: Steel, nickel plated; Brass, nickel plated
- Vibration: 15 g thru 2000 Hz
- Shock: 50 g
- Salt Spray: 48 h
- Rotational Life: 500 000 shaft revolutions
- Operating Temperature Range: - 55 °C to + 125 °C
- Starting Torque: 1.0 oz.- in (72g- cm)
- Running Torque: 0.7 oz.- in (50.40g- cm)
- Shaft Runout (TIR): 0.002" (0.05 mm)
- Pilot Dia. Runout (TIR): 0.003" (0.08 mm)
- Lateral Runout (TIR): 0.005" (0.13 mm)
- Shaft End Play: 0.008" (0.20 mm)
- Shaft Radial Play: 0.003" (0.08 mm)
- Weight: 1.0 oz. maximum (28.35g)
